API Spec 6A Wellhead Equipment Studded Tees And Cross Studded Blocks For Oil Drilling
Product Description:
The Christmas tree is a device that controls the production of oil wells. It is composed of a variety of components such as pipe strings, tree bodies, butterfly valves, ball valves, and safety valves. The Christmas tree's big four-way is to connect these components. Studded Tees and Crosses are very important components for Wellhead Assembly Christmas Tree. They are assembled on the X-mas Tree where an angled connection is required. They are made from solid metal block. Our products are manufactured from forged alloy steel.
Common configurations include 4 way, 5 way, and 6 way crosses along with ells and tees with pressure ratings from 2,000 to 20,000 psi.
Our Integral Fittings are great for applications where an intersecting flow is needed. We could provide these with carious end connections, and meet the demand of standard or sour gas service.
Product Features:
1. Simple structure with reliable performance;
2. Our Integral Fittings are made from high grade steel, The basic material is usually AISI 4130 Alloy Steel or AISI410 Stainless Steel;
3. These products can be manufactured with various end connections;
4. Our Integral Fittings are suitable for both standard and sour gas service;
5. Studded/Flanged crosses and tees shall undergo hydrostatic body test and drift test as per API 6A standards prior to delivery;
6. Custom sizes and specifications are available upon request.

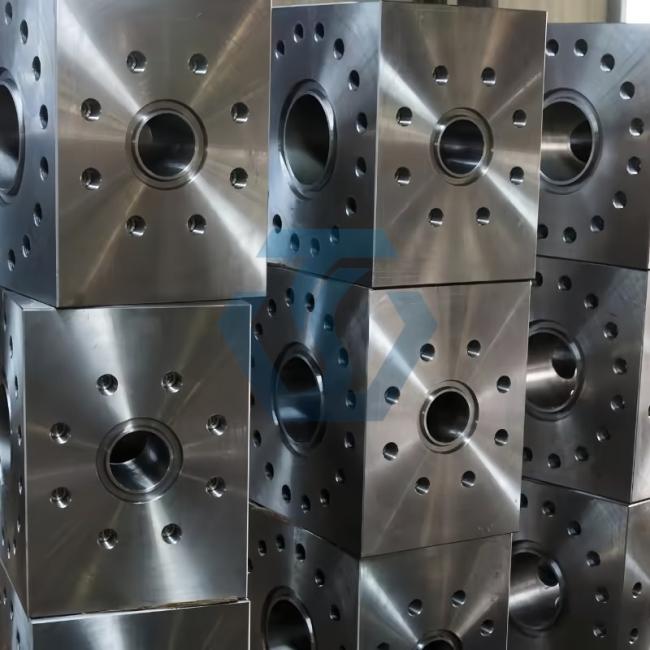

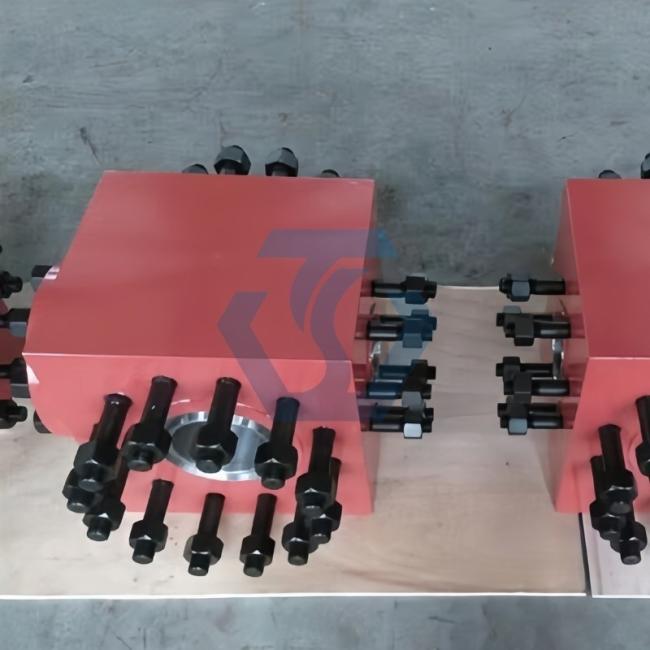

Product Display:
Product Application:
Oilfield Well Drilling , Energy , Mining.
Product Model Parameters:
| Type | Tee, Cross, Elbow, Crossover |
| Rated Working Pressure | 2000 psi ~ 20000 psi (14Mpa ~ 140Mpa) |
| Nominal Size | 1 ~ 4 in (25.4 ~ 101.6 mm) |
| Service | Standard, Sour Gas |
| Product Specification Level | PSL1 - PSL4 |
| Performance Requirement | PR1, PR2 |
| Application | Fracturing, Cementing, Acidizing, Testing Lines |

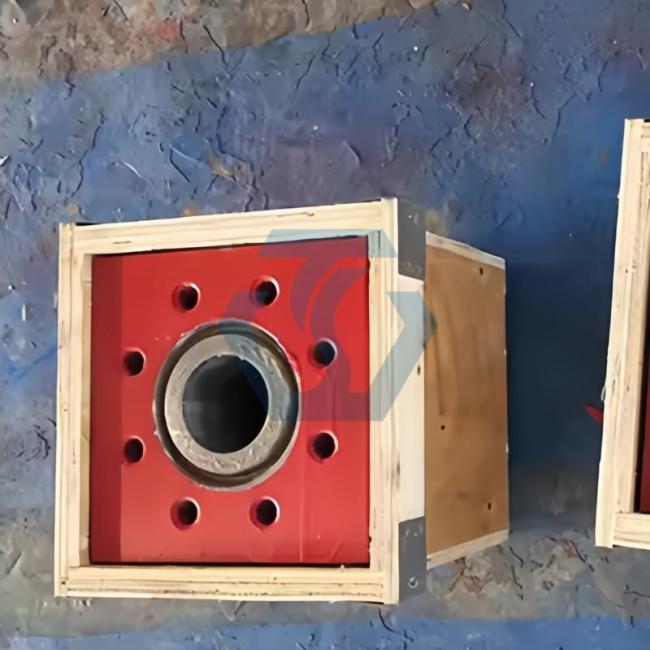

Product Package:
Iron box or iron frame , or customized according to customer requirements , or according to customer requirements.
Product Detection:
100% tested before delivery.
Product Delivery Method:
Express, truck , train , air , sea , or customized according to customer requirements.
