Oil Field Drilling Downhole Salvage Equipment Well Repair Tool Overshot API Standard

___________________________________________________

Product Overview

Overshot (salvage tube) is the core tool used to efficiently salvage drop fish in oilfield drilling and well repair operations (such as oil pipes, broken drill rods, weighted rods, long plumb hammers, tools, etc.). It uses high-strength alloy material and tile locking technology to quickly restore wellbore integrity and reduce operational risks through precise grasping and fixing functions. Adapting to a variety of casing specifications and complex well conditions is a key equipment to improve drilling efficiency and safety.

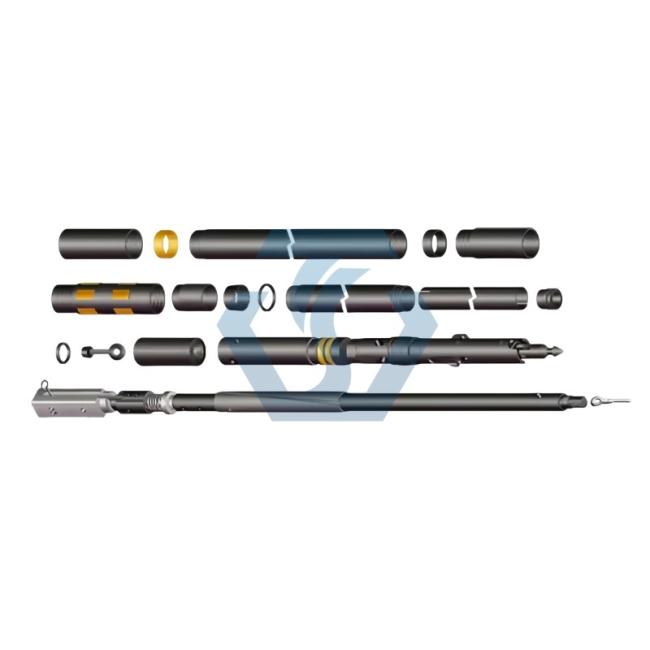

Structural composition: The salvage cylinder consists of an upper joint, cylinder, spring, caulking seat, caulking, shoe guide, etc., with a compact structure and easy to operate.

Product type: cava salvage cylinder, basket salvage cylinder, retractable salvage cylinder.

___________________________________________________

Working Principle‌

When the guide shoe of the salvage barrel is introduced into the dropping fish, lower the tool, push the tile upwards, compress the spring, so that the tile goes out of the cone hole of the barrel and gradually separates, and the tile enters the tile. Then, the kava is pressed down under the action of a spring, hugging the fish head and giving the fish head a preliminary clamping force. The drilling tool is raised upwards, and the cylinder body is upwards. Under the initial clamping force, the sash is fitted with the conical surface of the cylinder body, creating a greater clamping force, jamming the fallen fish and achieving salvage.

___________________________________________________

Core Functions And Features

      1.Efficient salvage design

• Gas locking mechanism: Built-in multi-piece gas and spiral springs, which are adaptively expanded and tightened to the outer wall of the fish through axial pressure, and the grip force can reach more than 300kN to ensure salvage stability.
• Modular structure: supports rapid replacement of consumable parts such as tiles and springs, adapted to API standard casing (5″-13⅜″), and is compatible with straight wells, horizontal wells and large incline well operations.

      2.High pressure resistance and corrosion resistance

• It is made of chromium molybdenum steel or nickel-based alloy, which withstands high temperature (-30℃ to 150℃), high pressure (up to 10,000psi) and acidic media environment, ensuring long-term downhole stability.

      3.Flexible adaptability

• It can be used with hydraulic disassembly rack (maximum torque of 300kN·m), continuous oil pipe (CTU) and other tools, supporting rapid deposition and recycling, reducing the number of drilling and downs, and improving operating efficiency by 40%.
• Different types of salvage barrels can adapt to various complex downhole working conditions and fall objects of different shapes and sizes.

      4.Intelligent monitoring module (optional)

• Integrate pressure sensor and data transmission unit to monitor salvage status and load parameters in real time, and warning abnormalities through ground system to reduce the risk of underground accidents.

___________________________________________________

Product Specifications

The Overshot products produced and sold by our company Huichi petro are diverse in specifications, covering various common fall sizes in oil fields. From smaller diameter tool drops to large drill pipes and oil pipes, there are corresponding specifications of salvage barrels to choose from. At the same time, special specifications of salvage tubes can be customized according to customers' special needs to meet the diverse oilfield salvage operation needs.

___________________________________________________

Main Technical Parameters

• Applicable casing type: API standard casing (J55, K55, N80, etc.)
• Working pressure: ≤10000psi
• Grab force range: 100-300kN (depend on Kawa specifications)
• Adaptation tools: hydraulic disassembly, continuous oil pipe system, shock absorber
• Material standards: Comply with API Spec 5B, ISO 9001 quality certification.

When ordering or requesting quotation, please specify:

· Type of overshot;

· OD. of fish to be caught;

· Size and type of top connection;

· If size other than standard, please specify clearly.

___________________________________________________

Product Advantages

1. Efficient rescue: Fishing can be completed in a single operation, reducing unplanned downtime and operating costs by 30%.
2. Strong compatibility: The salvage barrel is suitable for fishing with different diameters. Just replace different kashii with the permission of the barrel to salvage fishing with different sizes. It is adapted to mainstream drilling platforms (such as Jerry drilling and repair equipment) and well repair equipment, and supports complex well types such as straight wells and horizontal wells.
3. Safety and reliability: Passed HSE certification, the anti-slip design of kava avoids the risk of secondary fishing, and ensures operational safety.

___________________________________________________

Notes

• When using a salvage barrel for salvage operations, check whether the specifications of the salvage barrel match the size of the fishing barrel to ensure the salvage effect.
• Slowly drop it when salvaging, and it is strictly forbidden to ensure that the cava is intact and the fish is in the fish.
• When unblocking, drilling or turning upside down, it is not allowed to exceed the allowable range to ensure the safe use of the salvage barrel.

___________________________________________________

Application scenarios

Salvage barrels are widely used in drilling, well repair and other operations in oil fields. Salvage barrels are suitable for salvage of various oil pipes, drilling rods, weighted rods, long plumbs and other cylindrical fishing. They have a wide range of salvage and can encounter jammed pipe columns. Apply torque to reverse.

• Salvage operation: Remove the broken drilling rods, tools, etc. from the well and restore the drilling continuity.
• Well repair and rescue: Use shock absorbers, shoe grinding and other tools to deal with drilling or casing deformation problems.
• Discarded well sealing: Accurately recycle the discarded casing to facilitate subsequent cement sealing and environmentally friendly treatment.

___________________________________________________

After-sales Service

• Provides 24-hour global technical support and operation training, covering major oil production in the Middle East, North America, Southeast Asia and other countries.
• Replace non-human damaged parts for free during the warranty period, and provide customized salvage plan design services.

___________________________________________________

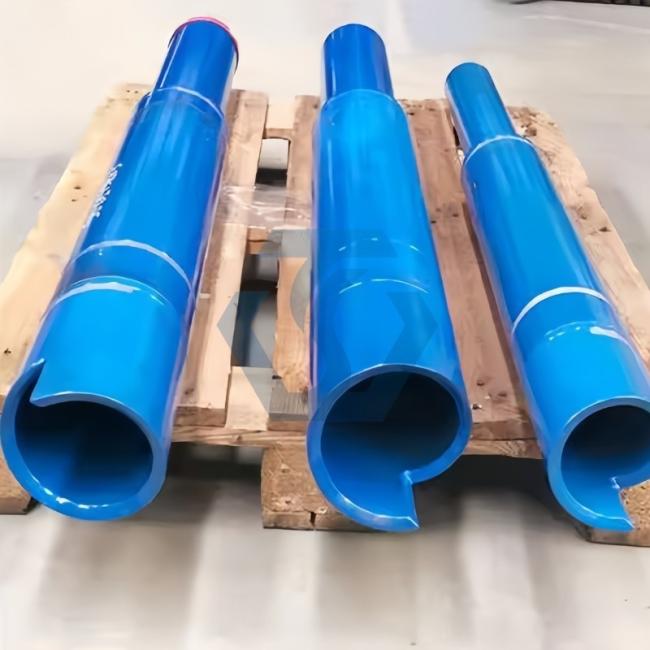

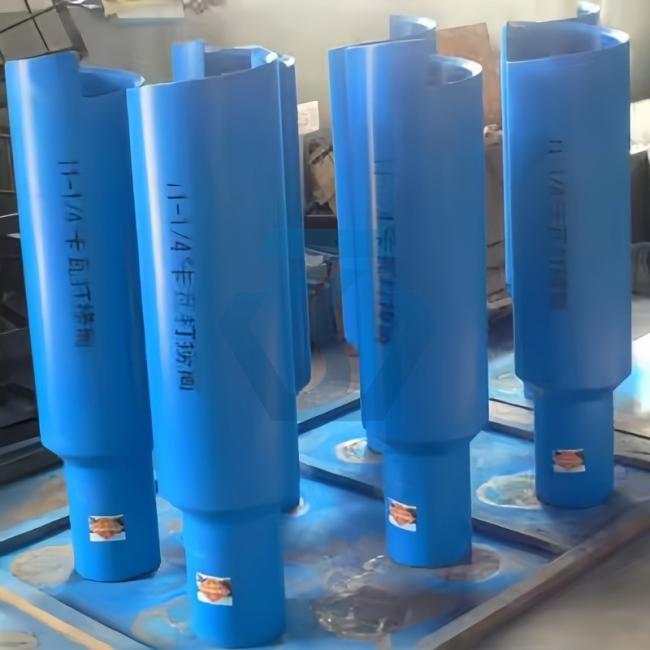

Product display:

________________________________________

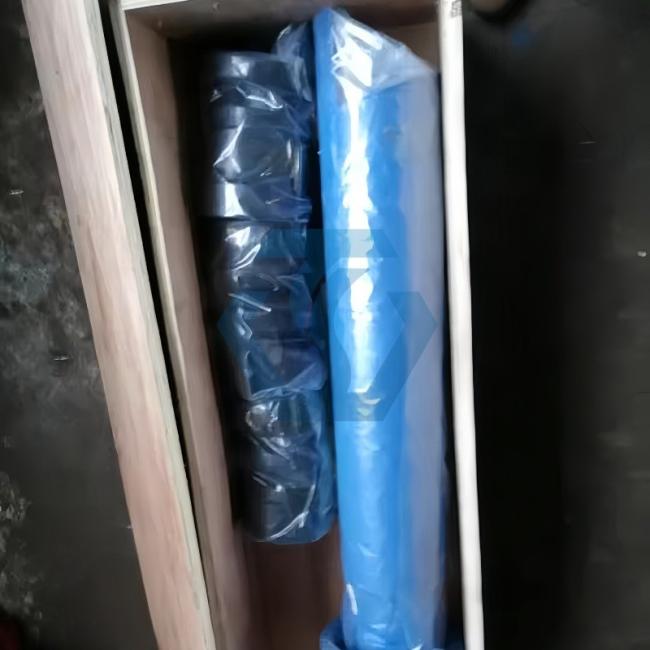

Product package:

Product packaging: iron box or iron frame, wooden pallet, wooden box, bulk or customized according to customer requirements.

________________________________________

Product detection:

100% inspection will be carried out before shipment, and video image data and inspection reports will be provided.

________________________________________

Accepted delivery terms:

FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
