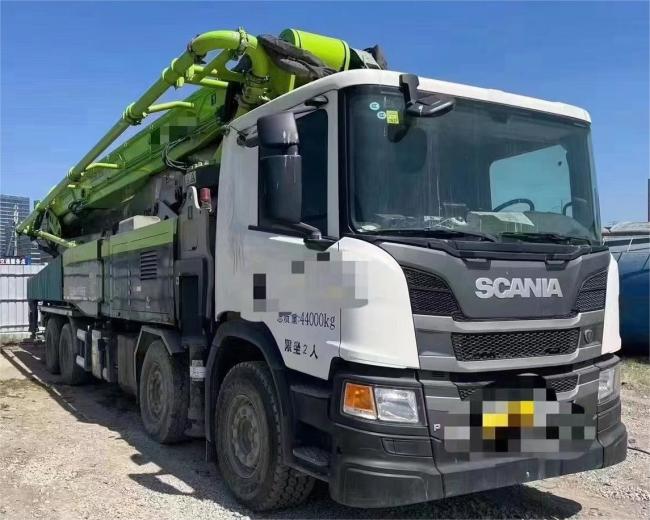

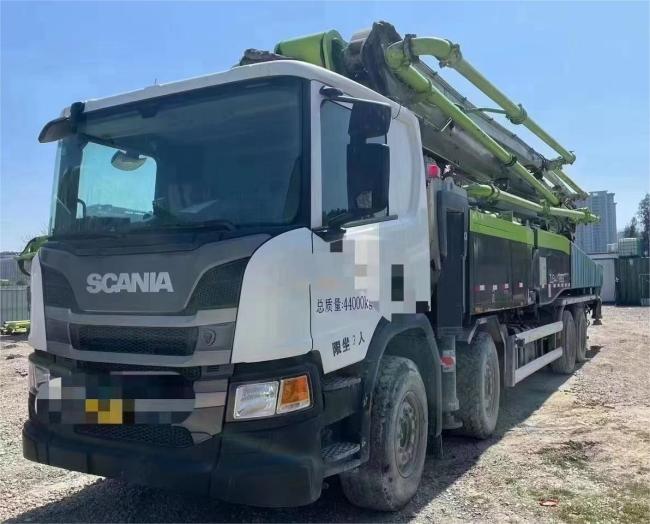

National VI 2020 Zoomlion Shandeka Scania 49m 56m Used Concrete Mixer Pump Truck Diesel Fuel

The technical parameters of the concrete pump truck describe its performance and function. The following are common concrete pump truck technical parameters and their meanings:

• Using advanced hydraulic system and pumping technology, Zoomlion pump truck can transport concrete from the mixer or mixing station to the construction site. Through a series of hydraulic pumps, hydraulic cylinders and hydraulic valves and other components, the concrete is pumped from the hopper of the pump truck into the delivery pipe, and then pumped to the desired location.

• Zoomlion pump trucks have a variety of models and specifications to adapt to different engineering needs. They offer different pumping heights and pumping distances to suit different types of engineering projects. Zoomlion pump trucks can also be equipped with different lengths and diameters of pipelines to meet the requirements of different sites.

• Zoomlion pumps also focus on safety and reliability. They are usually equipped with overload protection devices, protective nets and other safety features to ensure the safety of the operator and the site. In addition, Zoomlionpump trucks also pay attention to maintenance and maintenance, providing corresponding maintenance guidelines and support to ensure the long-term performance and life of the pump trucks.

Product Description:
 ​

NO	Name	Parameter
Vehicle parameters
1	Total length	11950mm
2	Overall width	2530mm
3	Total height	4000mm
4	All up weight	35000kg
Pumping system parameters
	Maximum Height	48.6m
	Maximum Radius	43.6m
	Maximum Depth	34.6m
	Concrete theoretical displacement low pressure	180m³/h
	Concrete theoretical displacement high pressure	125m³/h
	Theoretical pumping pressure low	8.3Mpa
	Theoretical pumping pressure High pressure	12Mpa
	Conveying cylinder inner diameter:	260mm
	Cylinder stroke	2100mm
	Hydraulic system	Open type
	System oil pressure	32Mpa
	Tank volume	900L
	Tank volume	700L
	Conveying pipe diameter	125mm
	End hose length	3m
	End hose pipe diameter	125mm
Chassis parameter
	Chassis brand:	Sinotruk Shandeka
	Emission standard	Country VI
	Fuel tank capacity	600L
	Displacement:	12.94L
	Maximum speed	90km/h

​
