Plywood Passive Dj Speakers 15 Inch 12 Inch 10 Inch Customized
Price:
$80.00 - $900.00/pieces
MOQ:
2 pieces
Delivery Time:
Negotiable
Brand:
VATASA
Product Description
Product Description
High quality 10 inch 12 inch 15 inch passive dj speakers
Specification
|
|
VS-10P
|
VS-12P
|
|
Power Handling(AES)
|
300W
|
400W
|
|
Nominal Impedance
|
8Ω
|
8Ω
|
|
Average Sensitivity(1w/1m)
|
96dB
|
97dB
|
|
Maximum SPL
|
125dB(continuous)128dB(program)
131dB(peak)
|
128dB(continuous)131dB(program)
134dB(peak)
|
|
Frequency Response
|
55Hz-18.5kHz(±3dB)
50Hz-19.5kHz(-10dB)
|
55Hz-18kHz(±3dB)
50Hz-19.5kHz(-10dB)
|
|
Nominal Directivity(-6dB)
|
80°(H) x60°(V) constant directivity
|
100°(H) x70°(V) constant directivity
|
|
Recommended Amplifier
|
600W
|
800W
|
|

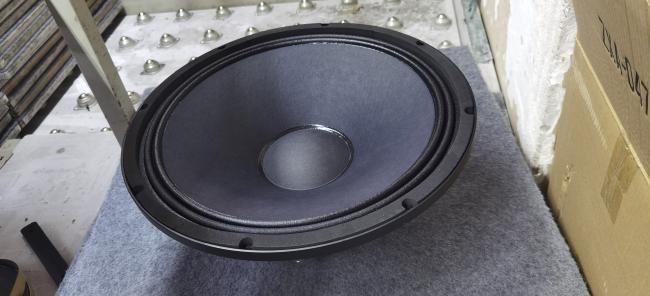

LF Driver
|
1x10" 65 core driver
|
1x12" 75 core driver
|
|

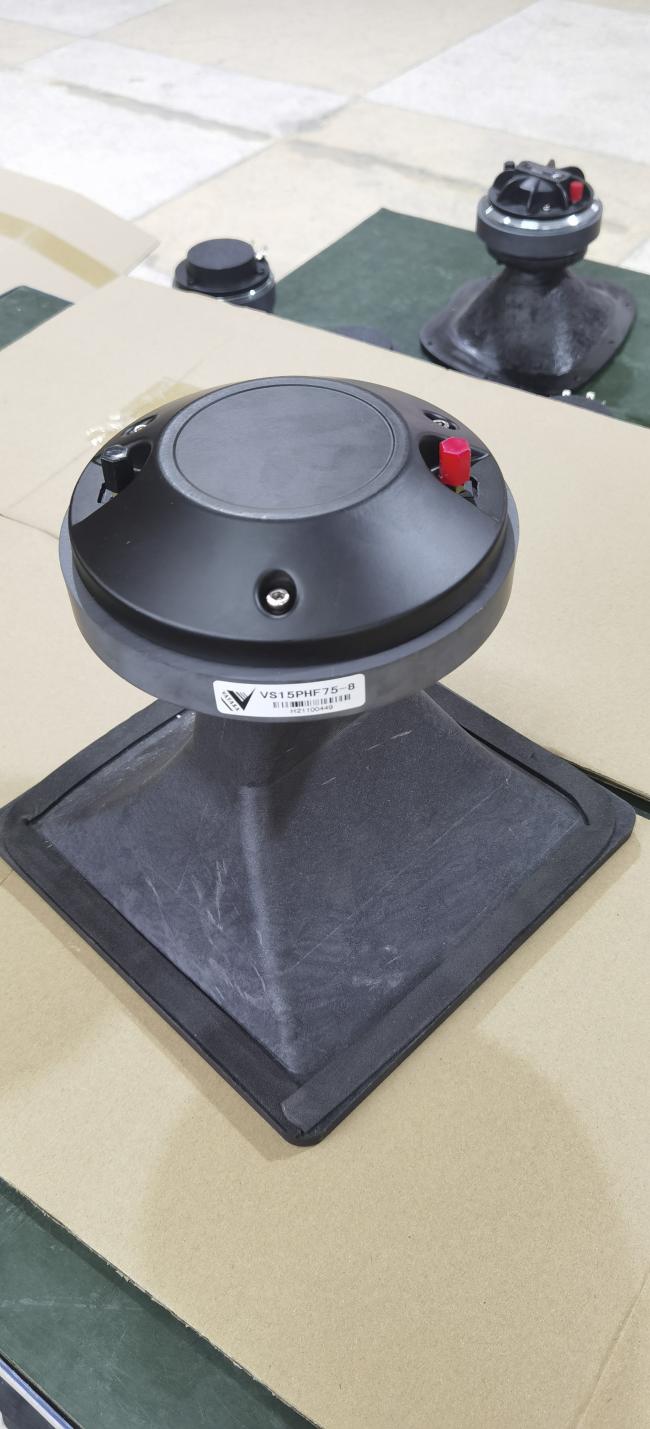

HF Driver
|
1x1.75" compression driver
|
1x1.75" compression driver
|
|
N.W
|
16.2KG
|
21kg
|
|
G.W
|
18.6KG
|
23.8kg
|
|
Cabinet size(w*h*d)
|
346*495*316mm
|
388x573x356mm
|
|
Package size(w*h*d)
|
390*575*430mm
|
465x663x465mm
|
|
|
VS-15P
|
VS-215P
|
|
Power Handling(AES)
|
420W
|
650W
|
|
Nominal Impedance
|
8Ω
|
4Ω
|
|
Average Sensitivity(1w/1m)
|
98dB
|
100dB
|
|
Maximum SPL
|
129dB(continuous)132dB(program)
134dB(peak)
|
130dB(continuous)133dB(program)
136dB(peak)
|
|
Frequency Response
|
55Hz-19KHz(±3dB)
|
55Hz-19KHz(±3dB)
|
|
Nominal Directivity(-6dB)
|
100°(H) x70°(V) constant directivity
|
110°(H) x70°(V) constant directivity
|
|
Recommended Amplifier
|
600W/800W
|
800W
|
|
LF Driver
|
1x15" driver
|
2x15" driver
|
|
HF Driver
|
1x3" compression driver
|
1x3" compression driver
|
|
N.W
|
33.6kg
|
43.8kg
|
|
G.W
|
36.8kg
|
47.5kg
|
|
Cabinet size(w*h*d)
|
470x691x441mm
|
472x1083x440mm
|
|
Package size(w*h*d)
|
546x780x523mm
|
588x1205x552mm
|
