200V - 240V Class D Sound Digital Power Amplifier Customized
Price:
$470.00 - $2,040.00/pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
VA
Product Description
Product Description

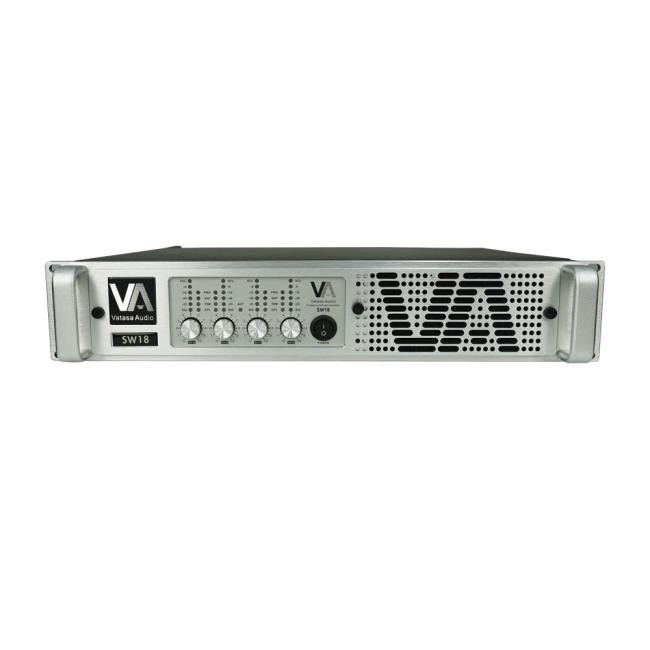

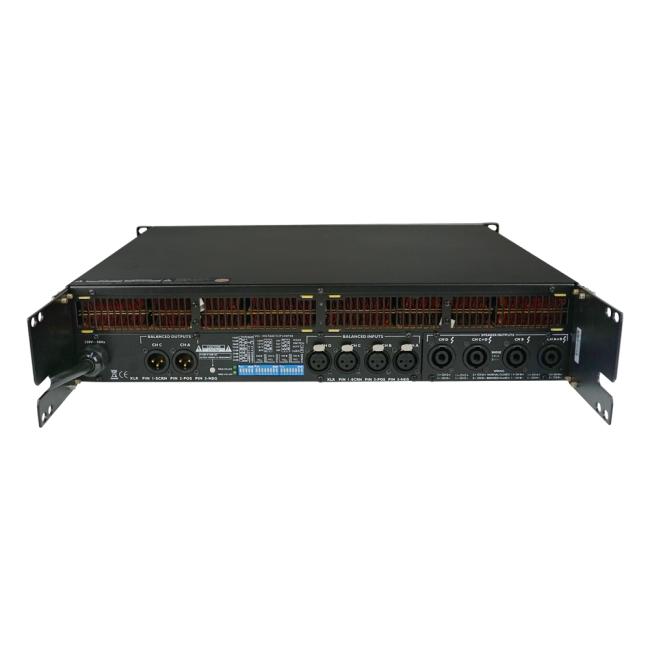

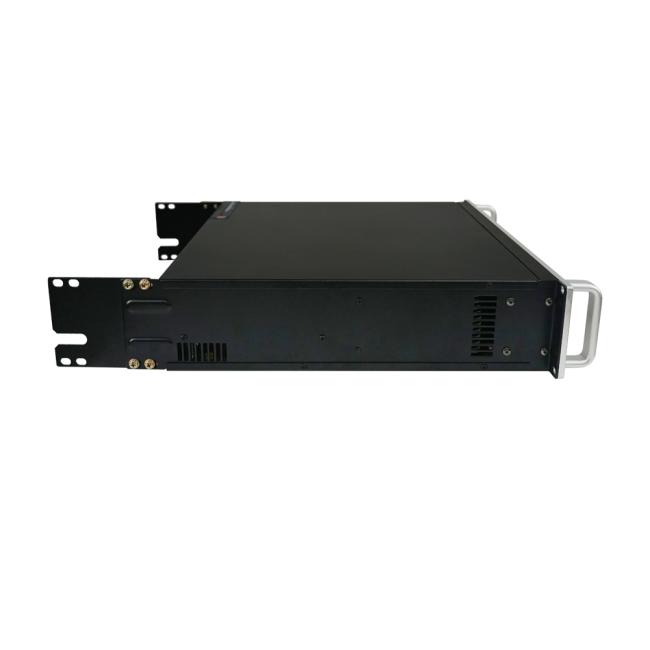

VA professional 4*1350W 2*2350W power amp class d sound digital power amplifier
Product description:
The SW series adopts a new type of frequency modulation and width regulation technology to obtain more dynamic power. The original imported plastic tube provides higher fidelity sound quality, which is completely suitable for mobile performances. It is a product with small size, low weight, high efficiency and high power.
The SW series adopts a new type of frequency modulation and width regulation technology to obtain more dynamic power. The original imported plastic tube provides higher fidelity sound quality, which is completely suitable for mobile performances. It is a product with small size, low weight, high efficiency and high power.
Features:
Original imported plastic tube, providing higher and more fidelity sound quality
New wide frequency modulation and voltage stabilization technology to obtain greater dynamic power
Double-layer copper ribbon heat sink of short-travel air duct,it can quickly reduce the operating temperature of the transistor
Imported brand of Neutrik signal input and output connectors
Complete protection system include thermal shutdown,electrical short and overload,permanent protection for high frequency
No relay output protection to ensure uninterrupted audio signal output
High resolution and high fidelity sound quality
Original aluminum color drawing process make the appearance novel
Original imported plastic tube, providing higher and more fidelity sound quality
New wide frequency modulation and voltage stabilization technology to obtain greater dynamic power
Double-layer copper ribbon heat sink of short-travel air duct,it can quickly reduce the operating temperature of the transistor
Imported brand of Neutrik signal input and output connectors
Complete protection system include thermal shutdown,electrical short and overload,permanent protection for high frequency
No relay output protection to ensure uninterrupted audio signal output
High resolution and high fidelity sound quality
Original aluminum color drawing process make the appearance novel
Specification
|
|
SW18
|
SW19
|
|
|
Power handling
|
1350W*4(8Ω)/2200W*2(4Ω)
|
2350W*2(8Ω)/4350W*2(4Ω)
|
|
|
Power gain selection
|
23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, 44dB
|
|
|
|
Intput interface
|
XLR-f
|
XLR-f
|
|
|
Output interface
|
XLR-m
|
XLR-m
|
|
|
Input impedance
|
20kΩ/Balanced,10kΩ/un-Balanced
|
20kΩ/Balanced,10kΩ/un-Balanced
|
|
|
Distortion
|
＜1%
|
＜ 1%
|
|
|
Frequency response
|
20Hz-25kHz, ±1dB
|
20Hz-25kHz, ±1dB
|
|
|
Power supply
|
AC: 200-240V 50Hz-60Hz
|
AC: 220-230V 50Hz
|
|
|
NW(kg)
|
14
|
12.4
|
|
|
G.W(KG)
|
17.5kg
|
|
|
|
Size(l*w*h)
|
483*377*88mm
|
482*326*88mm
|
|
|
Package Size(l*w*h)
|
630*610*150mm
|
|
|
