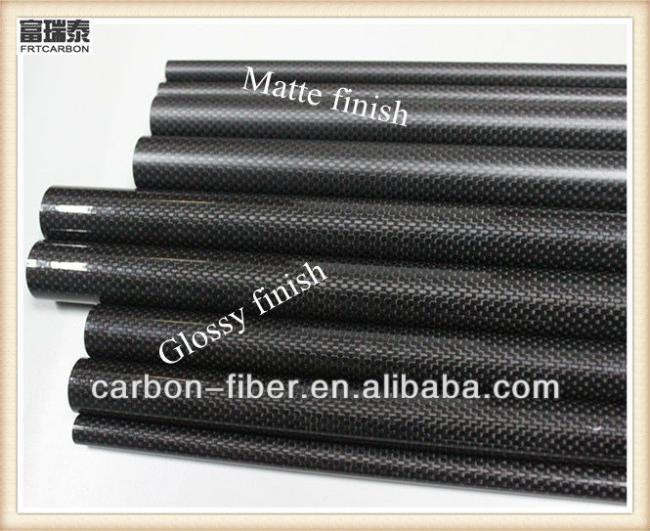

4 Inch 5 Inch 6 Inch Carbon Fiber Tube Tail Boom Carbon Arm Glossy Matte Finish For Rc Model
carbon boom carbon fiber tail boom carbon arm( with glossy or matte finish for rc model)

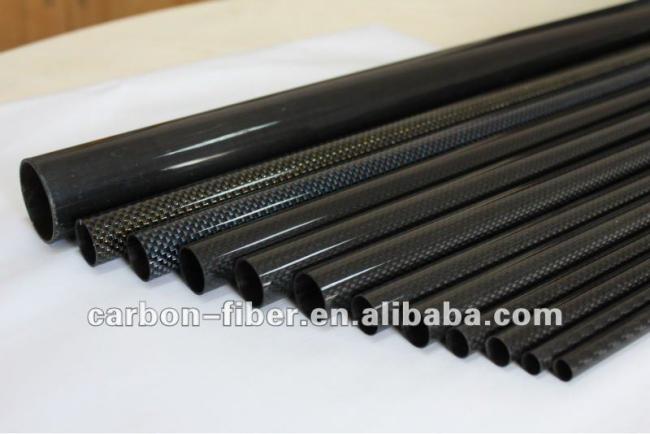

Item Name: carbon fiber boom, carbon fiber tubes ,carbon fiber telescopic tube pipes poles shaft(roll wrapped) and be partable and tapered .
Application for handle tools, rc copter,window cleaning poles, gardening tooling,arrow shaft, telescopic poles, tool rod
Features:
Specification:
we can supply custom dimensions (ID*OD.*LENGTH),thickness,strength according to what customer's need.
Please refer to the following specifications:
| FRT CARBON--Round Roll Wrapped Tube Specification Table | |||
| Item NO: | O.D.*I.D.*L(MM) | Wall Thickness(MM) | Material |
| FRT-RWT-001 | 6*4*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-002 | 7*5*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-003 | 8*6*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-004 | 9*7.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-005 | 10*8*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-006 | 11*9*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-007 | 12*10*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-008 | 13*11*1300 | 1mm | Pure Carbon Fiber |
| FRT-RWT-009 | 14*12*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-010 | 15*13*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-011 | 16*15*1000 | 0.5mm | Pure Carbon Fiber |
| FRT-RWT-012 | 16*14*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-013 | 18*16*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-014 | 20*18*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-015 | 22*20*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-016 | 25*23*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-017 | 25*19*1000 | 3mm | Pure Carbon Fiber |
| FRT-RWT-018 | 22*19.5*1000 | 0.75mm | Pure Carbon Fiber |
| FRT-RWT-019 | 25*22*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-020 | 30*28*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-021 | 35*32*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-022 | 40*38*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-023 | 43*41*1000 | 1.5mm | Pure Carbon Fiber |
| FRT-RWT-024 | 46*44*1000 | 1mm | Pure Carbon Fiber |
| FRT-RWT-025 | 53*50*1000 | 1.5mm | Pure Carbon Fiber |
| please contact us for more specifications | |||

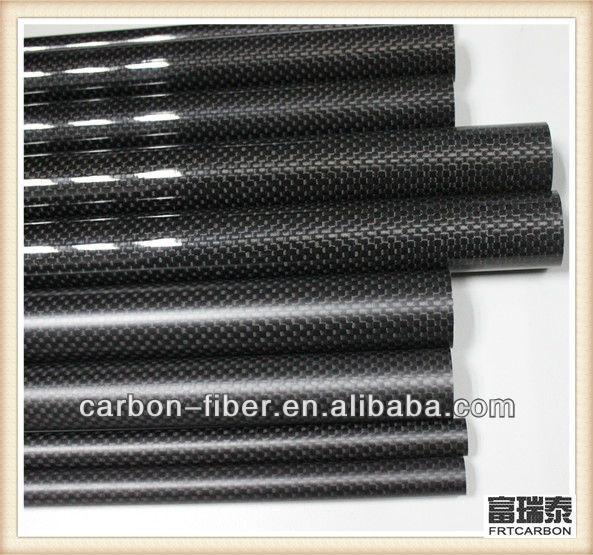

woven carbon fiber tube ---Glossy and matte:
Performance:
|
|
Applications:
|
|
