Multifunctional Aircraft Hangar Buildings ODM Prefab Metal Office Buildings
Conventional Multifunctional Steel Structure Building Airport Hangar
Description
The steel structure of the airport is to reduce the weight, so that the span of the airport is larger, the capacity is large, and the flow of people is evacuated quickly. At the same time, the building steel strength is high, the plastic toughness is good, the material is uniform and the mechanical calculation assumption is more in line with, the rigid structure is simple to manufacture, the construction period is short, the steel structure corrosion resistance is poor, the steel structure compactness is good and the steel structure is more seismic, more safe.
Advantage
(1) The hangar assembly time is short. Once the structural design of the steel hangar is completed and the foundation is ready, it can be built in a very short time.
(2) The appearance color can be changed according to personal preferences, and different appearance colors can be selected for different purposes.
(3) High strength, light weight. The strength of steel is very high, and the weight of steel structure is small, so it can be made into a long-span structure.
(4) Plasticity and toughness. The steel has good plasticity and toughness, making the structure more adaptable to dynamic loads.
(5) Reliability. The internal structure of the steel is uniform, and the structural reliability is high.
(6) Weldability. Due to the weldability of steel, the connection of steel structure is greatly simplified, and it is suitable for the manufacture of various complex shapes.
(7) Tightness. The internal structure of steel is very dense. When welding joints, even if rivets or bolts are used, it is easy to be tight and leak-free.
| Length | Single slope, double slope, muti slope |
| Width | Single span, double-span, Multi-span |
| Height | single floor, double floors |
| Column | Q235, Q345 welded H section steel |
| Beam | Q235, Q345 welded H section steel |
| Purlin | Q235 C channel or Z channel |
| Knee brace | Q235 angle steel |
| Vertical and transversal support | Q235 angle steel, round bar or steel pipe |
| Tie bar | Q235 steel pipe |
| Brace | Q235 round bar |
| Cladding system | EPS, PU, Fiberglass rockwool sandwich panels or corrugated steel sheet with fiber glass wool insulation. available in Diferent colors&gauge |
| Partition wall | sandwich panels (EPS, PU, Fiber glass wool etc.) available in Diferent colors&gauges |
| Door | sandwich panel sliding door or roller door |
| Gutter | stainless steel or color steel sheet |
| Rainspout: | PVC |
| Live load on roof | In 120kg/Sqm (Color steel panel surrounded) |
| Wind resistance grade | 12 grades |
| Earthquake-resistance | 8 - 9 grades |
| Structure usage | Up to 50 years |
| Finishing options | vast array of colors and textures available |
| Paint Options | Gray paint, red paint, white paint, expoxy zinc etc. Or Galvanized |

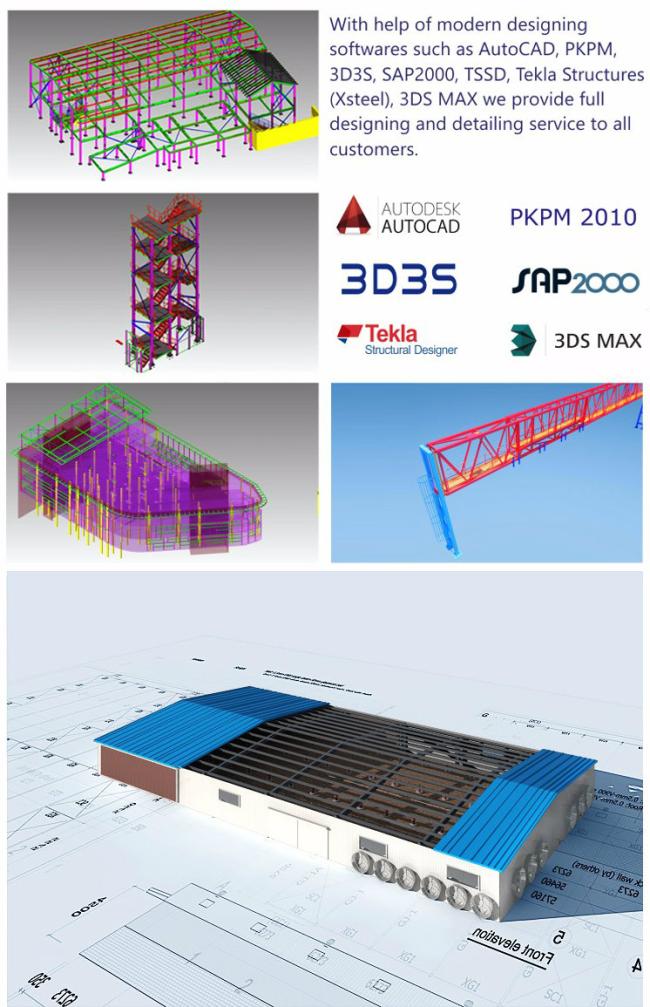

Design
