Small Size Mercury Slip Ring 1 Circuit 150A Current Maintenance Free

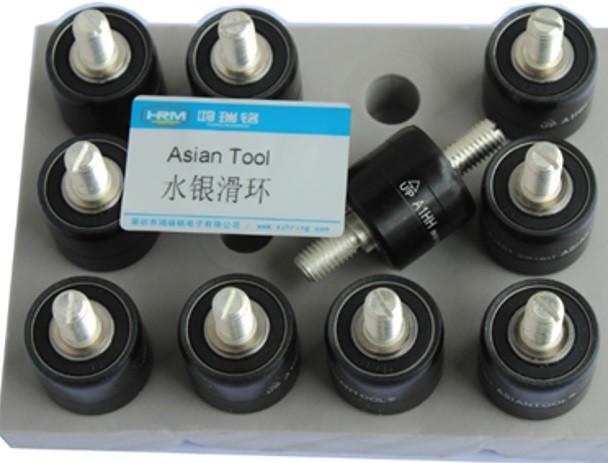

Taiwan Asiantool A1HH Mercury Slip Ring 1 circuit 150A current
Features:
● Asiantool Mercury slip ring is made of special sealing, insulation and conductive technology, shell is aluminum alloy or stainless steel;
● suitable for any rotating body signal and power connection such as small voltage, current, thermocouple, EMF, Strain gauge, audio signal, high frequency signal;
● no noise, contact resistance less than 1m Ω;
● maintenance free, more durable than traditional slip ring;
Typical application:
Horizontal copper plated wire, rotating silver plated wire rotating stage lamp, computer lamp rotating camera, rotating light box, camera, cable tube inside circular screen tube, rotary antenna, robot arm of conductor device, heating roller wheel, rotary joint.
Part Number:
| 型号 Model |
极数 Conductor Poles |
电流 Current Amp. | 耐压 Voltage AC/DC V | 频率 Max. Freq. MHZ | 最大转速 Max. RPM | 使用温度 Operating Temp. ℃ | 转矩(gm-cm) Rotating Torque |
绝缘阻抗 Insulation Resistance |
| A1M | 1 | 1极10A | 200 | 3600 | 5~60 | 35 | ||
| A1MT | 1 | 1极10A | 200 | 3600 | 5~60 | 35 | ||
| A1M2 | 1 | 1极20A | 200 | 2000 | 5~60 | 35 | ||
| A2S | 2 | 2极4A | 500 | 200 | 2000 | 5~60 | 75 | >25MΩ |
| A3S | 3 | 3极4A | 500 | 200 | 1800 | 5~60 | 100 | >25MΩ |
| A2H | 2 | 2极30A | 500 | 200 | 1800 | -10~60 | 200 | >25MΩ |
| A3M | 3 | 1极30A,2极4A | 500 | 200 | 1800 | -10~60 | 200 | >25MΩ |
| A3H | 3 | 3极30A | 500 | 200 | 1200 | -10~60 | 400 | >25MΩ |
| A4H | 4 | 2极30A,2极4A | 500 | 200 | 1200 | -10~60 | 400 | >25MΩ |
| A6H | 6 | 4极30A,2极4A | 500 | 100 | 300 | -10~60 | 700 | >25MΩ |
| A8H | 8 | 6极30A,2极4A | 500 | 100 | 200 | -10~60 | 1000 | >25MΩ |
| A1HH | 1 | 1极150A | 200 | 1200 | -10~60 | 250 | ||
| A1H25S | 1 | 1极250A | 200 | 1200 | -10~60 | 400 | ||
| A1H25PS | 1 | 1极250A | 200 | 1200 | -10~60 | 400 |
We Haurem company have obtained certificates of CE, RoHs, MSDS and ISO9001,with a skilled management team, advanced technology, first-class production & inspection equipments as well as a strict quality control system,we will make best efforts to explore more new products to satisfy global customers with the best quality,price and service.
According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
