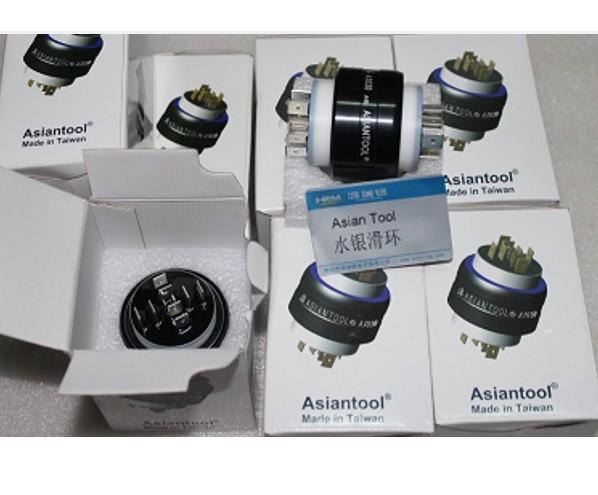

10 Circuits Mercury Slip Ring
Price:
Negotiable
MOQ:
1
Delivery Time:
2 weeks ARO
Brand:
Asiantool
Product Description
| 型号 Model |
极数 Conductor Poles |
电流 Current Amp. | 耐压 Voltage AC/DC V | 频率 Max. Freq. MHZ | 最大转速 Max. RPM | 使用温度 Operating Temp. ℃ | 转矩(gm-cm) Rotating Torque |
绝缘阻抗 Insulation Resistance |
| A1M | 1 | 1极10A | 200 | 3600 | 5~60 | 35 | ||
| A1MT | 1 | 1极10A | 200 | 3600 | 5~60 | 35 | ||
| A1M2 | 1 | 1极20A | 200 | 2000 | 5~60 | 35 | ||
| A2S | 2 | 2极4A | 500 | 200 | 2000 | 5~60 | 75 | >25MΩ |
| A3S | 3 | 3极4A | 500 | 200 | 1800 | 5~60 | 100 | >25MΩ |
| A2H | 2 | 2极30A | 500 | 200 | 1800 | -10~60 | 200 | >25MΩ |
| A3M | 3 | 1极30A,2极4A | 500 | 200 | 1800 | -10~60 | 200 | >25MΩ |
| A3H | 3 | 3极30A | 500 | 200 | 1200 | -10~60 | 400 | >25MΩ |
| A4H | 4 | 2极30A,2极4A | 500 | 200 | 1200 | -10~60 | 400 | >25MΩ |
| A6H | 6 | 4极30A,2极4A | 500 | 100 | 300 | -10~60 | 700 | >25MΩ |
| A8H | 8 | 6极30A,2极4A | 500 | 100 | 200 | -10~60 | 1000 | >25MΩ |
| A1HH | 1 | 1极150A | 200 | 1200 | -10~60 | 250 | ||
| A1H25S | 1 | 1极250A | 200 | 1200 | -10~60 | 400 | ||
| A1H25PS | 1 | 1极250A | 200 | 1200 | -10~60 | 400 |
We Haurem company have obtained certificates of CE, RoHs, MSDS and ISO9001,with a skilled management team, advanced technology, first-class production & inspection equipments as well as a strict quality control system,we will make best efforts to explore more new products to satisfy global customers with the best quality,price and service.
According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
