PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine

Price Negotiable
Price: US$43000
MOQ: 1 set
Delivery Time: Negotiable
Brand: HSD
Product Description

Product Description

PE HDPE Plastic Waterproof Geomembrane Agricultural Film Sheet Making Machine



Description of the production:
Water-proof Coiled Material/GEO-membrance Film Extrusion Line is a super-large water-proof Coiled material. The mainly material for the film is various kinds of polymer, such as PE, PP, PET, PVC, EVA etc. The max width is 8000mm, the thickness from 0.1 to 3.0mm. In order to meet different customers with different requirements, other auxiliary equipment could be arranged.

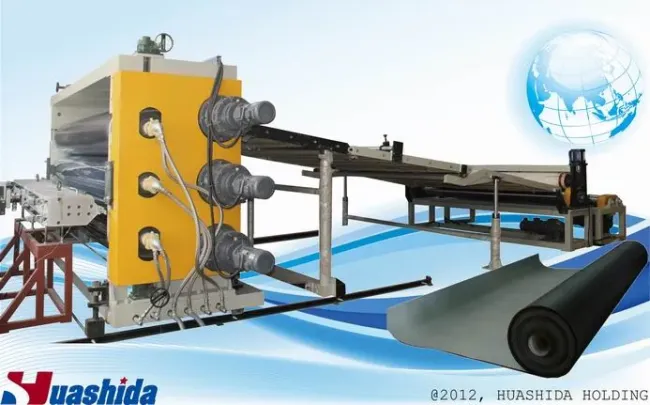

Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line


Brief introduction of geomembrane

Geomembranes are specialized double-surface membranes made from virgin resin, known for their excellent impermeability, antifouling properties, and mechanical strength. They maintain dimensional and chemical stability, while also offering thermal and aging resistance, as well as protection against UV radiation. With a high friction coefficient, geomembranes provide effective skid resistance, making them suitable for sloped surfaces. Their enhanced bearing capacity improves structural support, making them ideal for landfill construction and projects that require earth-covered slopes. Overall, geomembranes are essential for ensuring reliable waterproofing and stability in various applications.


Application:
Mainly used in the landfill plant, waste water treatment plants, subway project, tunnel construction, artificial lake, industrial water-proof and other projects.

GEO-membrance film characteristics:
1.Width and thickness can be adjusted by online set.
2. High strenght and thoughness.
3. Excellent stress cracking resistance.
4. Large temperature range.
5. Easy operation for construction.
6. Other undergound works and complex terrain.
Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line


Composition of production line

- Extruder:
PP/PE high efficiency single screw extruder,  the extruding part adopts the forced water-cooled feeding section, the machine cylinder is grooved, and the power consumption of the main drive motor is greatly reduced. Large length to diameter ratio, better adaptability to materials, better plasticizing effect.
Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line

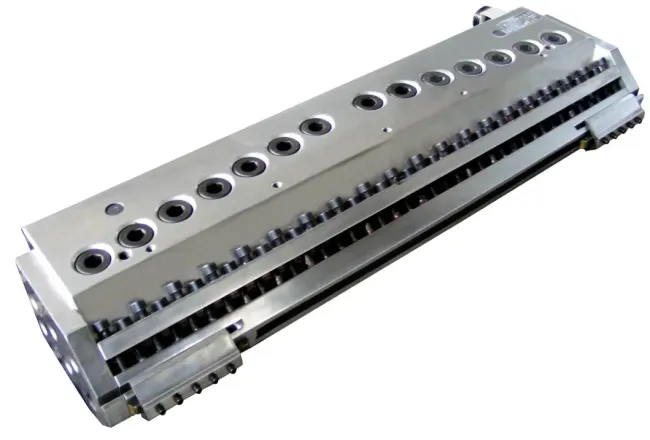

- Die-head
Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line

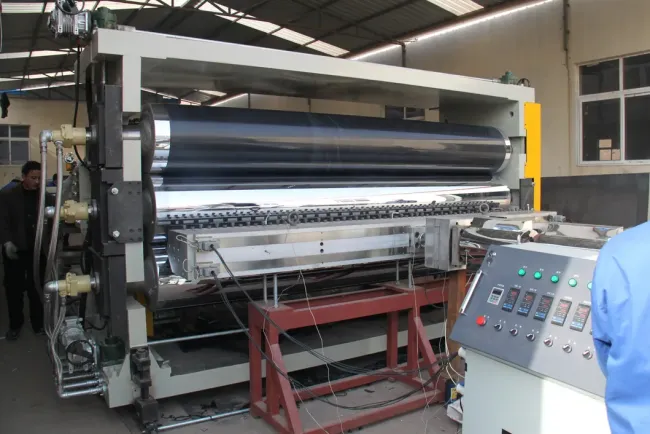

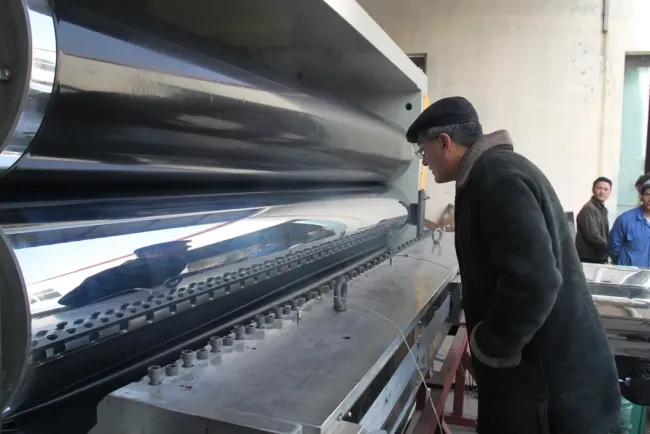

- Three-roll calender
Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line

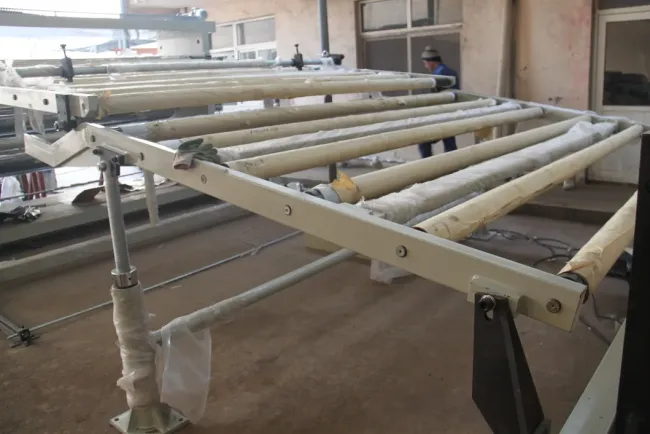

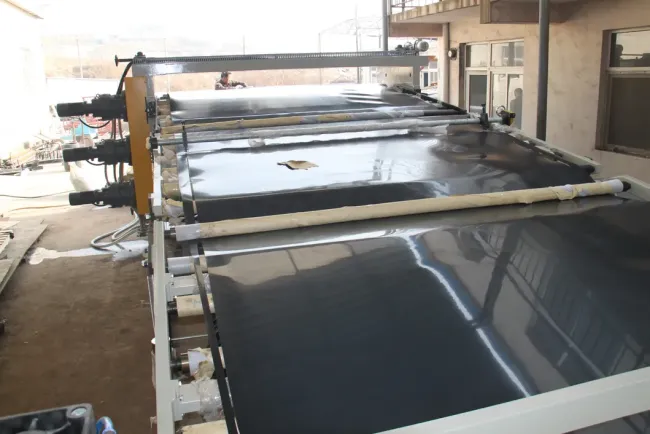

- Cooling bracket
Waterproofing Coiled Material/Geo-Membrane Extrusion Production Line

- Controlling system

Technical parameters
Extruder Film Width Film Thickness   Capacity   Total Power   Dimension(m)
  SJ120/33   3000mm   0.5-2.0mm   500kg/h   250kw   20x4x2.5
  SJ200/33   8000mm   0.8-3.0mm   1200kg/h   550kw   22x10x2.5
