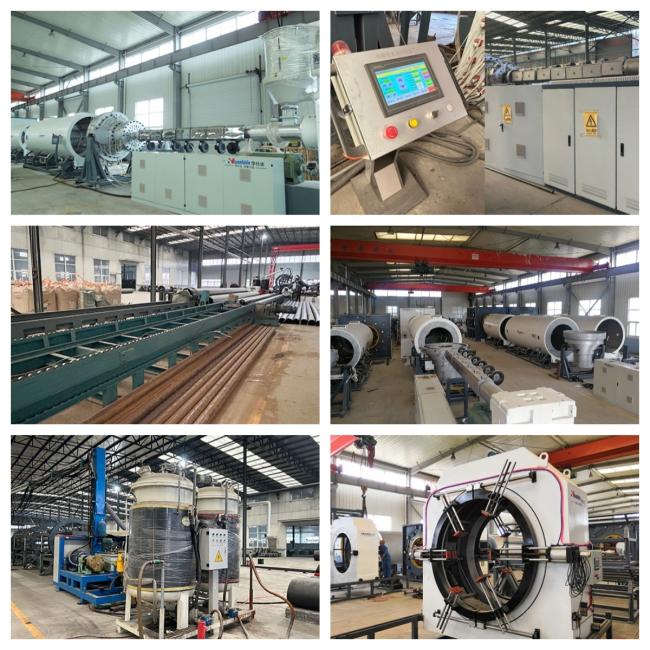

Fully Automated Pre-Insulated Pipe Extrusion Line For Municipal Oil / Gas
The HDPE Pre-Insulated Pipe Production Line.Engineered for superior thermal insulation pipe manufacturing, this production line combines advanced German-inspired technology with intelligent automation to deliver high-quality HDPE jacket pipes for industrial and municipal applications.
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 45m |
Production Line Composition Table
|
No |
Name |
Qua. |
|
1 |
Automatic vacuum feeder |
1unit |
|
2 |
High efficiency hopper dryer |
1unit |
|
3 |
High efficiency single screw extruder |
1unit |
|
4 |
Mold 110-2200mm |
1set |
|
5 |
Vacuum calibration box |
1unit |
|
6 |
Cooling calibration box |
1unit |
|
6 |

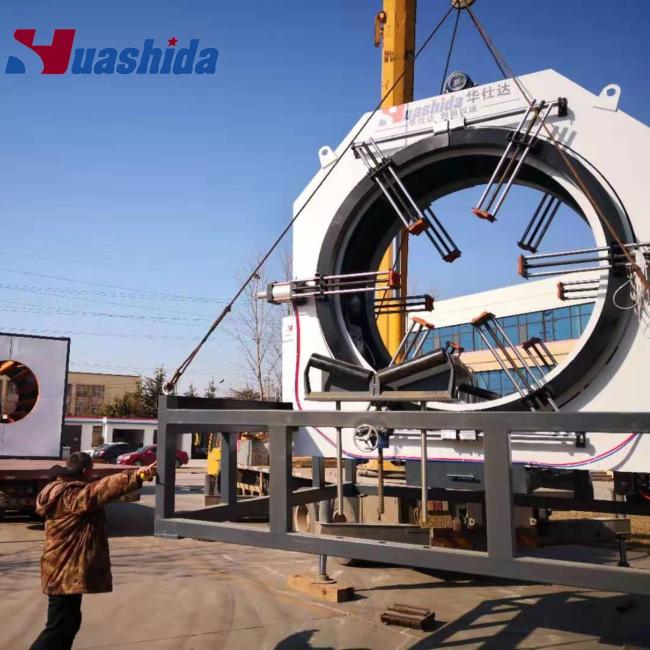

Hauling machine |
1unit |
|
7 |
Planetary cutter |
1unit |
|
8 |
PLC Computer control system |
1set |
|
9 |
Pipe bracket |
1set |
High-Speed & High-Efficiency:
♥Provides large output with stable performance.
No Trimming Needed :
♥One-step forming ensures smooth, burr-free pipes, zero post-processing waste.
Uniform Wall Thickness:
♥Adjustable die-head bolts allow precise thickness control for different applications.
High Automation & Rduce Cost :
♥The high degree of automation reduces labor costs and improves production efficiency.
Energy Saver:
♥Barrier screw design cuts energy use by compared to conventional extruders.
