Steel Pipe PE O-type Extrusion 3LPE 2LPE FBE Coating Equipment
China Factory Direct Steel Pipe PE O-type Extrusion 3LPE 2LPE FBE Coating Equipment

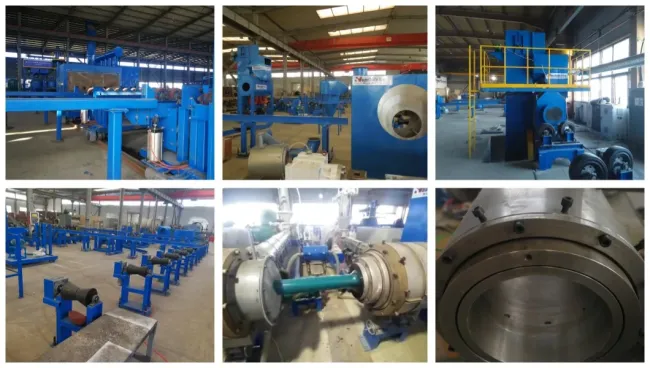

A complete set of O-type Extrusion Anti-Corrosion 3LPE 2LPE FBE Coating Machine includes systems of steel pipe transmission, shot blasting, dust collector, pipe heating, electrostatic spraying powder, PE and adhesive coating, water cooling, edge cutting, hydraulic and pneumatic device, detecting and electric controlling system.
O-type extrusion 3LPE anti-corrosion coated steel pipe has good chemical resistance:
it can resist the erosion of a variety of chemical media,,such as acids, bases, salts, oxidants, etc,suitable for medium transportation in different environments, prolong the service life of steel pipe. This kind of anti corrosive steel pipe is widely used in oil, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.
Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→unload pipes
(1) Steel pipe range:50mm-426mm
(2) Processing capacity:≥150m2/h
(3) Cleaning level:Sa2.5
(4) Materials for production: Epoxy powder, adhesive, polyethylene
We offer:
√ Senior engineer 1-on-1 design
√ EU standard delivery acceptance
√ Chinese expert Workstation Patent technology support
√ You just need to put forward your requirements, and leave the rest to us.
√ We offer turnkey projects: design - manufacturing - training.
| No. | Name | Set |
| A. Derusting Equipment | ||

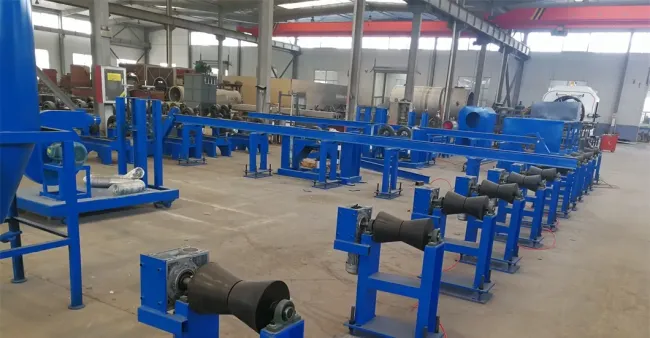

| 1 | Pipe-converying Equipment | 1 |

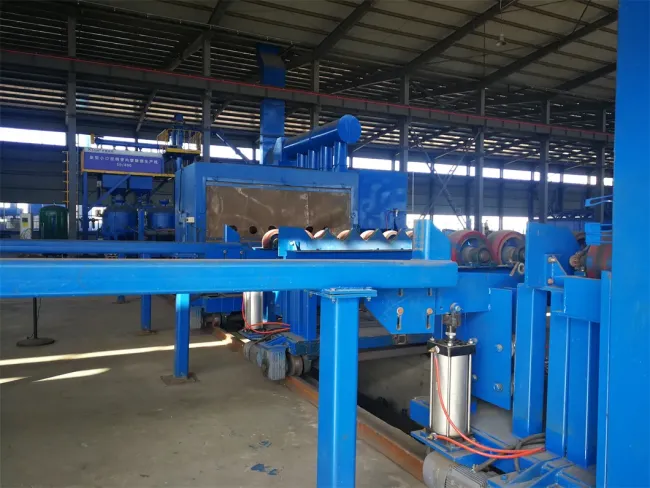

| 2 | Shot Blast Cleaning Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| 5 | Centrifugal exhaust fan | 1 |
| 6 | Rust removal equipment PLC control system | 1 |
| B. Coating equipment | ||
| 1 | Coating transfer equipment | 1 |
| 2 | IF heating device | 1 |
| 3 | Powder spraying device | 1 |
| 4 | Automatic loading dryer | 2 |

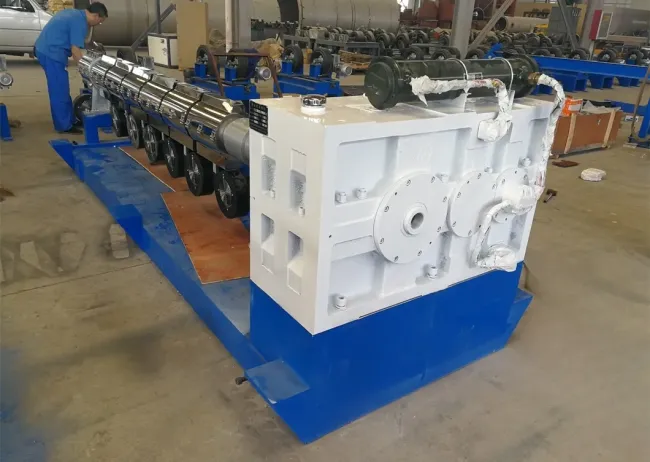

| 5 | SJ-65/30 Extruder | 1 |
| 6 | SJ-90/30 Extruder | 1 |
| 7 | Hot melt adhesive extruder die | 1 |
| 8 | PE extruder head mold | 1 |

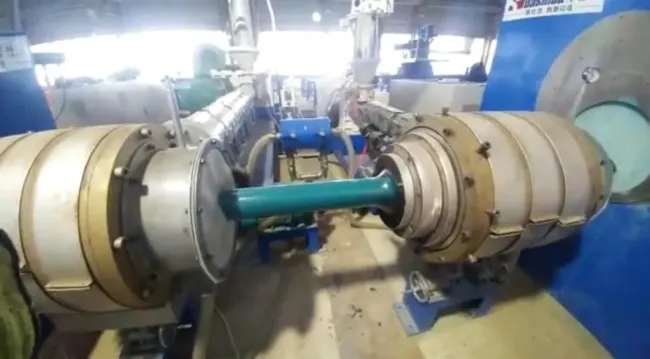

| 9 | Hot melt adhesive/PE coating device | 1 |
| 10 | Cooling Spray equipment | 1 |
| C.Platform Equipment | ||

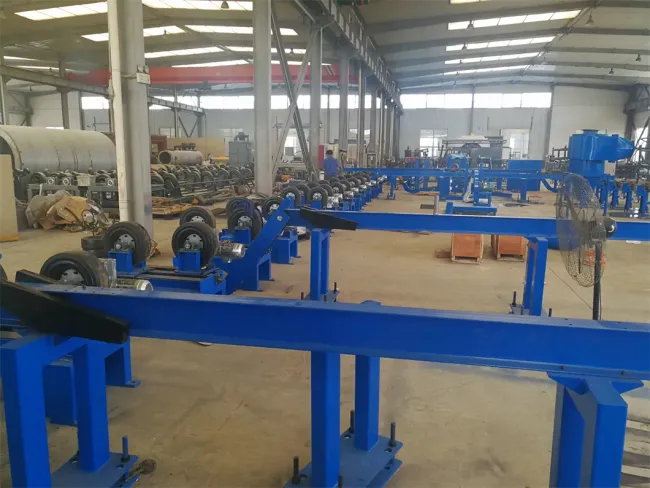

| 1 | Steel pipe platform | 1 |
| 2 | Post-rust removal transition platform | 1 |
| 3 | Product tube storage platform | 1 |
| 4 | Hydraulic Equipment | 2 |
| D.Groove Equipment | ||
| 1 | PE Beveling Machine | 2 |
| 2 | Hydraulic Lifting and Turning Machinery | 1 |
| 3 | Hydraulic Equipment | 1 |
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

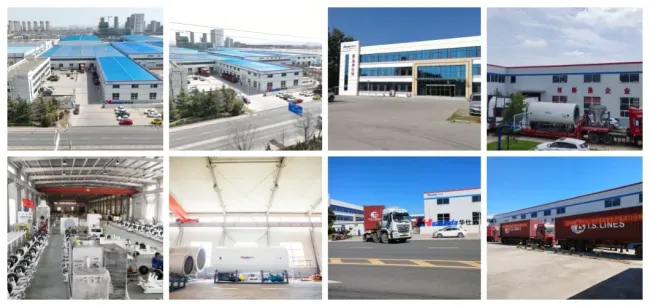

Factory overview
