Steel Pipe Internal FBE External 3lpe Anti-Corrosion Coating Machinery for Oil Natural Gas

Structure
External 3PE anti-corrosion:
It adopts a three-layer composite structure, with the bottom layer being epoxy powder, which mainly plays an anti-corrosion role. The middle layer is an adhesive, which is used to enhance the bonding force between each layer. The outer layer is polyethylene, which can provide good mechanical protection and environmental resistance.

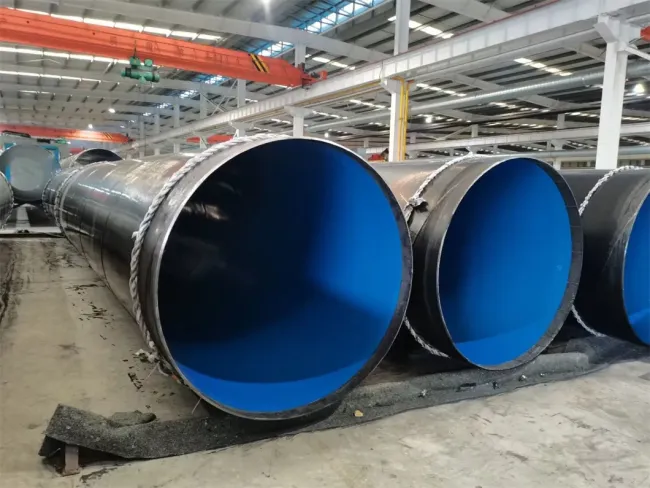

Internal anti-corrosion:
By spraying epoxy paint, taking advantage of its strong adhesion and excellent chemical corrosion resistance, it prevents the oil, gas, water and other media transported inside the steel pipe from corroding.




The external 3PE anti-corrosion combines chemical anti-corrosion with mechanical protection, and the synergistic effect of each layer enhances the anti-corrosion effect. The internal epoxy coating spraying is specifically designed to solve the corrosion problem of the conveyed medium. This anti-corrosion method is highly efficient and durable, and can significantly extend the service life of steel pipes.

It is widely applied in fields such as oil transportation pipelines, natural gas transportation pipelines, water supply and drainage pipelines, etc., providing a guarantee for the long-term safe use of various pipelines.


The anti-corrosion coating processing line includes:

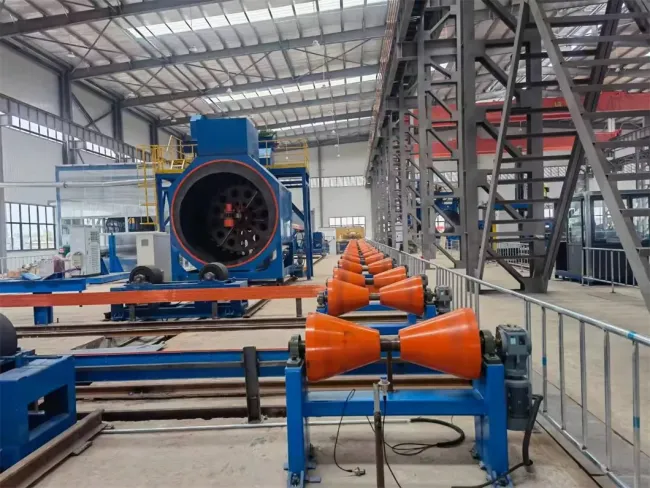

-steel pipe transmission system

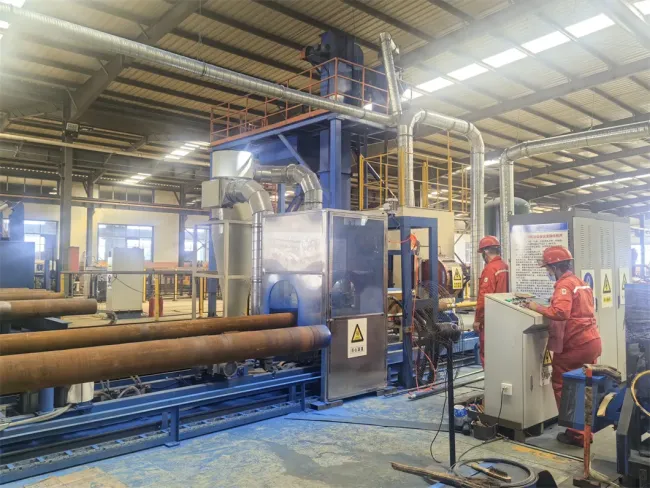

-Internal and external shot blasting system
-dust collection system
-pipe heating system
-electrostatic spraying system

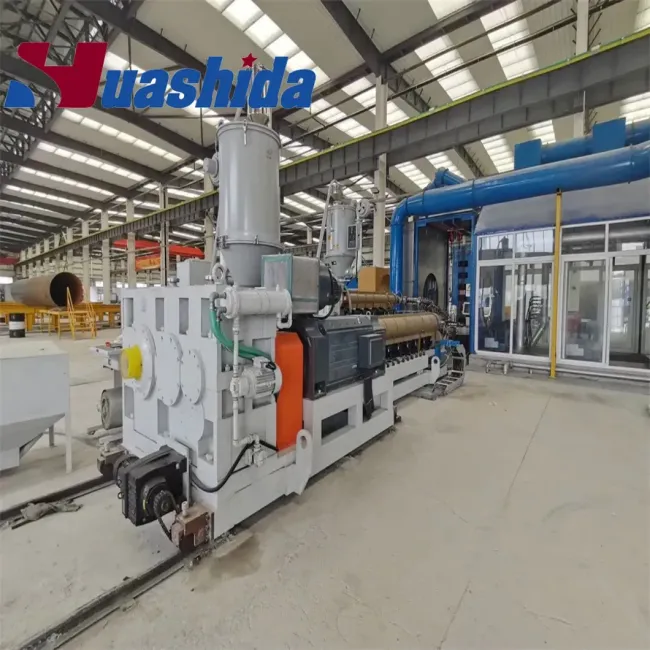

-PE coating system

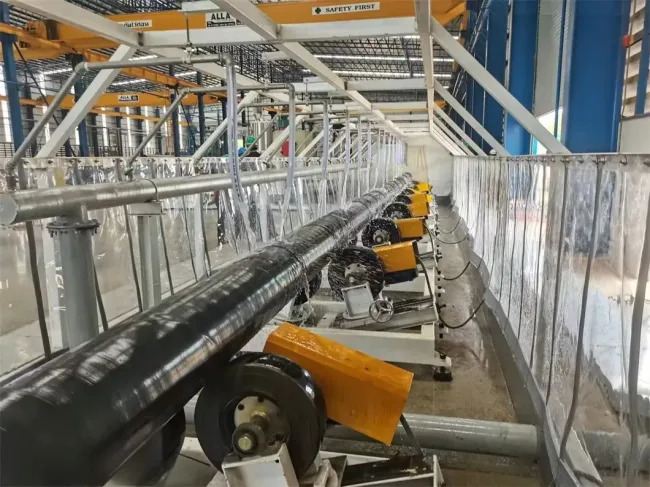

-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system

Upload pipes→pipes screw conveyor→inernal rust removal →external rust removal→ intermediate frequency heating→Internal Epoxy powder coating→External Epoxy powder coating→ outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes



-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China


1. Pipe diameter: 159-4200mm
2. Processing capacity: ≥250m²/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene
