PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line
PVC Air Conditioner Flexible Rubber Insulation Tubes Extrusion Machine Production Line

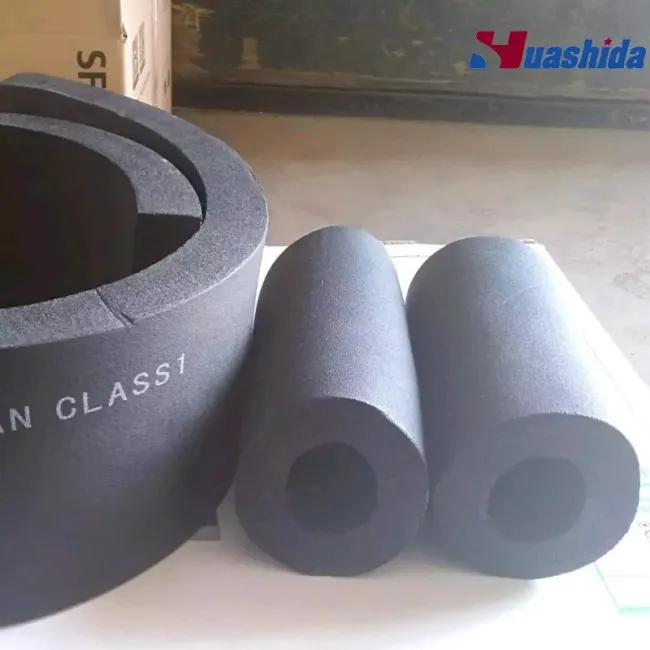

Qingdao Huashida Machinery Co., Ltd. is special manufacture in the production of rubber extruder, air-conditioning and heat-insulating pipe equipment, flat-panel foaming lines, and rubber-plastic foam insulation pipe equipment. The rubber and plastic sponge insulation materials are made of acrylonitrile-butadiene rubber and polyvinyl chloride. A variety of high-quality auxiliary materials, soft high-grade insulation energy-saving materials foamed by special processes, absolutely not containing chlorofluorocarbons. This product has a soft, resistant to bending, cold, heat, flame retardant, waterproof, low thermal conductivity, shock absorption, sound absorption and other excellent performance.
Release form: pipes and sheets
The production process:
Internal Mixer → Open Mill → Extruder → Foaming → Tractor & cutter
The rubber and plastic sponge foam insulation materials are made of acrylonitrile-butadiene rubber and polyvinyl chloride with a variety of high-quality auxiliary materials by extrusion and foaming process, free of chlorofluorocarbons.
Advantage:
2. It is not prone to aging and can extend the service life of the pipeline system
3. It can adapt to various complex pipe shapes and sizes and is flexible to install.
Application:
It can be widely used in central air-conditioning, construction, chemical, pharmaceutical, textile, metallurgy, shipbuilding, vehicles, appliances and other types of industries and sectors of hot and cold media pipeline, container, can achieve lower cold loss and heat loss effects. As the material is soft, bending resistance, ect., can be processed produce the ideal insulation material for fitness equipment, medical equipment and the indoor and outdoor pipe in solar heating system
Equipment List
Equipment List
| No. | Equipment Name | quantity | unit |
| 1 | Bale Cutter | 1 | unit |
| 2 | Internal Mixer | 1 | unit |
| 3 | Bucket Elevator | 1 | unit |
| 4 | Open Mill | 1 | unit |

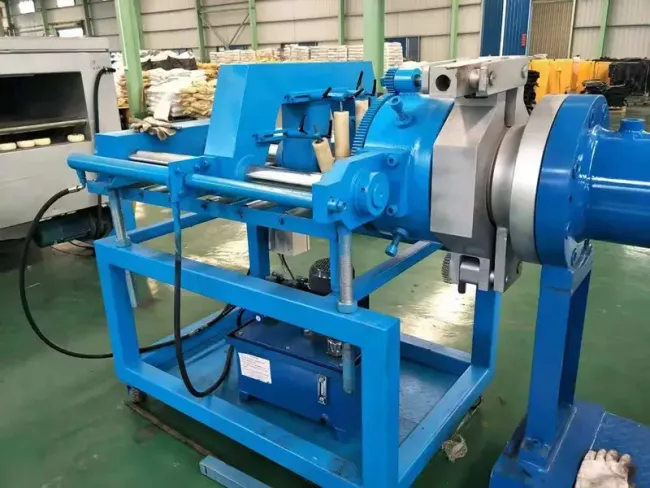

| 5 | XSJ-120 Cold feed rubber Extruder (XSJ-120) |
1 | unit |
| 6 | Extruder head
board extrude head
One in three out pipe extrude head
One in two out pipe extrude head
One in six out pipe extrude head |
1 1 1 1 |
unit |

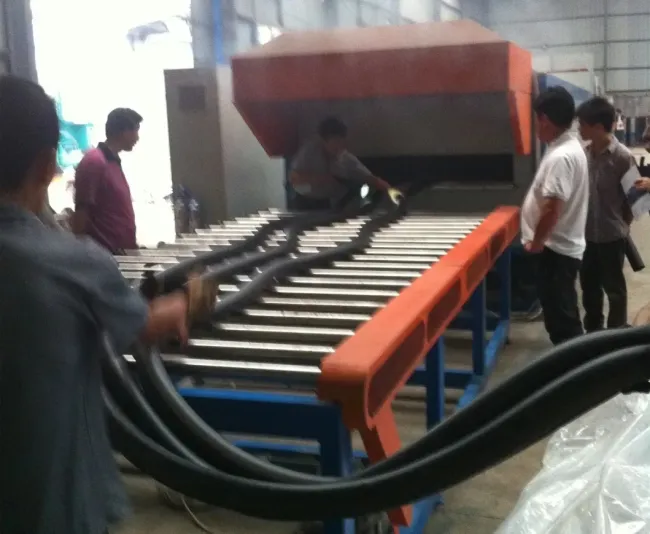

| 7 | Transition roller 1.5m | 1 | unit |
| 8 | (L 6000mm,Inner Width 1000mm)Far infrared foaming furnace | 1 | unit |

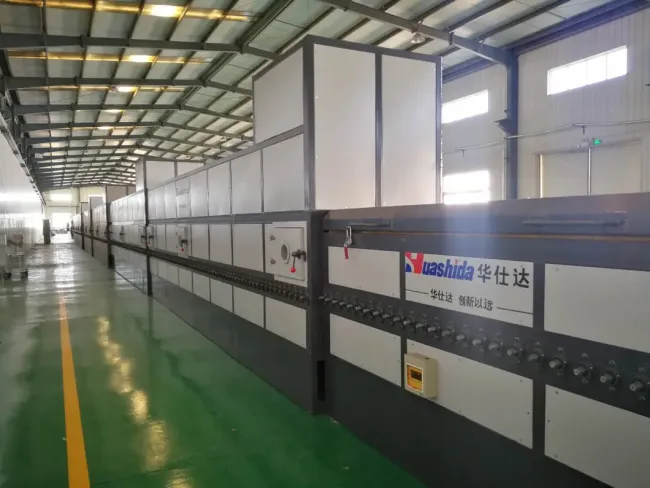

| 9 | Hot air foaming furnace 2 (L 8000mm,Inner Width 1000mm) |
2 | unit |
| 10 | Hot air foaming furnace 3 (L 8000mm,Inner Width 1200mm) |
1 | unit |
| 11 | Hot air foaming furnace 4 (L 8000mm,Inner Width 1200mm) |
1 | unit |
| 12 | Hot air foaming furnace 5 (L 8000mm,Inner Width 1500mm) |
1 | unit |
| 13 | Hot air foaming furnace 6 (L 8000mm,Inner Width 1700mm) | 1 | unit |

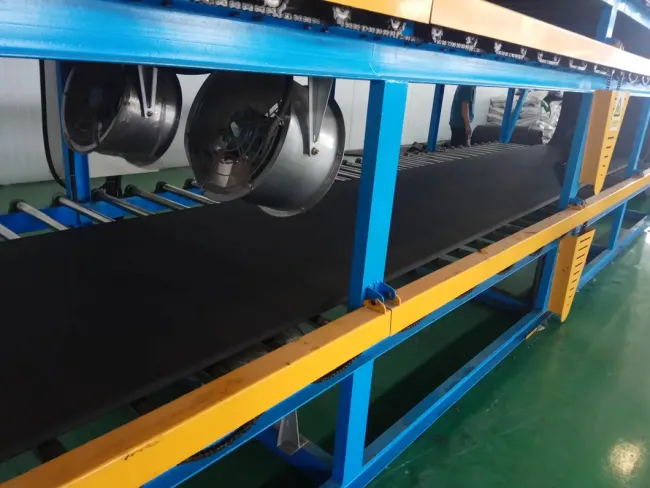

| 14 | Tractor(L:4000mm) | 1 | unit |
| 15 | Sheet cutting machine | 1 | unit |
