HDPE gas water supply pipe production line is mainly used to extrude PE pressure pipes, pipe diameter ranging 20-2200mm.

The produced pipe has smooth surface and uniform wall thickness, the specification can meet the international standards of the product. The equipment can apply special extrusion molds and adopt multi-layer co-extrusion technology to reduce production costs.
Plastic Pipes produced by this line have excellent stiffness, flexibility, highmechanical strength, resistance of environmental stress cracks, resistanceto creep defommation, heat-inkage and so on.

Water supply solid wall pipe production line process flow
Feeding&Drying → Extrusion Molding → Mold Shaping→ Cooling → Traction and Cutting → Marking

Pipe advantages and Usage
HDPE water supplying pipe is with advantages of good hot melt, flexibility, corrosion resistance, and aging tolerance.
HDPE pipe is widely used in municipal water supplying, city gas transportation and other areas.

Detailed Photos

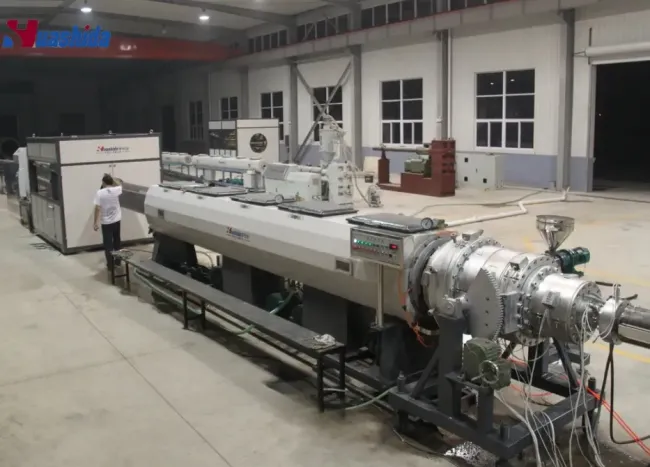

HDPE pipe extruding line is mainly composed of single screw extruder, die-head, vacuum forming tank, spray cooling tank, haul-off device, cutting device, and pneumatic discharging frame.
1. Single Screw Extruder

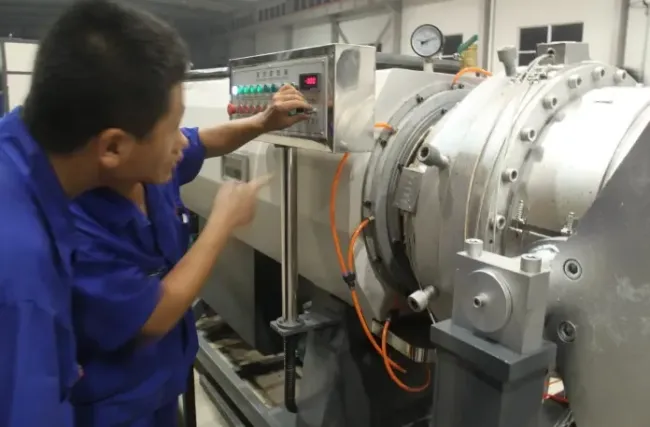

2. Die-Head


3. Vacuum forming tank


4. Water Cooling Tank

5. Haul-off Machine


 6. No-Dust Planetary Cutter

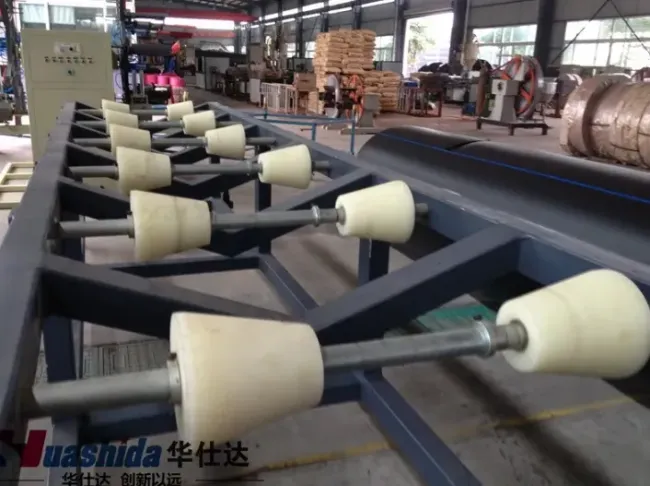

6. Discharging Frame

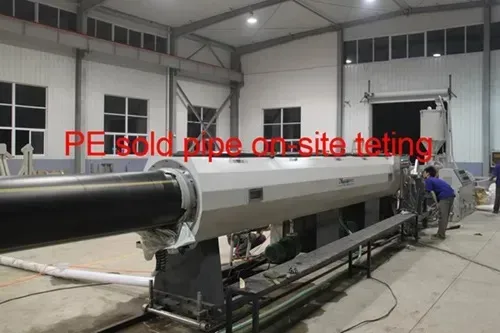

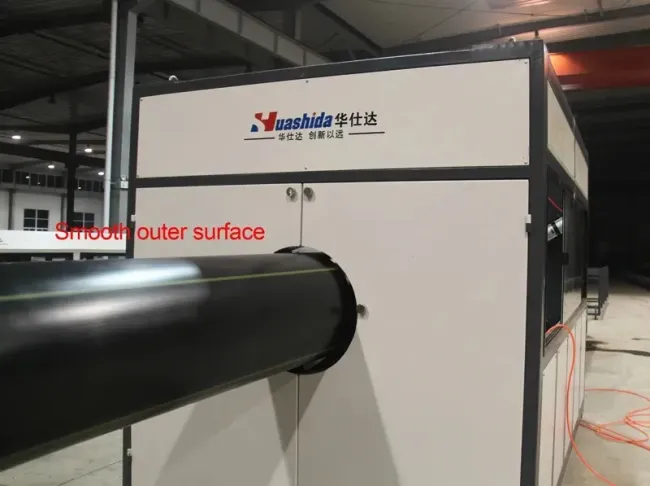

Make finished pipe display

Technical parameters

Model	Pipe diameter	Screw	KiloWatt	Output
SPEG-110	20-110mm	SJ75X33	180kw	350kg/h
SPEG-250	63-250mm	SJ90X33	280kw	500-1000kg/h
SPEG-630	315-630mm	SJ120X33	522kw	1000-1200kg/h
SPEG-1200	710-1200mm	SJ150X33	680kw	1000-1600kg/h
SPEG-2200	1000-2200mm	SJ150X33	1200kw	2000-2500kg/h



-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
