Cold Storage Coal Mines Petroleum Chemical Flexible PERT / PE / PPR Pre-Insulated Pipe Production Line
After two years of intensive technological innovation, the Huashida PERT insulated pipe production line has successfully addressed 130 research and development challenges, establishing a comprehensive intellectual property rights solution that is entirely independent. By leveraging precisely engineered extruder screws and barrels, cutting-edge pipe die configurations, and optimally designed cooling systems, this production line ensures the high-quality manufacture of PERT insulated pipes. Its performance and reliability are now recognized as being at the forefront of the internation .
The characteristic of this production line is that the pouring process of polyurethane foam is continuous. The inner pipe is continuously conveyed into the pouring area together with the polyurethane foam mixture, then coated and formed with a film, and then passed through a round die head to be coated with the outer protective layer extruded by the extruder.
This kind of pipe is a new generation of PU insulation pipe, with many advantages, such as light, easy operation, few joints, and good flexibility.
It is mainly used to transport heat from main pipe system to housing estate or buildings.
√ Insulation:
The thermal conductivity is as low as 0.013, which is 4 to 9 times better than that of traditional materials. The 92% closed-cell rate ensures a lifespan of over 50 years.
√ Anti-corrosion property:
The foam layer is closely bonded, isolating air moisture and ensuring long-lasting durability in harsh environments.
√ Economy:
Save 50% of excavation costs and 90% of civil construction costs, shorten the construction period by half, and use intelligent control to reduce energy consumption.
√ Environmental friendliness:
Less land occupation, zero waste in production, and green processes are more sustainable.
| Model | Dia.Range | Extruder | Power | Capacity |
| PERT-110 | 20-110 | 60/33 | 150kw | 180kg |
| PERT-250 | 75-250 | 75/35 | 220kw | 250kg |
| PERT-250 | 160-350 | 90/33 | 260kw | 500kg |
Market Leadership:
Trusted by over 400 domestic enterprises with a 70% customer repurchase rate.
High Performance:
High-speed, stable, and reliable production with unmatched efficiency.
Global Reach:
Exported to Europe, America, the Middle East, Central Asia, Africa, and Russia.
Responsive Support:
24/7 service response mechanism for domestic and international customers.
Proven Reliability:
A trusted brand recognized for quality and innovation in insulation pipe production.

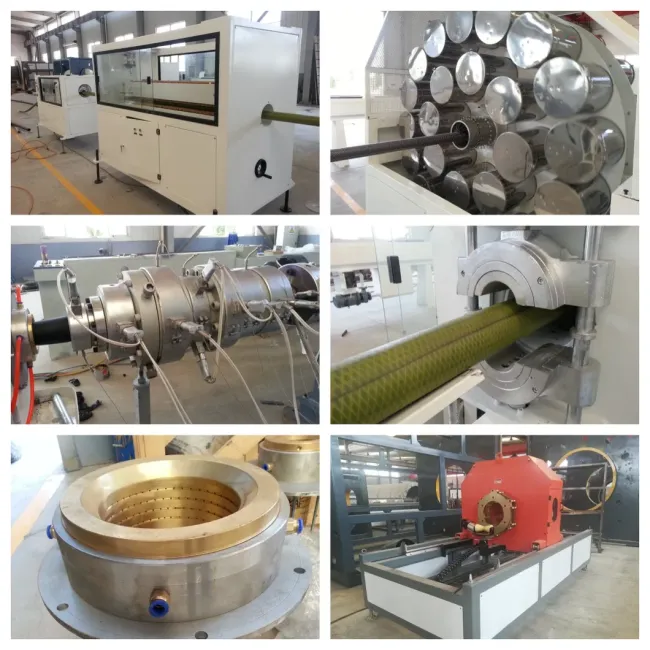

Equipment components:
-- Production line for inner pressure pipe (PERT, PEX)
-- Inner pipe unwinding device
-- Pipe feeding device
-- Conveyor
-- Pipe centering device
-- Preheating and temperature control
-- Film feeding device
-- High-precision foaming machine
-- Forming machine with temperature control
-- Extruder for casing pipe and water cooling
-- Pull-off device
-- Winding machine

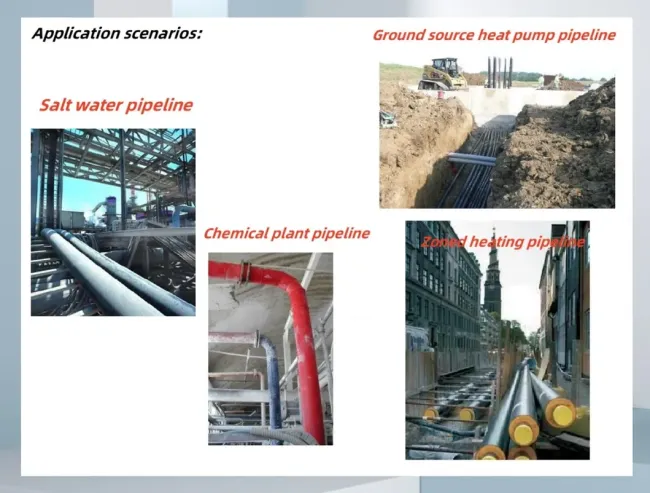

Huashida's continuous PERT insulated pipe pipes are ideal for a wide range of applications, including district heating, cooling systems, oil and gas pipelines, and industrial piping. Their superior insulation, anti-corrosion properties, and long service life make them the preferred choice for modern, sustainable piping systems.
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.

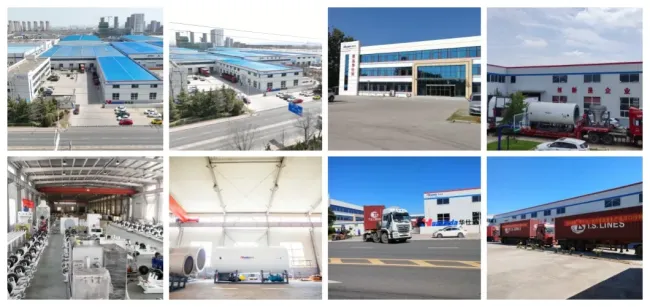

Factory overview
