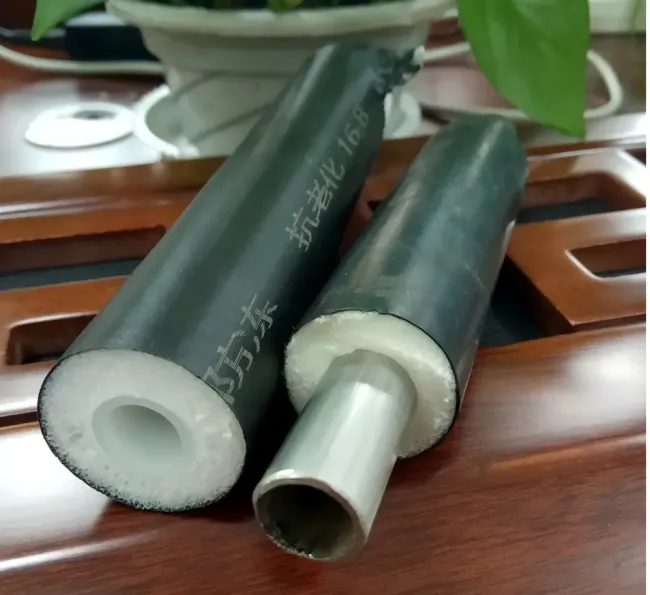

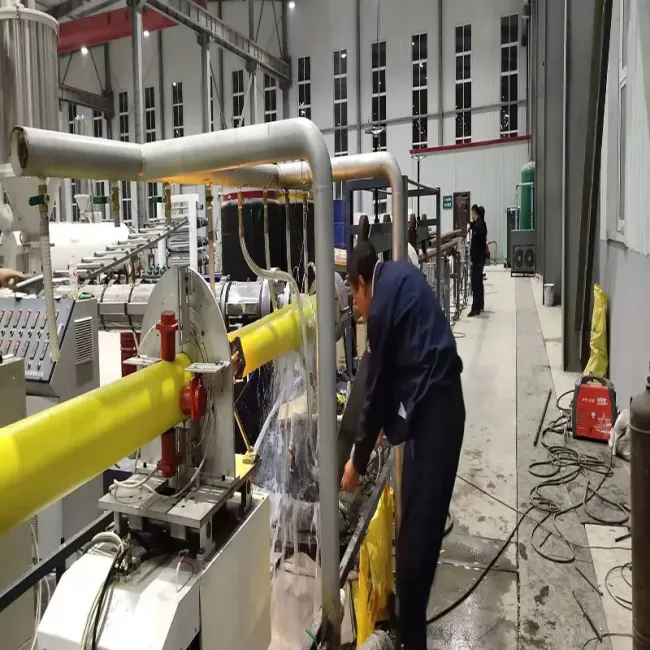

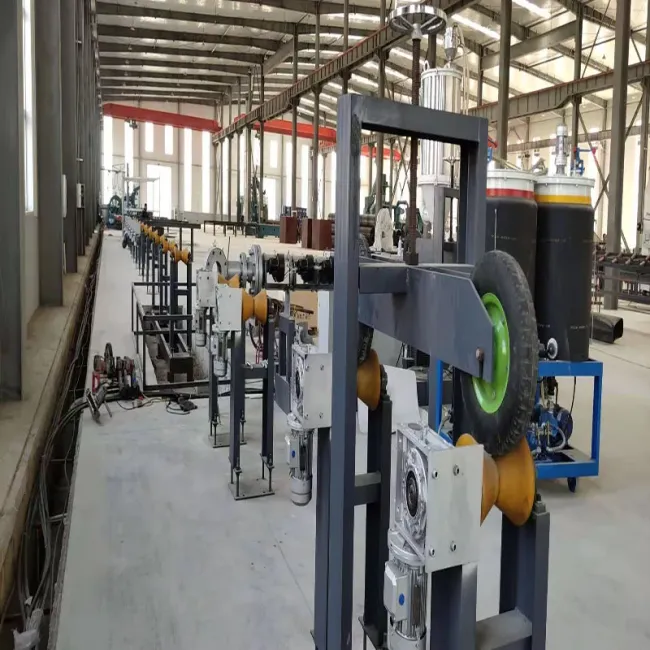

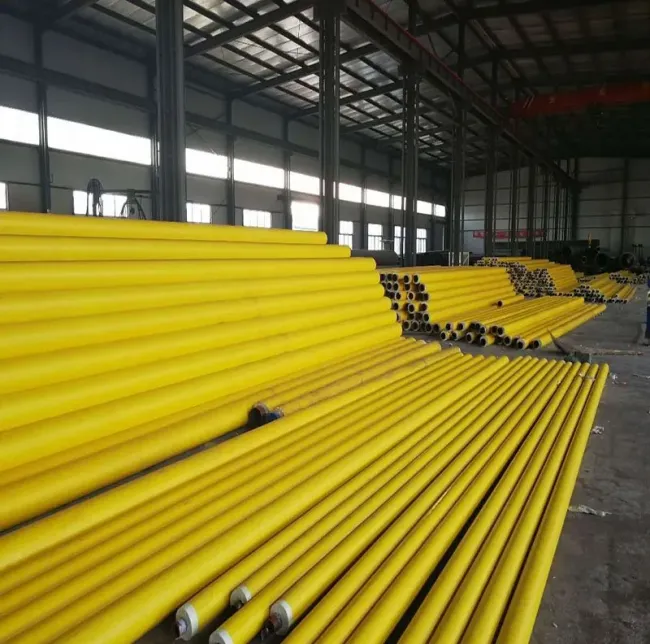

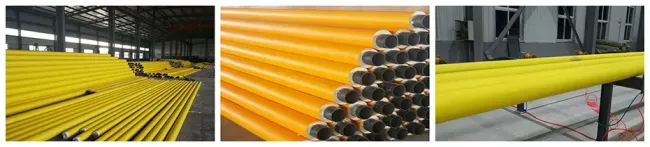

This Continuous PU Foaming Insulation Pipe Jacket Extrusion Line is specially designed for the production of small and medium diameter pre-insulated PU thermal pipes, with jacket pipe diameters ranging from 48mm to 630mm. It integrates HDPE jacket pipe extrusion, epoxy coating, adhesive wrapping, and continuous PU foaming technology into a fully automated continuous production system, ensuring high efficiency, consistent quality, and reduced labor cost.

Widely used for:

District heating and cooling pipelines
Underground thermal insulation piping systems
Pre-insulated oil and chemical transport pipelines

1.Up load pipe-----2.External derusting------3.Put label on pipe side-----4.Intermediate heating------5.external epoxy coating----6.Water cooling-----7.Coating layer detection-----8. Put adhesive on epoxy layer-----9.PE jacket coating------10. PU foaming-----11.Foaming rectification-------12.Pipe edge cutting----13.Water cooling---14.Pipe edge heat shrink sealing------15.Download pipe

Applicable Pipe Diameter: 48mm – 630mm
Extrusion Material: HDPE pellets
Insulation Material: Polyurethane (PU) foaming agent
Coating Materials: Hot melt adhesive, Epoxy powder
Power Supply: 380V (-10% ~ +5%), 50Hz, 3-phase
Total Installed Power: Approx. 850 KW
Cooling Water Requirements:

Temperature: ≤15ºC
Pressure: 0.15–0.2 MPa
Flow Rate: 0.5 m³/min

Installation Site: Indoor
Ambient Temperature: 0–30ºC
Humidity: ≤85% (no condensation)
Safety: Non-hazardous operation environment

Continuous production for higher productivity
Strong insulation bonding, stable foam density
Online coating inspection and sealing ensures pipe durability
Suitable for customized PU insulated pipe manufacturing projects
