The PE electric heat fusion sleeve is made by combining high-quality Pe plates with nickel-chromium alloy electric heat mesh at high temperatures.
Applicable pipe diameters: DN200-DN3000mm.
It is a kind of connecting pipe fitting where is widely used on anti-corrosion, especially on HDPE Hollow Wall Spiral Pipes / Directly buried pre-insulated pipes / Directly buried metal reinforced corrugated pipes field joint. It is made by Polyethylene sheets complex with the electro-fusion wire.
Features of electofusion tape:
1. According to the pipe corrugated process, the peak valley width usually from 60mm to 80mm, the Narrow tape welding the pipe joint along the cutting edges.
2.Polyethylene Electric Heating Fusion Tape for Metal Reinforced Spirally Corrugated Pipe
3. The best way to weld the joint should use the Hand extruder welding the cutting edges inside of the pipe first, the use the narrow tape welding it from outside.
1.District Thermal Heating System Construction: Ensuring secure and leak-proof connections in extensive heating networks.
2.Pre-Insulated & Oil Pipe Field Joint Welding: Providing reliable welding for on-site connections of pre-insulated and oil pipelines.
3.Hollow Wall & Structure Pipe Joint Fitting: Ideal for joining sections of hollow wall spiral pipes and structured wall pipes.
4.Steel Reinforced Spiral Pipe Joint Fitting: Ensuring strong and durable connections for steel reinforced spiral pipes.
1. Waterproof;
2. Able to withstand axial forces initiated by axial movements of the pipe in the ground;
3. Able to withstand radial forces and bending moments;
4. Able to withstand effects of temperature and temperature variations.
5. Have the same thickness of the line pipe insulation layer.

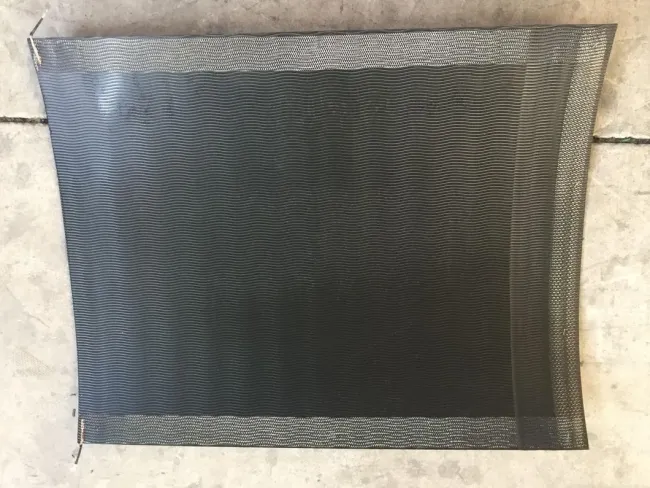

Size and deviation of the electrofusion mesh
| Mesh material | Electrofusion mesh | Electrofusion sleeve | |||
| Thickness | Deviation | Width | Deviation | Length | Deviation |
| 0.30 | ±0.015 | 50 | 0 -+0.2 | 1770 | 0-+10 |
Resistivity of electrofusion mesh should comply with the following standard
Resistivity of electrofusion mesh
| (mm/m) Width of electrofusion mesh |
(mmxmm) Mesh hole |
mm Mesh wire |
(Q/m) Resistivity |
| 50 | 3x6 | 0.3 | 0.8 |

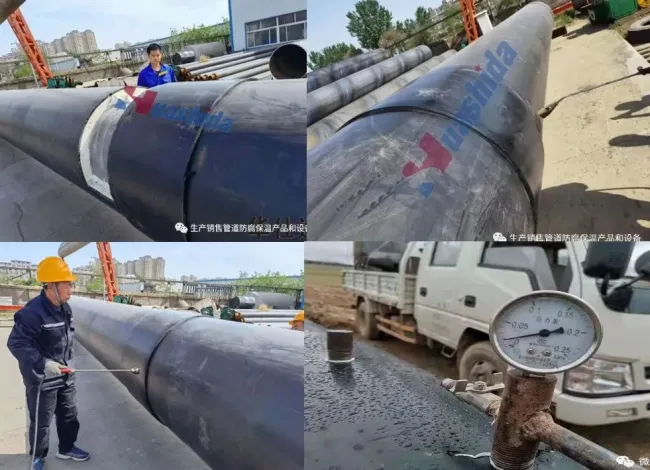

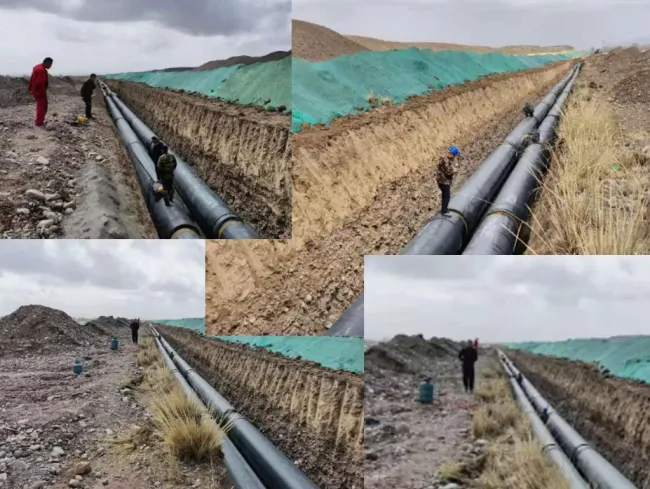

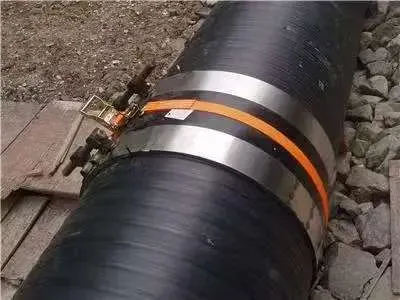

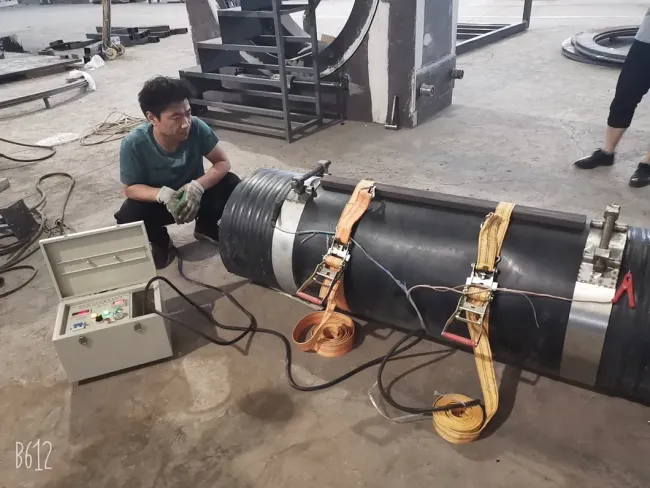

Construction scene photos

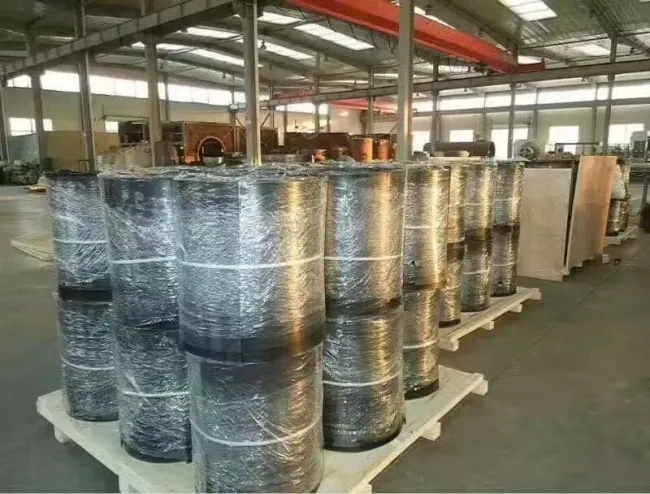

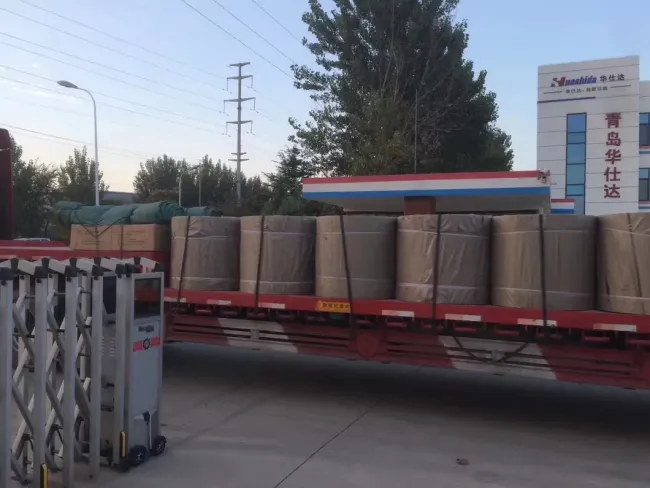

Shipping photos

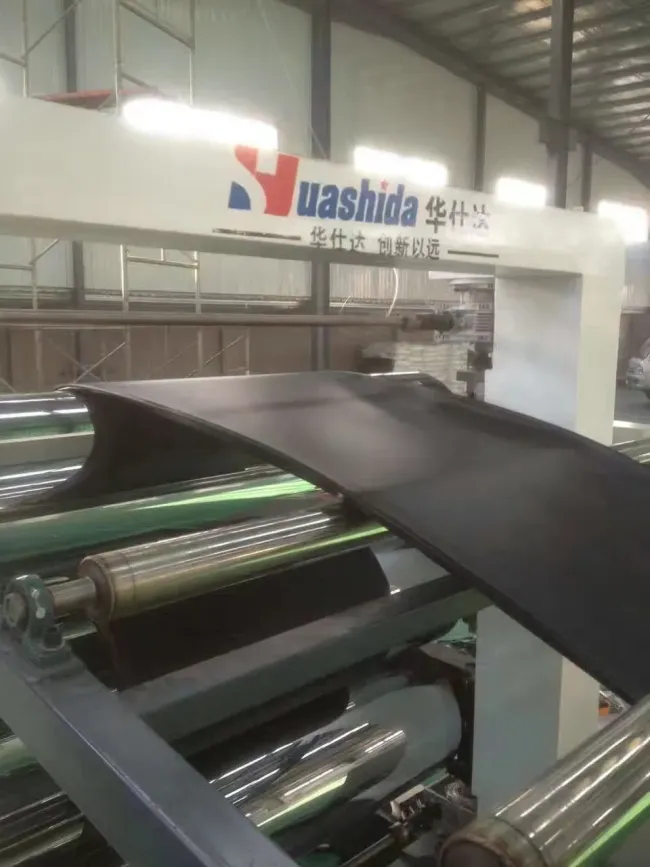

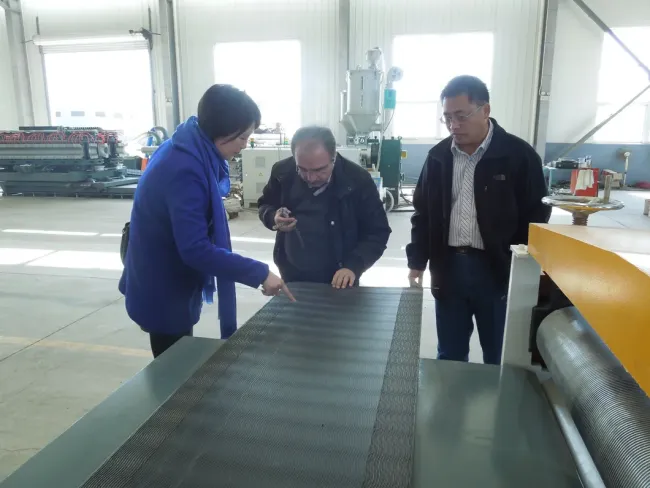

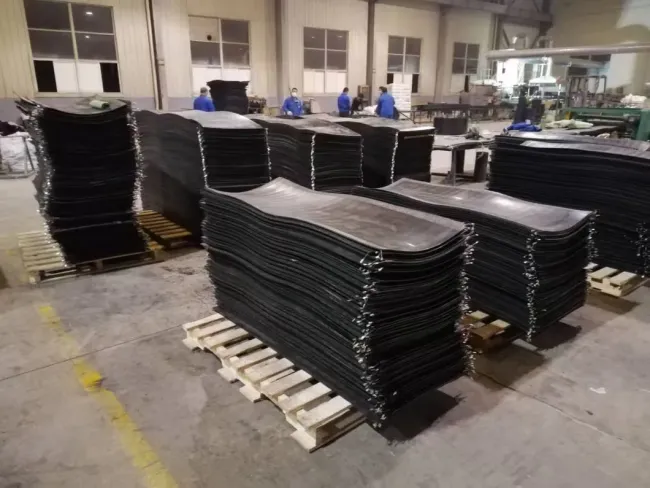

Production equipment photos
