Automated Internal External Fusion Bonded Epoxy FBE Coating Line For Steel Pipes Anticorrosion
Automated Internal & external Fusion Bonded Epoxy (FBE )Coating Line for Steel Pipes Anticorrosion
High Performance 3PE FBE Powder Coating System for Pipeline Corrosion Protection
Fusion Bonded Epoxy (FBE) Coating Overview
Fusion Bonded Epoxy (FBE) coating is a high-performance, epoxy-based powder coating specifically engineered for anti-corrosion protection of steel pipes. It is widely utilized in various industries, including oil, gas, water supply, and drainage pipelines.
Key Features
- Automated Application: The coating process is highly automated, ensuring precision and efficiency.
- Corrosion Resistance: FBE forms a dense, protective layer on both internal and external surfaces of pipes, effectively preventing corrosion.
- Chemical Resistance: The coating offers excellent resistance to various chemicals, enhancing durability in harsh environments.
- Smooth Surface Finish: Provides a smooth surface that reduces friction, facilitating fluid flow.
- Compliance with Standards: Designed to meet international standards, ensuring long-term pipeline integrity and reliability.
FBE coating is an essential solution for protecting steel pipes, contributing significantly to the longevity and performance of pipeline systems.
Core Equipment
| Item | Process Flow |
| 1 | Upload pipes |
| 2 | pipes sprial conveyor |
| 3 | external blasting |

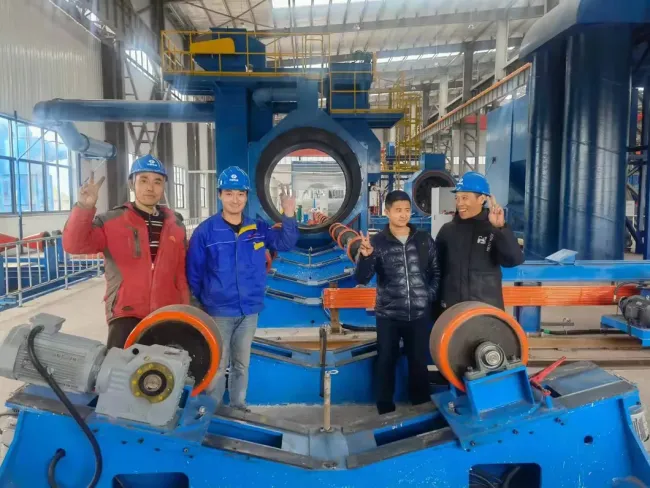

| 4 | internal blasting |
| 5 | Rust removal |
| 6 | intermediate frequency heating |
| 7 | FBE powder coating |
| 8 | Powder recycling system |
| 9 | load down pipe rack |
| Question | Answer |
|---|---|
| Q1. Pipe Diameter Range | Four main models available: • 48-219mm • 219-1220mm • 325-1600mm • 508-2400mm • 1000-3200mm |
| Q2. Descaling Grade | SA2.5 (ISO Standard) |
| Q3. Anti-Corrosion Standards | Complies with: • China: SY/T0413-2002, GB/T23257-2009, SY/T0315-2005, CNPC38-2002 • Germany: DIN 30670, DIN 30678 • International: NACE (USA), DNV (Norway) |
| Q4. Delivery Time | 2-3 months after deposit |
| Q5. Production Output | • Max: 3-8 km/day (varies by pipe diameter) • Annual capacity: 2 million m² (Φ508mm pipe) |
| Q6. Coating Thickness | 80~800μm (customizable) |
| Q7. Export Countries | Russia, Iran, UAE, India, Belarus, Kazakhstan, etc. (50+ 3PE lines installed worldwide) |
| Q8. After-Sales Service | • Warranty: - Mechanical: 12 months - Electrical: 6 months • Includes: - Pre-delivery testing - Free technical training - Operational guidance |
√ Advanced Technology: Fully automated, reducing labor costs
√ High Efficiency: Up to 8 km/day (Φ508mm pipe)
√ Global Compliance: Meets international corrosion standards
√ Turnkey Solutions: Design, installation, commissioning & training
√ Expert Team: 9 senior engineers + China's top machinery R&D center
After-Sales Service
-
Warranty: 12 months (mechanical), 6 months (electrical)
-
Support: Free training, remote guidance, lifetime maintenance
