3lpe 2lpe Fbe External And Internal Coating Line for Steel Pipe Anticorrosion
The steel pipe anti-corrosion coating line is designed for applying protective coatings to steel pipes of various diameters in a factory setting. It is widely used in engineering construction, particularly in heating, gas, and oil fields. This line accommodates multiple types of coatings, including FBE, 2-layer FBE, 2-layer PE, 2-layer PP, and 3-layer PE anti-corrosion coatings.
3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

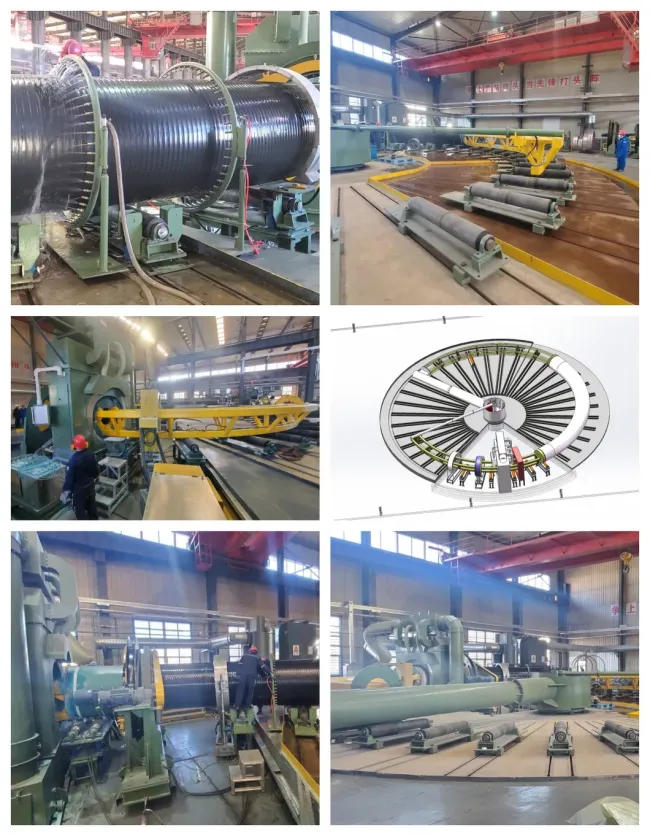

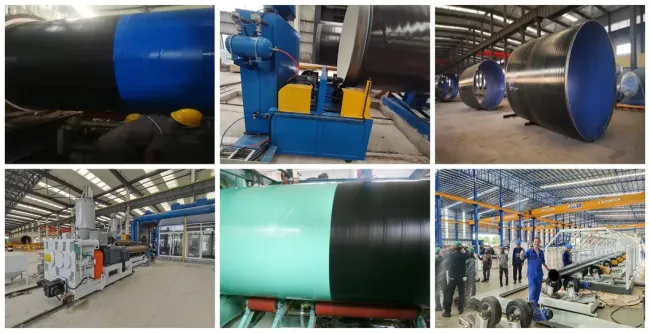

Steel pipe 3LPE anti-corrosion coating line
(Dia. 159-4200mm)

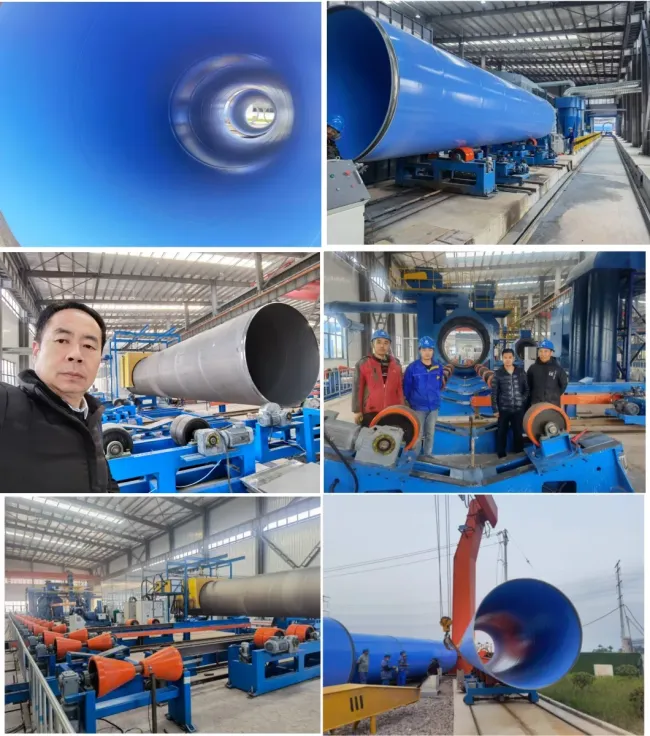

Steel pipe internal external FBE coating line
(Dia. 500-4200mm)

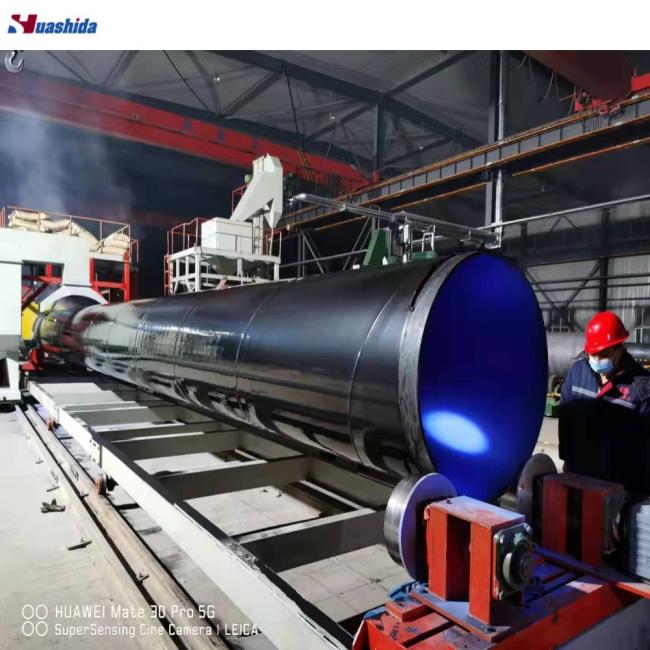

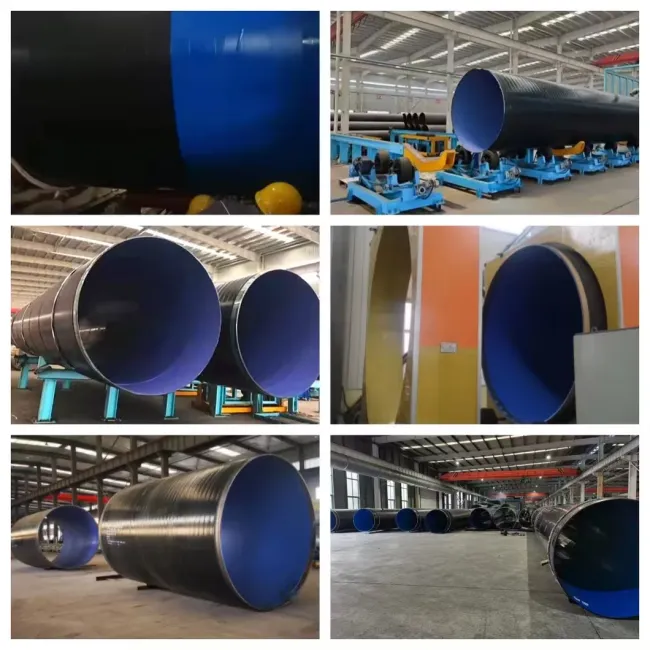

Internal FBE external 3LPE coating line
(Dia. 159-4200mm)
Small size steel pipe O-type extrusion 3LPE coating line
(Dia. 57-426mm)
Steel Bend pipe FBE &3LPE coating Production Line
The three-layer polyethylene anti-corrosion coating is an advanced protective technology for buried pipes. Commonly used in gas and oil transmission pipelines, urban gas supply, and water distribution systems, this coating enhances the mechanical properties of the pipeline. It provides excellent electrical resistance, waterproofing, wear resistance, and anti-aging performance, ensuring long-lasting protection against corrosion.
The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.

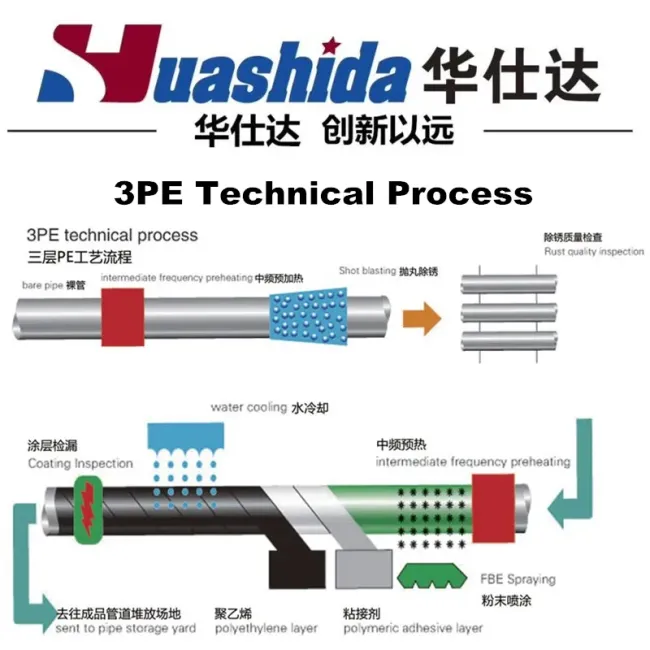

Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
-Adopt advanced technology
-Stable operation
-High degree of automation, saving labor costs
-Good anti-corrosion quality, meets international standard
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
Main Equipment List
| No. | Name | Set |
| A. Derusting Equipment | ||
| 1 | Pipe wheel conveyor | 1 |
| 2 | Shot Blasting Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| 5 | Centrifugal exhaust fan | 1 |
| 6 | Rust removal equipment PLC | 1 |
| B. Coating equipment | ||
| 1 | Pipe wheel conveyor | 1 |
| 2 | Induction heating device | 1 |
| 3 | Powder spraying device | 1 |
| 4 | Automatic loading dryer | 2 |
| 5 | SJ-65/30 Extruder | 1 |
| 6 | SJ-120/30 Extruder | 1 |
| 7 | Hot melt adhesive extruder die | 1 |
| 8 | PE sheet extruder head mold | 1 |
| 9 | Hot melt adhesive/PE sheet coating device | 1 |
| 10 | Environmental Protection Ventilation equipment | 1 |
| 11 | Cooling Spray equipment | 1 |
| C.Platform Equipment | ||
| 1 | Steel pipe uploading platform | 1 |
| 2 | Downloading platform | 1 |
| 3 | Pipe storage platform | 1 |
| 4 | Turnover machanism | 3 |
| D.Groove Equipment | ||
| 1 | PE Beveling Machine | 2 |
| 2 | Hydraulic Lifting and Turning Machinery | 1 |
| 3 | Hydraulic Equipment | 1 |
| 4 | PLC automatic control system | 1 |
1. Pipe diameter: 50-4200mm
2. Processing capacity: ≥250m2/h
3. Cleaning level: ≥Sa2.5
4. Materials for production: epoxy powder, adhesive, polyethylene
Qingdao Huashida Machinery Co., LTD is a manufacturer specializing in a range of plastic pipe machines, municipal pipe machines, pipe insulation and anti-corrosion machines, and pipe jointing materials. With 21 years of production experience, we offer a diverse array of products, including:
- HDPE Jacket Pipe for Pre-Insulated Pipe Production Line (110-2000mm)
- Rigid Pre-Insulated Pipe Production Line
- Flexible Pre-Insulated Pipe (PERT) Production Line
- Steel Pipe FBE/2LPE/3LPE Anti-Corrosion Coating Line
- Steel Pipe Derusting Line
- PE Pressure Pipe/Water and Gas Supply Pipe Production Line
- PP/PE Plastic Board/Sheet/Geomembrane Production Line
- NBR PVC Thermal Insulation Tube/Plate Production Line
- Pipeline Anti-Corrosion Materials and Instruments: Heat shrink joint coating sleeves, electro-fusion weldable joint sleeves, portable welding guns (extruders), and PE/PP welding rods.
We have partnered with over 400 overseas customers, exporting our products to countries such as Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and more.
