1400mm 3PE Coating Line for Large Diameter Steel Bend Pipes
Price:
US$200,000.00 - 400,000.00 1 Set (MOQ)
MOQ:
1 Set
Delivery Time:
70-90 days
Brand:
Huashida
Product Description
Large Diameter Bend Pipe Adhesive Epoxy Anti-Corrosion Coating Machinery
Basic Info.
Model NO.
1420mm
Type
Coating Production Line
Coating
Powder Coating
Substrate
Steel
Certification
CE, ISO, RoHS, REACH
PE Layer Thickness
2.5 - 3.7 mm
Epoxy Powder Thickness
More Than 170 Um
Curvature Radius
4-6 Times D
Ad Copolymer Adhesive Thickness
170-250 Um
Bending Angle
15-90 Degrees
Transport Package
Standard Package
Specification
426-1020mm
Trademark
HUASHIDA
Origin
Qingdao, China
HS Code
8477209000
Production Capacity
20 Sets/Year
Packaging & Delivery
Package Size
3200.00cm * 300.00cm * 400.00cm
Package Gross Weight
2000.000kg
Product Description
Large Diameter Bend Pipe Adhesive Epoxy Anti-corrosion Coating Machinery

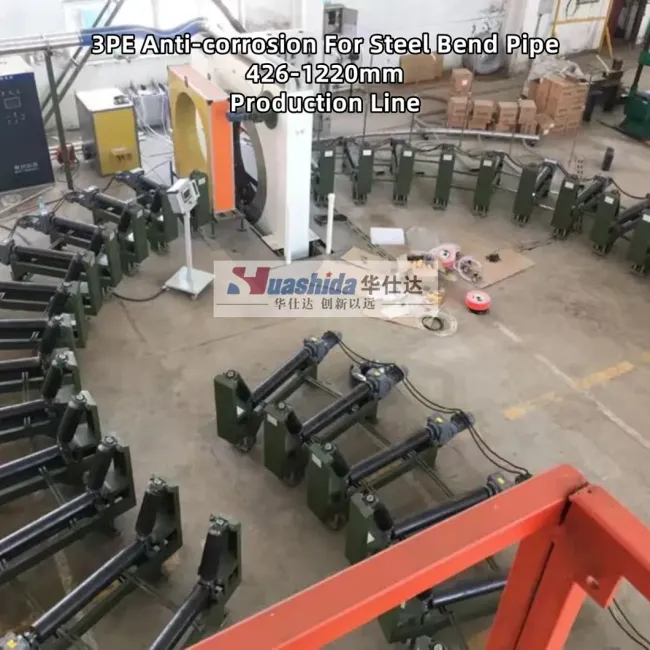

Bend Pipe Transportation System
Ensures smooth, precise handling and movement of bent pipes through all stages of coating.
Bend Pipe Blasting Machine
Thoroughly cleans pipe surfaces by removing rust, scale, and contaminants, providing an ideal substrate for coating adhesion.
Bend Pipe Intermediate Frequency Heating System
Precisely heats pipes to optimal temperature to enhance epoxy bonding and coating uniformity.
Bend Pipe 3PE Coating Unit
Applies a robust triple-layer protection system-epoxy powder, adhesive, and polyethylene-ensuring long-term corrosion resistance.

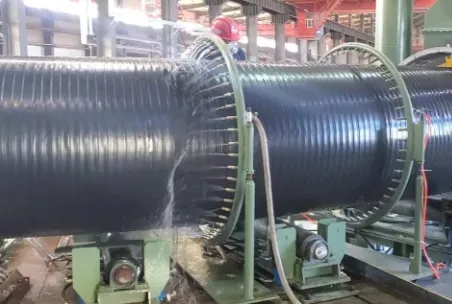

Bend Pipe Spray Cooling System
Rapidly cools coated pipes to stabilize the coating structure and improve mechanical properties.
Bend Curvature Radius: 4-6D
Bend Angle: 15°-90°
Wall Thickness: 8-12 mm
Coating Thickness:
Epoxy Powder: ≥170 µm
Adhesive (AD): 170-250 µm
PE Layer: 2.5-3.7 mm
Work Conditions
Production Line Dimensions: 20 m x 15 m
Water Consumption: 30 m³
Power Consumption: 450 kW
Gas Consumption: 6 m³/min
Ambient Temperature: >5°C
Why Choose Our Equipment?
Qingdao Huashida Machinery Co., Ltd. is a trusted leader in plastic extrusion and anti-corrosion technology. With over 20 international patents and certifications, our systems are deployed globally across diverse industries. We offer:
Customized machinery tailored to specific project needs
Advanced R&D capabilities for innovative solutions
Comprehensive after-sales support and technical services
Our equipment serves clients in Russia, UAE, India, Saudi Arabia, Kazakhstan, Turkey, and beyond. With nearly 200 production lines operating worldwide, we are committed to delivering reliability, innovation, and excellence.
