FBE Coating Machine for Steel Pipes 159-4200mm with Powder Coating

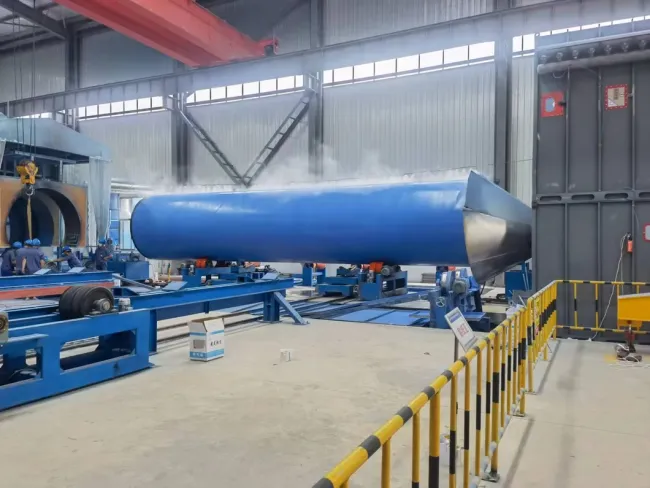

High-Efficiency Internal External FBE Coating for Anticorrosion Resistance in Oil and Gas Pipelines

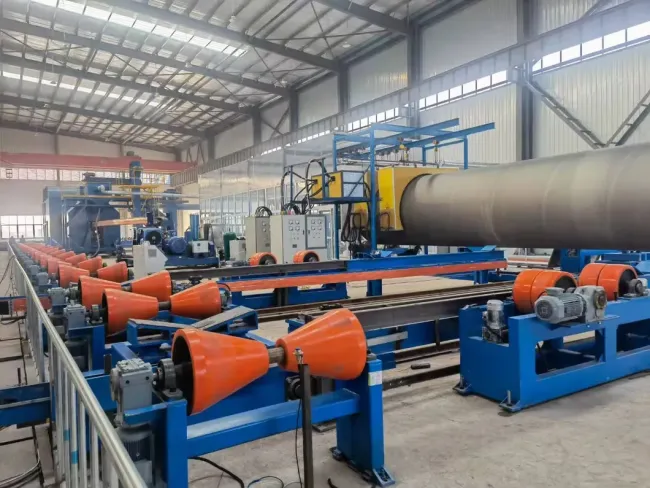

Steel Pipe Internal External FBE Coating Machinery Production description
It is an efficient method to make the epoxy powder of inside and outside the steel pipe for anti-corrosion. The anti corrosive steel pipe has many advantages, such as strong corrosion resistance of the coating, which can resist the erosion of a variety of chemical mediator; The coating surface is smooth and the friction resistance is small. This steel pipe of anti corrosion is widely used in petroleum, natural gas transmission pipelines, water supply and drainage pipelines and many other fields.The production line is equipped with advanced PLC automation control system, which minimizes human error and allows continuous and stable operation to meet the demands of large-scale production. It can also customize system solutions for customers according to different steel pipe specifications and different needs of customers.
Internal & External FBE Powder coating Structure:
The epoxy powder is a kind of thermosetting nontoxic coating, forming the high molecular weight cross-linking structure coating after solidifying, featuring good chemical anticorrosion and higher mechanical properties. The function of epoxy powder bottom layer is to form continuous coating, providing excellent adhension by agglutinate and solidifying the steel tube surface with good chemical resistance and cathodic disbanding resistance. The function of polymer adhesive is to agglutinate the epoxy powder before gelation, and to agglutinate the polyethylene top layer, which unites all three layers together.
Internal & External FBE Powder coating Features:
Advanced FBE Technology: Superior corrosion and chemical resistance for pipeline systems.

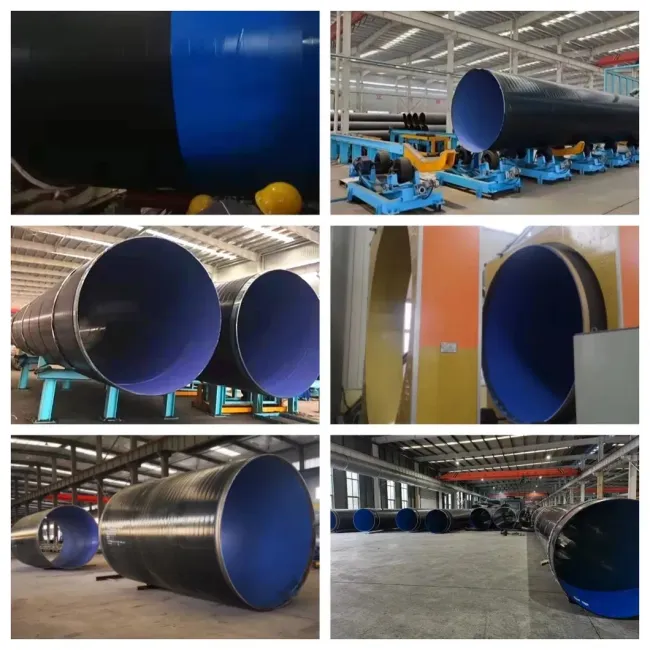

Complete Protection: Comprehensive epoxy powder coating for steel pipe both internal and external .
Smooth & Durable: Reduces fluid friction and ensures long-term pipeline integrity.
China Quality & Value: Cost-effective solutions from a trusted global manufacturer.

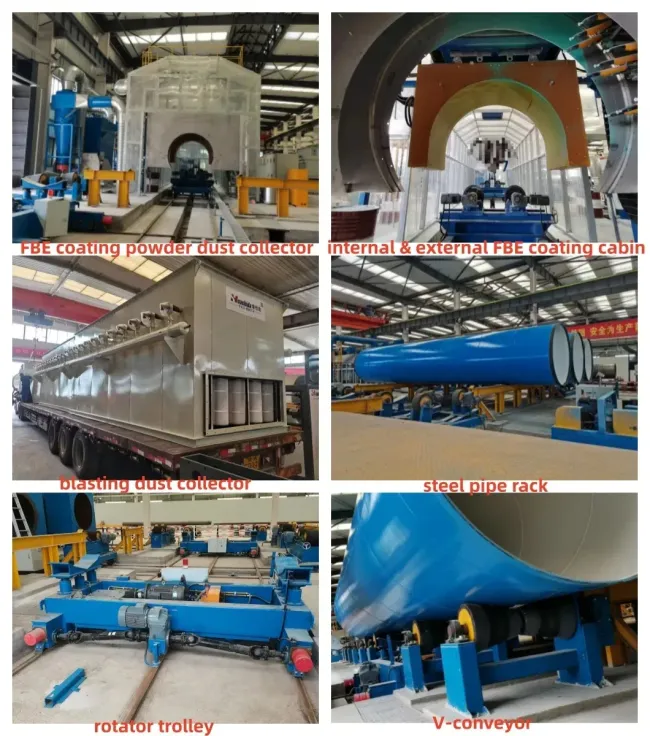

| Item | Process Flow |
| 1 | Upload pipes |
| 2 | pipes sprial conveyor |
| 3 | external blasting |
| 4 | internal blasting |
| 5 | Rust removal |
| 6 | intermediate frequency heating |
| 7 | FBE powder coating |
| 8 | Powder recycling system |
| 9 | load down pipe rack |
We also can make External 3LPE internal FEB powder coating Line click for detail
√ Advanced Technology & Stable Performance: Ensuring highly efficient and reliable operation.
√ High Automation: Significantly reduces labor costs and improves production efficiency.
√ Internationally Certified Quality: Superior anti-corrosion properties that meet global standards.
√ Turnkey Solutions: Comprehensive service from design and installation to commissioning and training.
√ Proven Expertise: Backed by 389 successful production lines worldwide and a team of 9 senior engineers.
√ Award-Winning Innovation: Recognized by a national-level expert workstation in China.
Question & Answer:
Q1. Pipe Diameter Range?
A: 48-219mm/219-1220 - mm/325-1600 - mm/508-2400 - mm/1000-3200mm
Q2. Descaling grade?
A: SA2.5
Q3. Anticorrosion coating standard?
A: Complies with SY/T0413-2002 ,GB/T23257-2009, German DIN 30670 , NACE/AMPP, DNV, and CNPC38-2002.
Q4. Delivery Time?
A: 2-3monthes after deposit.
Q5. Production output?
A: It is different output capability as different pipe diameter, the Max. is 3 to 8 km/day, and annual processing capacity is 2 million square meters (Φ508 mm).
Q6. Coating thickness?
A: 150~800um
Q7. After-sales service?
A: Before delivery all the equipment must be trial operated to confirm the quantity perfectly.
The warranty period is 12 months from the date of pick-up for mechanical part , and 6 months for the electrical part. The seller provides free technical services and provides training and guidance to buyer operators.
