Automatic Pre-Insulated Pipe Production Line with Dust-Free Planetary Cutting and Energy Saving for Smooth Inner and Outer Walls
Price:
US$200,000.00 - 1,000,000.00
MOQ:
1
Delivery Time:
60days
Brand:
huashida
Product Description
Puf Thermal Insulation PE Casing Pipe Extruder Production Line 110-2200mm
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-Insulated Pipe according to international standard.
HDPE jacket pipes are produced by vacuum calibration method, with smooth inner and outer walls, a long service life, good anti-corrosion and heat preservation performance, and excellent mechanical properties.

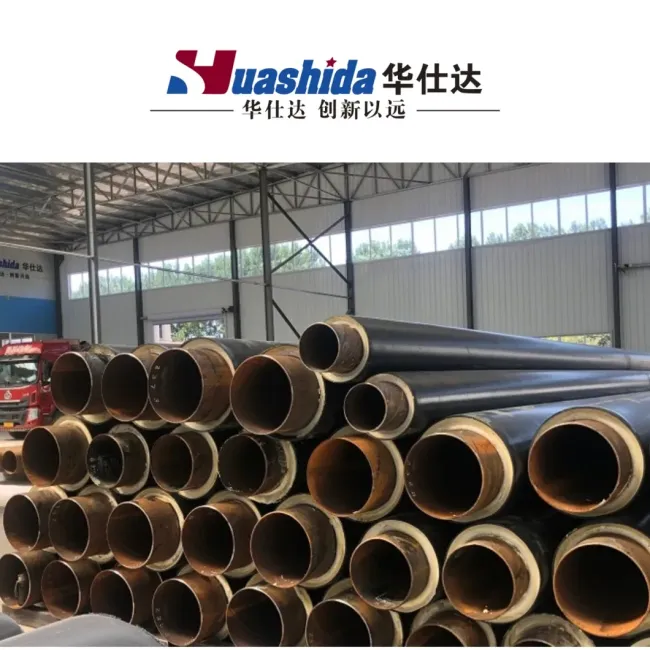

HDPE jacket pipe is out case of thermal insulating pipe, which is widely used in central heating, oil, nature gas and other industrial area.
Machine Advantages ---High-efficiency extruder gives larger output, stable performance.
For example
SJ90/33---600-700kg/h
SJ120/33---800-900kg/h
SJ150/33---1000-1200kg/h
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 48m |

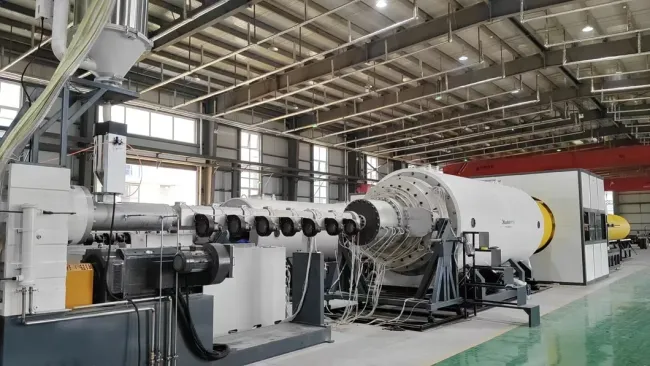

Production line composition:
-1set Vacuum loader
-1set Hopper dryer

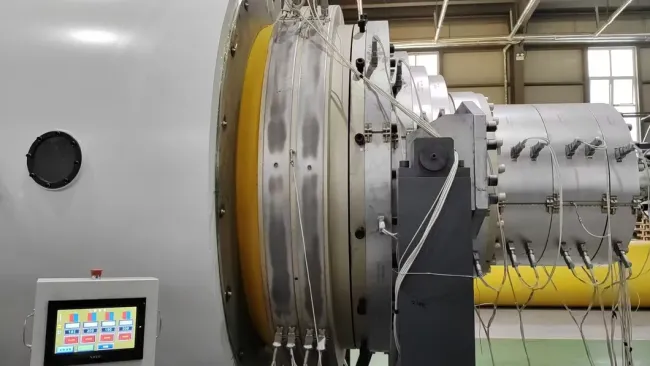

-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank

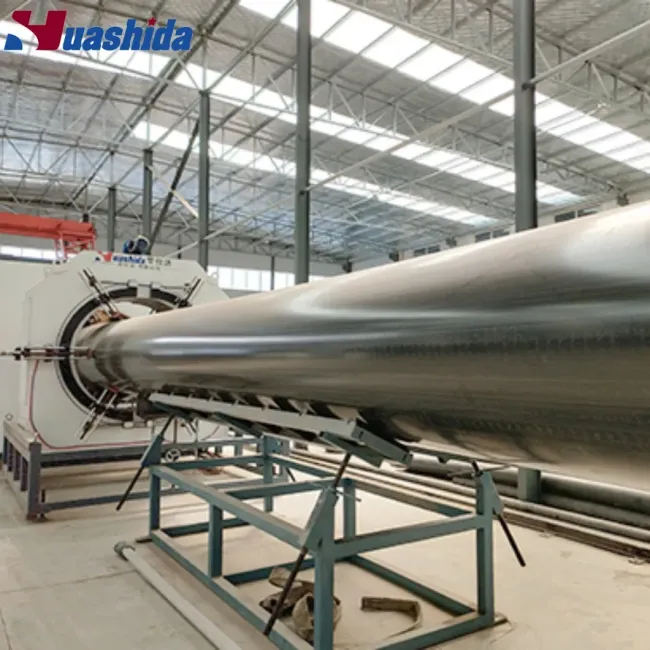

-1set Hauling machine

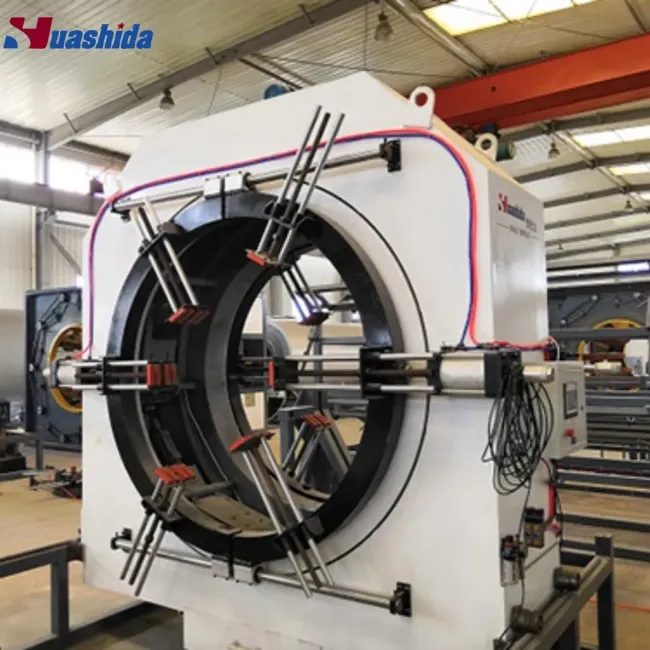

-1set Cutting machine

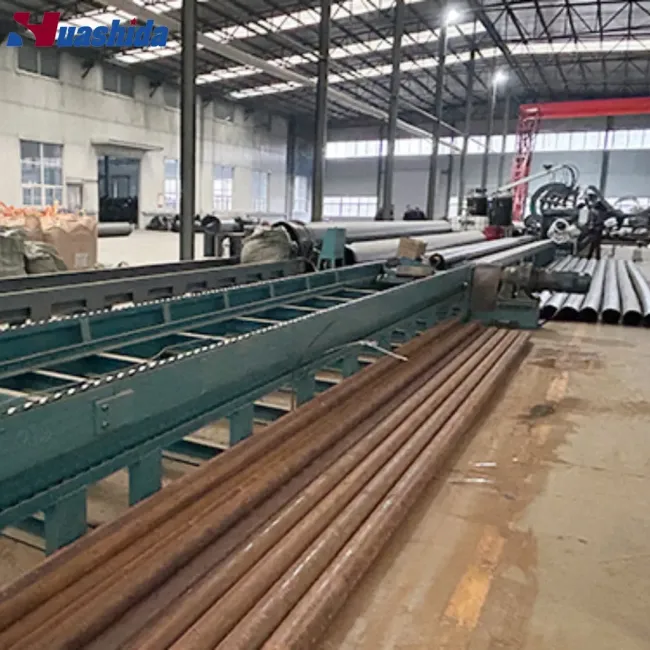

-1set Discharging Frame
-1set PLC
Technical Highlights:
| Single-screw extruder | Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials |
| Vacuum Calibration | Patented vacuum calibration system replaces traditional internal pressure methods |
| Smart Automation | Fully integrated PLC control system Real-time process monitoring |
| Production Capabilities | Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent) |
Features of the HDPE sleeve production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
