HDPE Jacket Pipe Extrusion Line with Thermal Insulation Dust-Free Planetary Cutting and Customizable Color
Price:
US$200,000.00 - 1,000,000.00
MOQ:
1
Delivery Time:
60days
Brand:
HUASHIDA
Product Description
HDPE Thermal Insulation Plastic Pipe Extrusion Line /Jacket Pipe Making Machine / Protective Pipe Extrusion Machine
Pre-Insulated HDPE Plastic Jacket Pipe Production Line:
![HDPE Thermal Insulation Plastic Pipe Extrusion Line /Jacket Pipe Making Machine / Protective Pipe Extrusion Machine]()

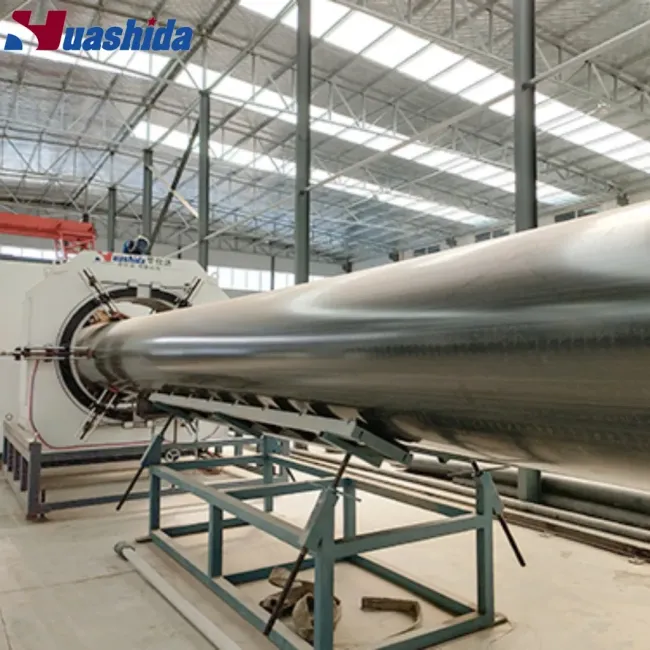

HDPE insulated pipe, also known as HDPE jacketed pipe, is a direct-buried polyurethane insulated pipe production line that uses a plastic outer jacket as the outer protective layer, a polyurethane-filled insulation layer in the middle, and a working steel pipe as the innermost layer. It is suitable for various hot and cold water, high- and low-temperature pipeline insulation projects. The HDPE jacketed pipe extrusion line is an efficient, high-speed, and energy-saving device that produces HDPE pipe for PU foam insulation and pre-insulated pipes in accordance with international standards. HDPE jacketed pipe is produced using a vacuum calibration method, resulting in smooth inner and outer walls, a long service life, excellent corrosion resistance, and superior mechanical properties.
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 48m |

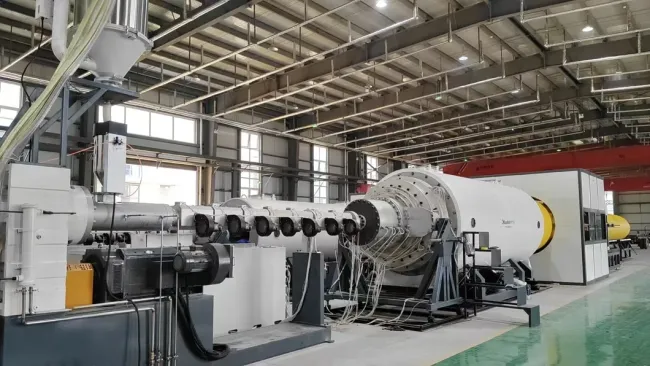

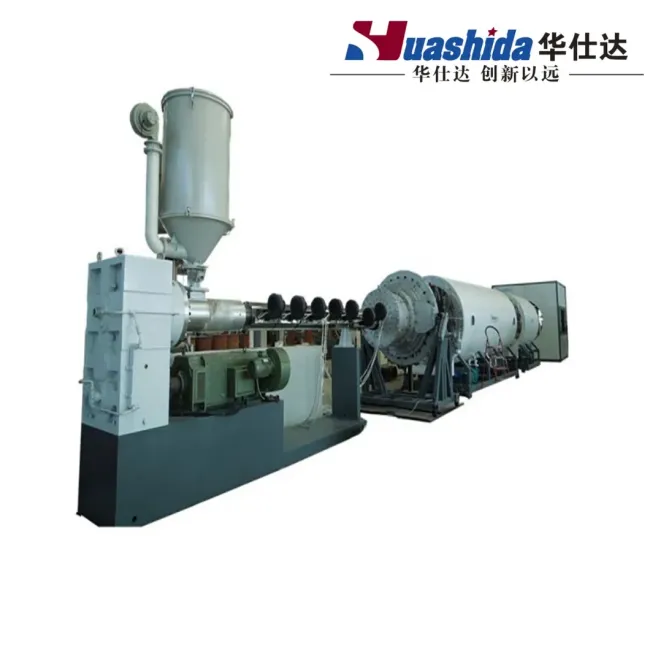

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder

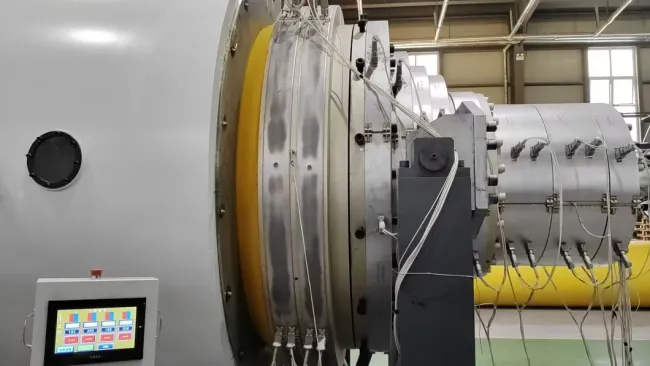

-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine

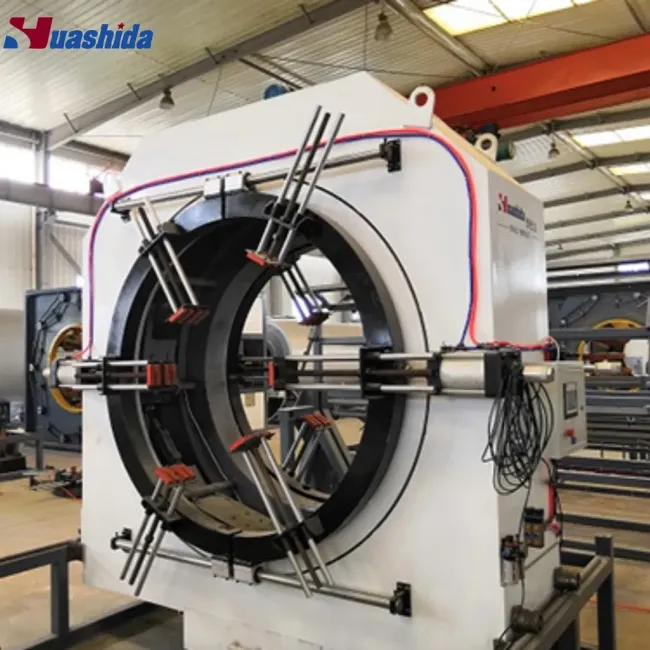

-1set Cutting machine
-1set Discharging Frame
-1set PLC
Technical Highlights:
| Single-screw extruder | Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials |
| Vacuum Calibration | Patented vacuum calibration system replaces traditional internal pressure methods |
| Smart Automation | Fully integrated PLC control system Real-time process monitoring |
| Production Capabilities | Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent) |
Features of the HDPE sleeve production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
