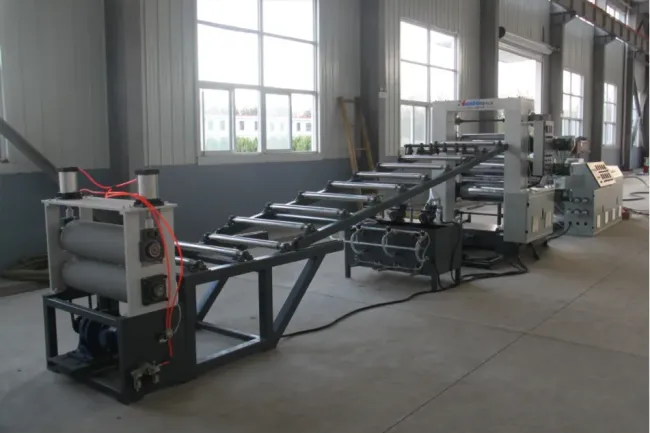

HDPE PP/PE/PS/HIPS/AB/PVC Plastic Sheet / Board single-layer / Multi Layer Extrusion Line

Sheet / Board single-layer / Multi Layer Extrusion Line:

Applicable materials: PP/PE/PS/HIPS/ABS/PVC
Scope: Single-layer, double-layer, multi-layer
Sheet thickness: 0.1-30mm
Sheet width: 800mm-1600mm
Sheet thickness: 0.5-3mm
Sheet width: 700mm-1200mm
It can be customized according to customer requirements.


The products of the sheet/plate production line are mainly used for joint sealing in thermal pipelines, oil and gas pipelines, water supply pipelines, etc., to ensure the anti-corrosion performance and structural stability of pipeline connections, as well as in municipal projects such as gas pipelines.



Product Parameters

(Model)	(width)	Thickness(MM)	Speed(m/min)	Outputr(kg/h)
SBJZ-800	650	0.18-1.5	1-25	80-320
SBJZ -1000	800	0.2-2.0	1-20	150-430
SBJZ -1500	1350	1-10	0.5-10	150-450
SBJZ -2000	1850	2-15	0.5-8	300-550
SBJZ -2200	2000	1-10	0.4-3	420-820
SBJZ -3000	2850	2-8	0.2-3	500-1200
SBJZ -7000	6800	2-6	0.2-2	600-1560

The extrusion line comprises equipment and devices as below:

Extruder
Screen changing device
Melt pump, T-die
3-rollr or multiple-roller calender
Cooling device
Edge cutter
Haul-off system
Plate cutter/Winder
Electrical control system

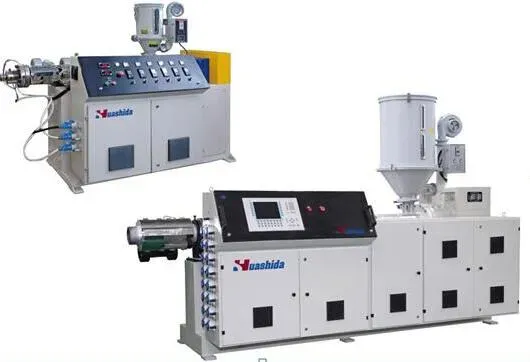

High efficiency single screw extruder

This PP/PE/PS/HIPS/AB/PVC sheet single-layer & multi-layer co-extruded production line adopts PE/PP high-efficiency single-screw extruder. The extrusion part adopts the forced water-cooling feeding section. The barrel is slotted. The power consumption of the main drive motor is greatly reduced; the large aspect ratio screw (30-38:1) , It has strong adaptability to materials and excellent plasticizing effect. It can customize specially designed screw for customers to use recycled materials and add calcium carbonate.

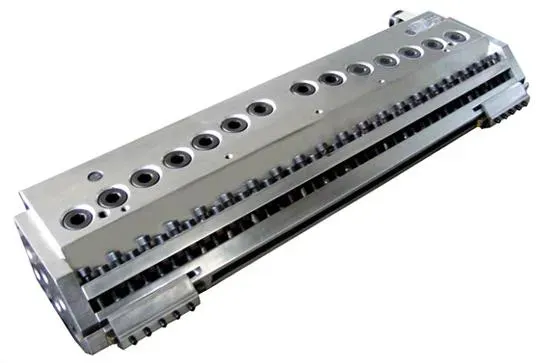

Extrusion head

This PP/PE/PS/HIPS/AB/PVC sheet single-layer & multi-layer co-extruded production line uses hanger-type runner structure, nitride polishing, special design, thickness adjustment operation is simple and accurate.

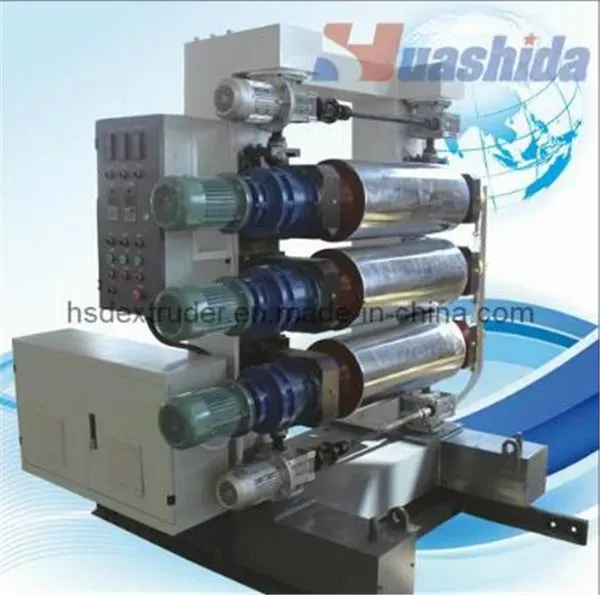

Three-roll calender

According to different width, vertical and inclined structures are adopted. Specially designed inner runner structure of roller ensures accurate roller temperature control and guarantes surface brightness of geomembrane and waterproof membrane. The thickness is kept over a wide range; the surface is plated with hard chrome, high strength, and long service life. An accurate mold temperature control system provides high quality assurance for sheet and board production.
More personalized production - anti-skid / pattern / art board sheet production line.

Cooling bracket

This PP/PE sheet single-layer & multi-layer co-extruded production line uses Aluminum-magnesium alloy cooling rollers ensure long service life.

Absorbing advanced technology, Qingdao Huashida Machinery Co., Ltd. developed an integrated unit with independent intellectual property rights--PP/PE/PS/HIPS/AB/PVC sheet single-layer & multi-layer co-extruded production line. As one of the first domestic manufacturers of plastic sheet and board production lines, Qingdao Huashida Machinery Co., Ltd. has strong technical advantages and rich experience in installation and commissioning. The performance of PP/PE/PS/HIPS/AB/ PVC  sheet single-layer & multi-layer co-extrusion line produced by our company has reached the international advanced and domestic leading level.
