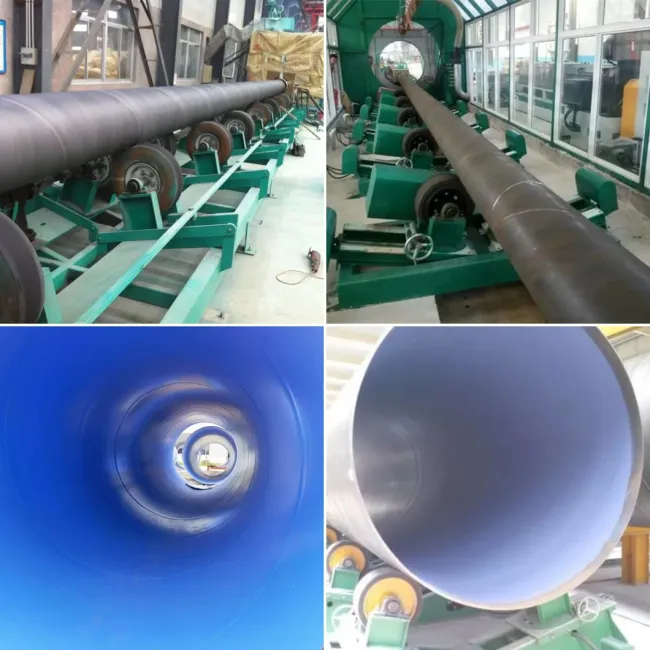

Automatic 3PE Coating Line for Steel Pipes with 50-4200mm Specification and 3LPE Anti-Corrosion

The 3PE (Three-Layer Polyethylene) coating is an advanced anti-corrosion system consisting of fusion-bonded epoxy (FBE) as the inner layer, adhesive (AD) as the bonding middle layer, and polyethylene (PE) as the protective outer layer.
This multi-layer structure provides excellent mechanical strength, superior electrical insulation, stable processing performance, and environmental sustainability, making it ideal for oil and gas pipelines, urban water supply, and district heating networks.

Pipe Loading → Conveying → Shot Blasting (Rust Removal) → Induction Heating → FBE Coating → AD & PE Extrusion Coating → Water Cooling → Conveying → Pipe End Grinding → Unloading

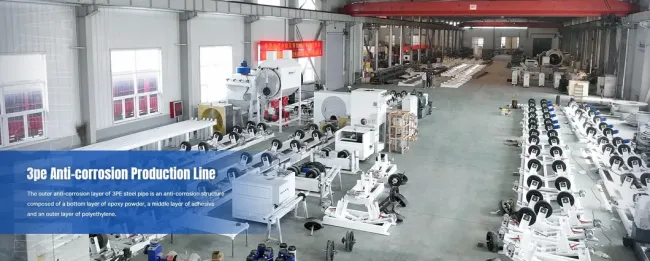

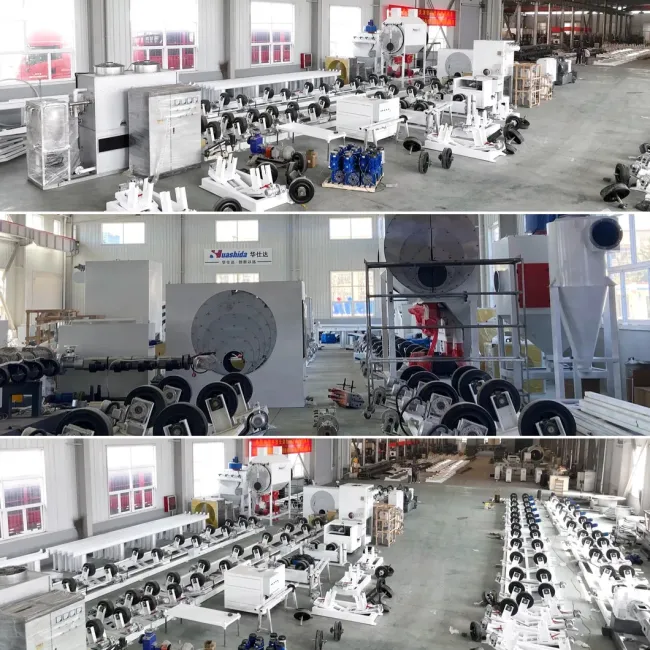

Main Equipment Composition

Surface Treatment: Shot blasting machine, cyclone dust collector, pulse dust remover

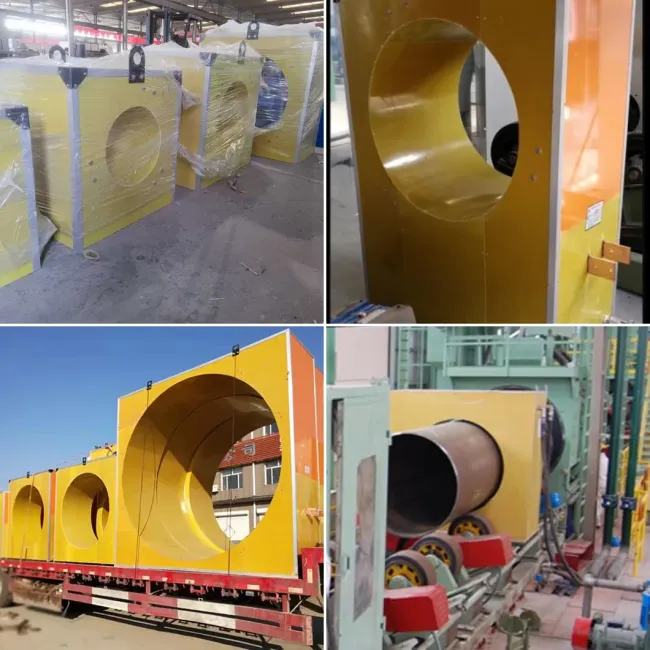

Heating System: Induction heating equipment

Coating System: FBE powder coating unit, adhesive extruder, PE extruder

Cooling System: Water spraying and cooling device

Conveying System: Pipe loading/unloading platform, turning rollers

Control System: PLC automatic control system

Auxiliary Equipment: PE beveling machine, hydraulic lifting system, exhaust & ventilation system

Cost Reduction - High sealing performance, energy-saving, and environmentally friendly.

Long Service Life - Easy installation and construction, lifespan up to 30-50 years.

Excellent Impact Resistance - Performs well even under low temperatures; low water absorption.

Superior Anti-Corrosion Performance - Reliable protection with simple and economical process.

Fully Automatic Operation - PLC control with intelligent sensors for position, speed, and energy monitoring ensures precision and efficiency.

3-layer PE coated steel pipes are widely used in:

Oil and gas transmission pipelines - providing long-term protection against corrosion and external damage.

Urban gas and water supply systems - ensuring safe, clean, and reliable transport of fluids.

District heating networks - maintaining insulation and corrosion resistance under high-temperature conditions.

Underground and industrial anti-corrosion projects - offering durable protection for buried and exposed steel pipelines.

Global Application:

This advanced coating technology has been successfully applied in major infrastructure projects both domestically and internationally.

Products are exported to Europe, the Middle East, Central Asia, Africa, Russia, and other regions worldwide.

Our team

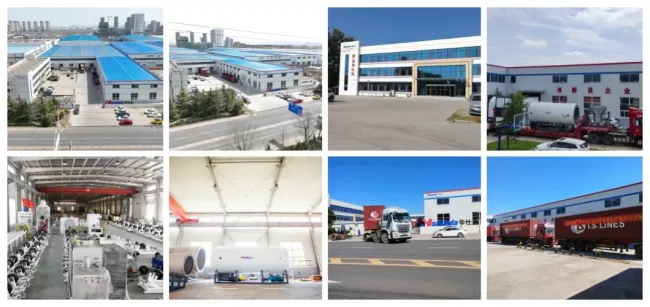

Delivery
