Automatic Computerized Heat Shrinkable Tape Coating Line for 800-1600mm Width Municipal and Oil Pipeline Protection
The Qingdao Huashida heat shrinkable tape production line is composed of a base material extrusion unit, an adhesive coating unit, a heat shrinkable sleeve forming system, and various auxiliary components.
This advanced line offers low energy consumption, minimal noise, adjustable production speed, and a high degree of automation for stable and efficient operation.

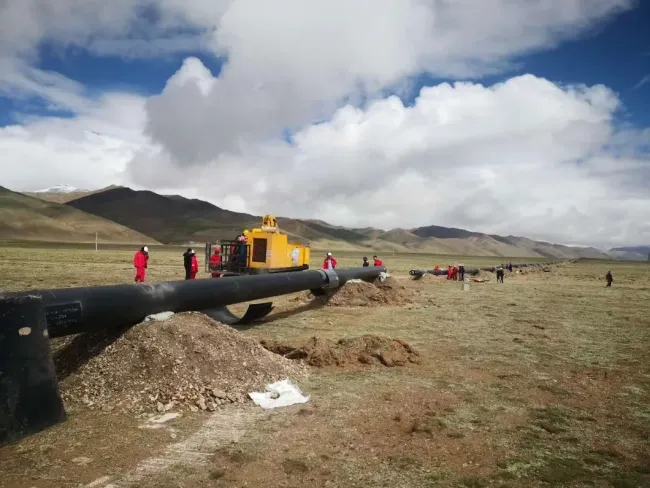

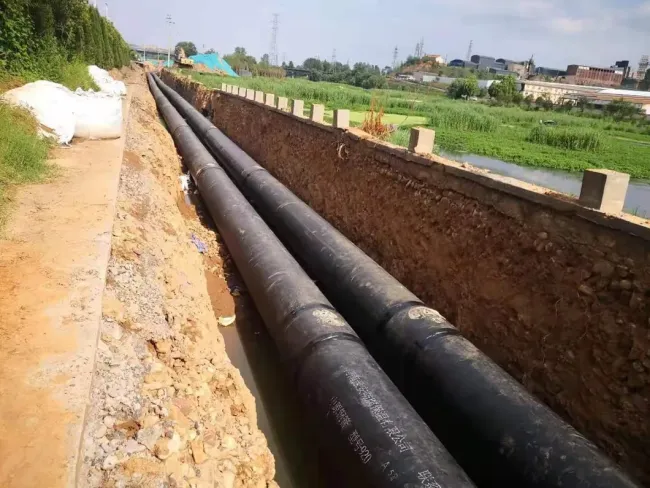

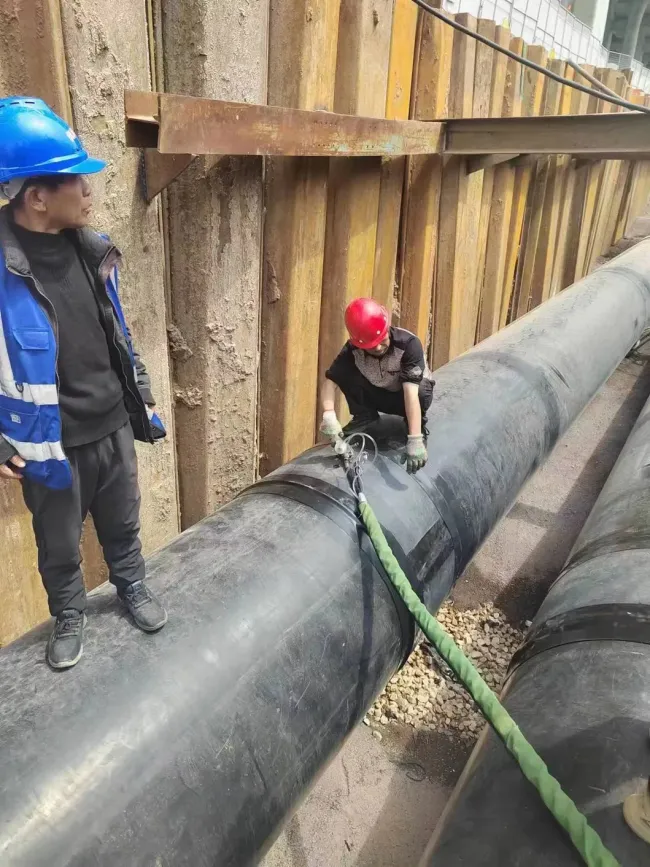

It is capable of producing heat shrinkable tapes ranging from 800 mm to 1600 mm in width, which are extensively applied in municipal pipeline systems, oil and gas transmission lines, anti-corrosion steel pipe protection, and thermal insulation pipelines.
Typical applications cover hollow wall winding pipes, steel belt reinforced spiral pipes, plastic-steel composite pipes, double-wall corrugated pipes, PVC-U sewage pipes, PU insulated (black-yellow jacket) pipes, and 3PE steel pipes.
| Item | Specification |
| Applicable Material | PP / PE / PS / HIPS / ABS / PVC |
| Layer Structure | Single / Double / Multi-layer |
| Sheet Thickness | 0.1 - 30 mm |
| Sheet Width | 800 - 1600 mm |
Adopts a high-efficiency PE/PP single-screw extruder. The extrusion section is equipped with a forced water-cooled feeding zone, which significantly reduces the power consumption of the main drive motor. The extruder features a large length-to-diameter (L/D) ratio screw, providing strong material adaptability and excellent plasticizing performance.

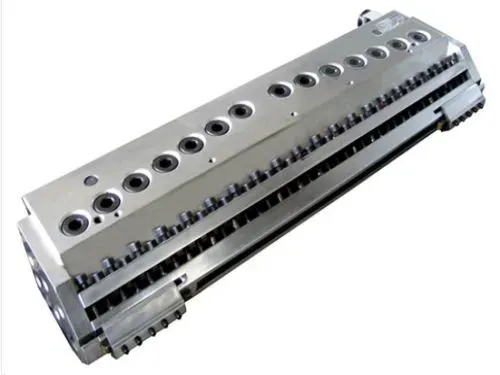

Features a coat-hanger type flow channel design with nitrided and polished surfaces. The specially designed thickness adjustment system ensures easy operation and high precision control.

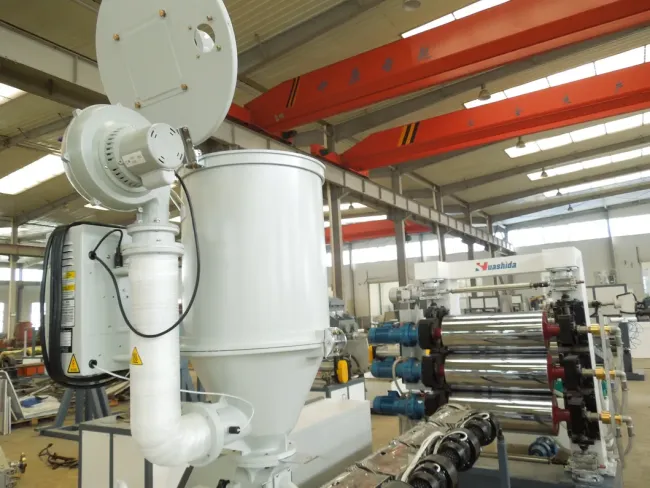

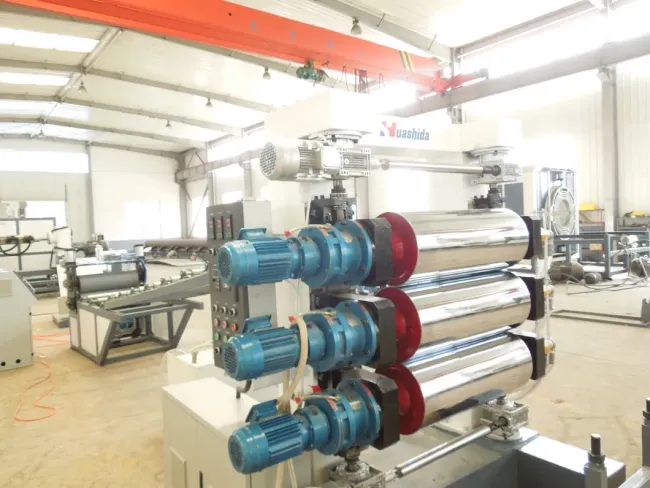

Depending on the product width, the calender can be configured in vertical or inclined structures. The specially designed internal flow channel of the rollers ensures precise temperature control, guaranteeing excellent surface gloss for geomembranes and waterproof sheets. The high-precision mirror rollers are hard-chrome plated for superior strength and long service life.

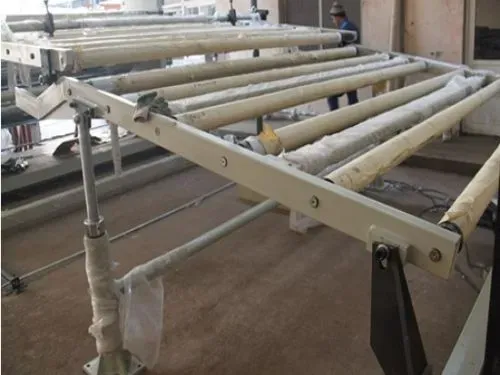

Supports and cools the freshly extruded heat shrinkable tape, ensuring flatness and uniform thickness.

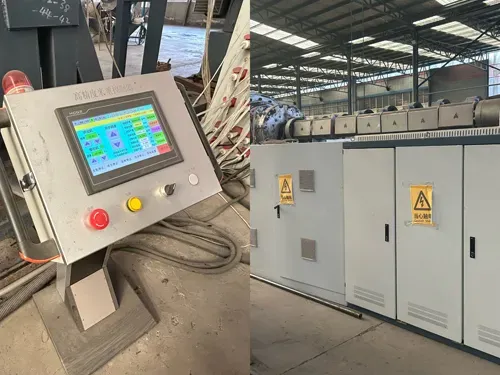

Monitors and adjusts the operational parameters of the production line in real time to ensure stable, safe, and efficient production.
1.Intelligent Control: Advanced automation system enables synchronized operation, precise coordination, and user-friendly adjustments.
2.Energy Efficiency: Engineered for low power consumption and extended service life through optimized mechanical and electrical design.
3.Customized Solutions: Production lines can be fully tailored to meet specific customer requirements, with continuous technical support and maintenance.
4.Safety and Reliability: PLC-integrated control system ensures stable performance, enhanced safety, and reduced resource consumption.
5.Comprehensive Service: Provides complete project assistance, including detailed presentations, video demonstrations, market insights, and cost analysis.
1.Heat Shrinkable Tapes - Mass production of high-quality tapes for pipe protection and insulation.
2.Heat Shrinkable Sleeves - Efficient manufacturing of sleeves for pipeline joints and fittings.
3.Anti-Corrosion Wraps - Production of wraps to prevent corrosion on steel pipes and other metal surfaces.
4.Insulation Outer Protective Layers - Creating protective layers for thermal insulation pipes to ensure durability and environmental resistance.

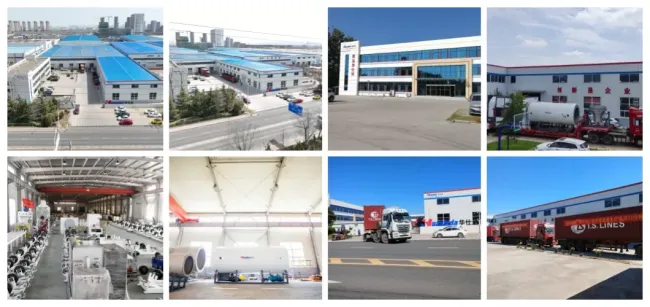

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
