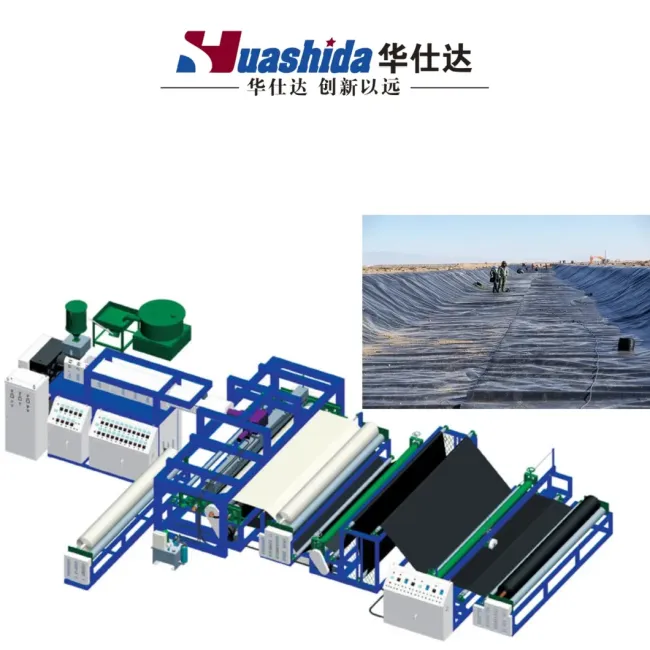

High Efficiency Geo-Membrane Film Extrusion Line with 0.1-3.0mm Thickness and 8000mm Width for Plastic Geomembrane Production

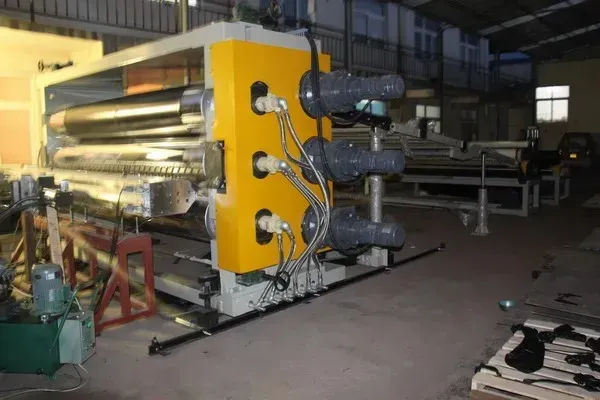

PVC/PP/PE/EVA/PET 3-8m Engineering Construction Plastic Geomembrane film Waterproof coiled Material Extrusion Production Line
Maximum production width: 3000-8000mm (customizable)
Thickness range: 0.1-3.0mm (customizable)
Product Mainly Material : PE, PP, PET, PVC, EVA etc.
High Efficiency: Output up to 1,200 kg/h (model SJ200/33).
Automation: Computerized control for consistent quality and reduced labor.
Robust Design: Single-screw extruder with environmental stress-crack resistance.
Temperature Adaptability: Suitable for extreme climates.
High strength and toughness: longitudinal/transverse tensile strength ≥28 MPa, puncture resistance ≥480 N.
Intelligent operation: PLC+human-machine interface.
The Huashida Geo-Membrane Film Extrusion Line is a state-of-the-art solution for producing high-quality PE films, including geotextiles, agricultural films, and geo-membranes. Produces films up to 8000mm wide and 0.1-3.0mm thick. Designed for precision, efficiency, and versatility, this extrusion line is ideal for applications in environmental protection, civil engineering, and industrial projects.
| Model | Film Width | Film Thickness | Capacity | Total Power | Dimension (m) |
|---|---|---|---|---|---|
| SJ120/33 | 3000 mm | 0.5-2.0 mm | 500 kg/h | 250 kW | 20 × 4 × 2.5 |
| SJ200/33 | 8000 mm | 0.8-3.0 mm | 1200 kg/h | 550 kW | 22 × 10 × 2.5 |
The geomembrane extrusion production line is suitable for:

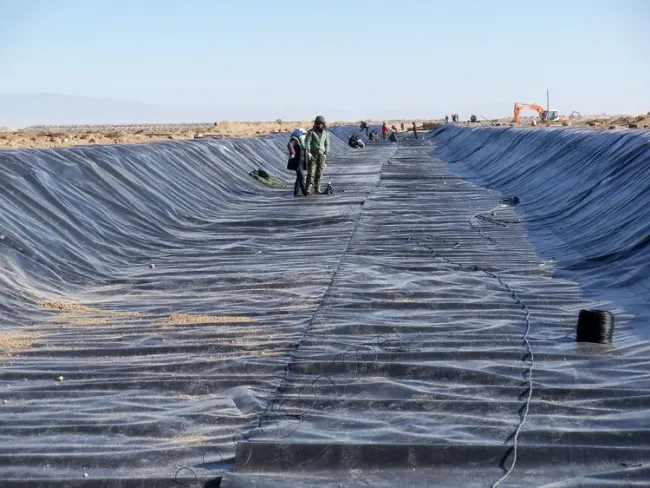

Landfill sites and wastewater treatment plants.
Subway systems, tunnels, and air-raid shelters.
Water dams, artificial lakes, and industrial waterproofing.
Geotextiles for civil engineering projects.
Agricultural films for environmental protection.
Geomembrane Laminating & Extrusion Line for Landfill, Tunnel, and Reservoir Projects
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods
Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;
