Computerized Heat Shrink Sleeve Manufacturing System with Basic Film Extrusion Line and Adhesive Coating for PE Hollow Wall Spiral Pipe
The Qingdao Huashida heat shrinkable tape and sleeve production line consists of a base material extrusion line, adhesive coating line, heat shrinkable sleeve forming equipment, and auxiliary devices.
The system features low energy consumption, low noise, adjustable speed, and high automation. It is capable of producing heat shrinkable tapes and sleeves with widths ranging from 800 mm to 1600 mm.
These products are widely used for municipal pipelines, oil and gas pipelines, steel pipe corrosion protection, and thermal insulation pipe systems. The finished heat shrinkable materials feature high adhesion, excellent corrosion resistance, and stable shrink performance, meeting international pipeline protection standards.
Applicable pipe types include:
Hollow-wall winding pipe
Steel belt reinforced spiral corrugated pipe
Plastic-steel composite pipe
PVC-U sewage pipe
PU insulated pipe (black-yellow jacket)
3LPE steel pipe
Line Configuration
I. PE Base Film Extrusion Line (RS-800):
1 SJ-65×30 Single Screw Extruder
2 T-die Mold
3 Three Calender Roller
4 Roll Temperature Control System

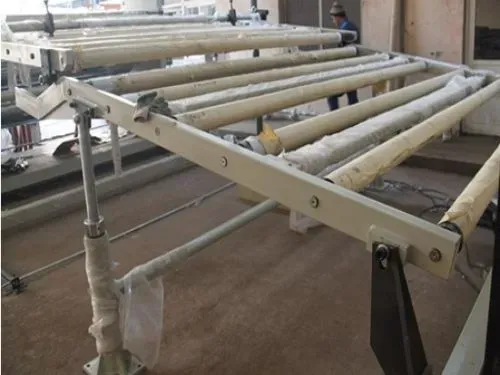

5 Cooling Bracket
6 Haul-off Unit
7 Coiler
II. Adhesive Mixing & Coating Line (TJ-700):
1 Unpowered Uncoiler
2 Film Drawing Mill
3 Reactor
4 Adhesive Coating Mold Set
5 Cooling Water Tank
6 Haul-off Unit
7 Coiler Platform
III. Optional Three-layer Reinforced Type
Fiber Uncoiling Device
Fiber Heating Device
Fiber Flattening Device
| Item | Specification |
| Applicable Material | PP / PE / PS / HIPS / ABS / PVC |
| Layer Structure | Single / Double / Multi-layer |
| Sheet Thickness | 0.1 - 30 mm |
| Sheet Width | 800 - 1600 mm |
Adopts a high-efficiency PE/PP single-screw extruder. The extrusion section is equipped with a forced water-cooled feeding zone, which significantly reduces the power consumption of the main drive motor. The extruder features a large length-to-diameter (L/D) ratio screw, providing strong material adaptability and excellent plasticizing performance.

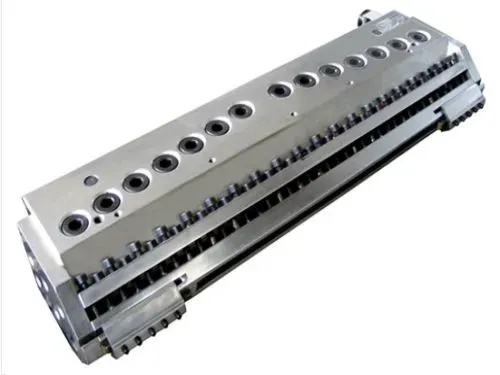

Features a coat-hanger type flow channel design with nitrided and polished surfaces. The specially designed thickness adjustment system ensures easy operation and high precision control.
Depending on the product width, the calender can be configured in vertical or inclined structures. The specially designed internal flow channel of the rollers ensures precise temperature control, guaranteeing excellent surface gloss for geomembranes and waterproof sheets. The high-precision mirror rollers are hard-chrome plated for superior strength and long service life.
Supports and cools the freshly extruded heat shrinkable tape, ensuring flatness and uniform thickness.
Monitors and adjusts the operational parameters of the production line in real time to ensure stable, safe, and efficient production.
1.Intelligent Control: Highly automated with synchronized operation and easy adjustment.
2.Energy Efficient: Optimized design for low energy use and long service life.
3.Customized Service: Tailor-made solutions with lifelong technical support and maintenance.
4.Safe and Reliable: PLC-based control ensures safety, energy, and water savings.
5.Comprehensive Support: Includes PPT presentations, video library, market and cost analysis to support customer projects.
1.Heat Shrinkable Tapes - Mass production of high-quality tapes for pipe protection and insulation.
2.Heat Shrinkable Sleeves - Efficient manufacturing of sleeves for pipeline joints and fittings.
3.Anti-Corrosion Wraps - Production of wraps to prevent corrosion on steel pipes and other metal surfaces.
4.Insulation Outer Protective Layers - Creating protective layers for thermal insulation pipes to ensure durability and environmental resistance.
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
