Computerized Heat Shrink Sleeve Making Line with High Adhesion and Stable Shrinkage for Municipal Pipelines

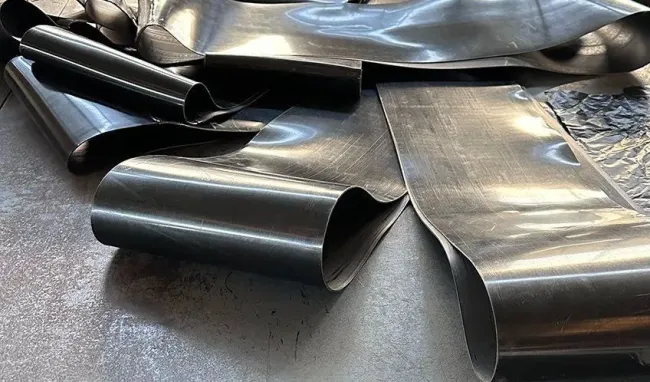

Qingdao Huashida Radiation Cross-linked Heat-shrinkable Tape Production Line, primarily used for manufacturing heat-shrinkable tapes and sleeves specifically designed for municipal pipelines, oil and gas pipelines, and steel pipe corrosion protection.

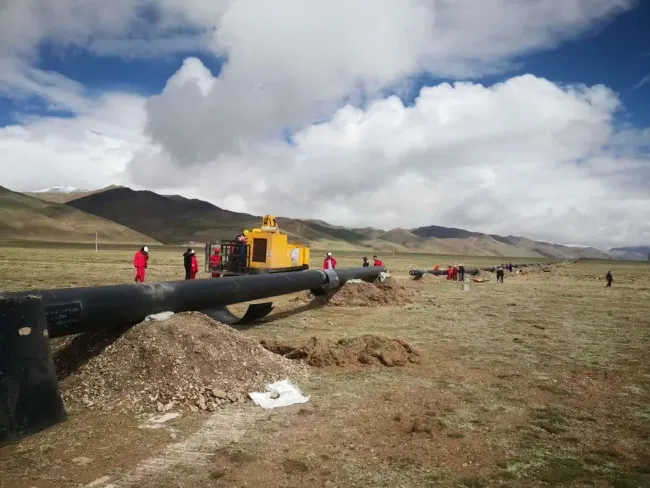

This product features high adhesion, outstanding corrosion resistance, and stable shrinkage properties, widely applied in:
Hollow-wall winding pipe

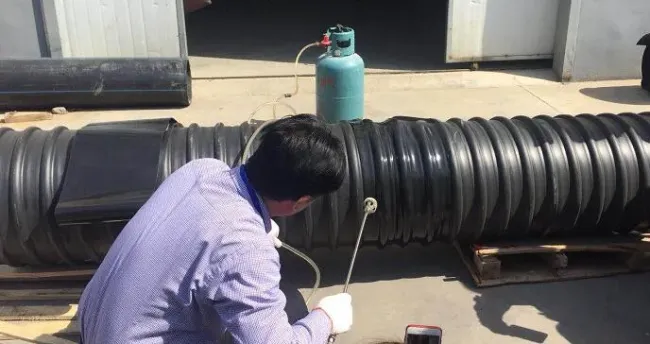

Steel-reinforced corrugated pipe
Plastic-steel composite pipe
PVC-U sewage pipe
PU insulated pipe (black-yellow jacket)
3PE corrosion-resistant steel pipe
Cross-linked Heat Shrinkable Belt Production Line (model SRSG-800 )
| RS-800 Basic film extrusion line (RS-800) | |||
| 1 | SJ-65×30 single screw Extruder | 1 Set | |
| 2 | T-Die mold | 1 Set | |
| 3 | 3-Calender Roller | 1 Set | |
| 4 | Roll temperature control system | 1 Set | |
| 5 | Cooling Bracket | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler | 1 Set | |
| TJ-700 adhesive mixing and coating line (TJ-700) | |||
| 1 | Unpowered uncoil device | 1 Set | |
| 2 | Basic film drawing mill | 1 Set | |
| 3 | reactor | 1 Set | |
| 4 | Adhesive coating mold group | 1 Set | |
| 5 | Cooling water tank | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler platform | 1 Set | |
Main Technical Parameters
| Item | Specification |
| Applicable Material | PP / PE / PS / HIPS / ABS / PVC |
| Layer Structure | Single / Double / Multi-layer |
| Sheet Thickness | 0.1 - 30 mm |
| Sheet Width | 800 - 1600 mm |

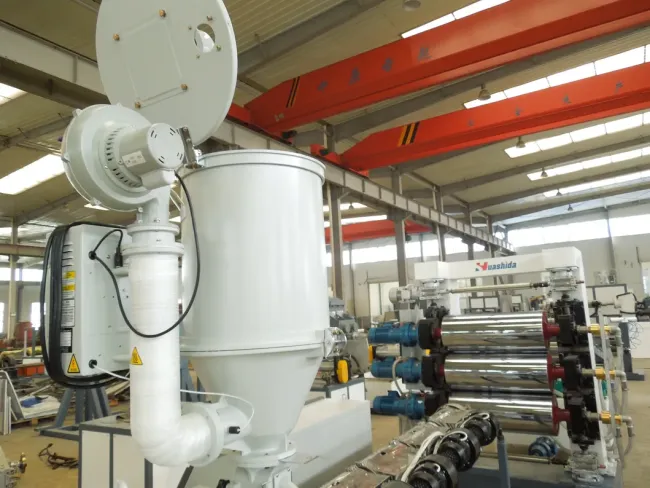

Adopts a high-efficiency PE/PP single-screw extruder. The extrusion section is equipped with a forced water-cooled feeding zone, which significantly reduces the power consumption of the main drive motor. The extruder features a large length-to-diameter (L/D) ratio screw, providing strong material adaptability and excellent plasticizing performance.

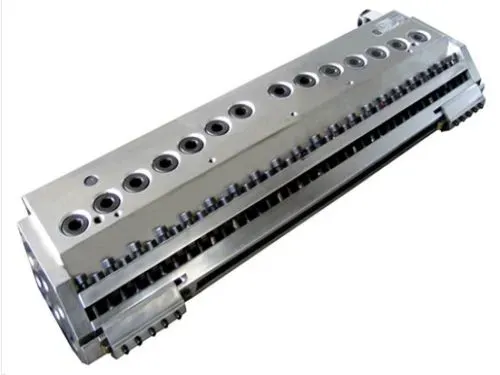

Features a coat-hanger type flow channel design with nitrided and polished surfaces. The specially designed thickness adjustment system ensures easy operation and high precision control.

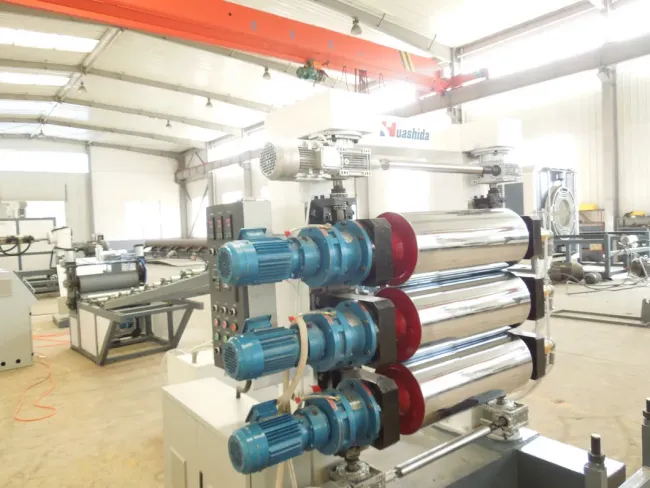

Depending on the product width, the calender can be configured in vertical or inclined structures. The specially designed internal flow channel of the rollers ensures precise temperature control, guaranteeing excellent surface gloss for geomembranes and waterproof sheets. The high-precision mirror rollers are hard-chrome plated for superior strength and long service life.

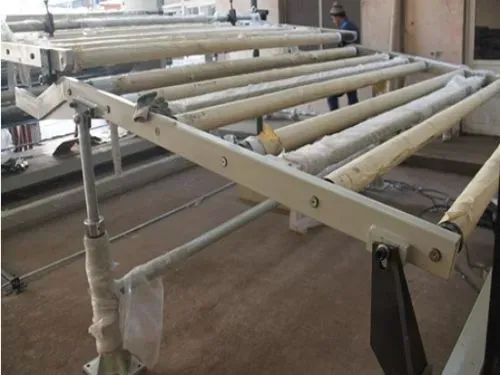

Supports and cools the freshly extruded heat shrinkable tape, ensuring flatness and uniform thickness.

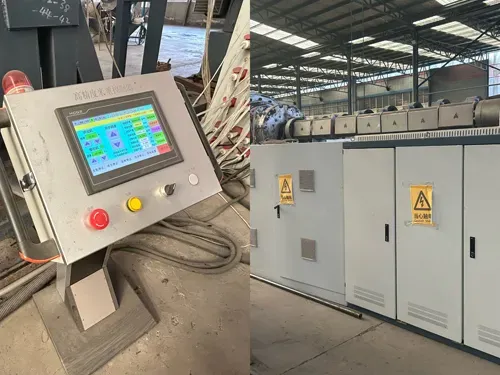

Monitors and adjusts the operational parameters of the production line in real time to ensure stable, safe, and efficient production.
1.Intelligent Control: Advanced automation system enables synchronized operation, precise coordination, and user-friendly adjustments.
2.Energy Efficiency: Engineered for low power consumption and extended service life through optimized mechanical and electrical design.
3.Customized Solutions: Production lines can be fully tailored to meet specific customer requirements, with continuous technical support and maintenance.
4.Safety and Reliability: PLC-integrated control system ensures stable performance, enhanced safety, and reduced resource consumption.
5.Comprehensive Service: Provides complete project assistance, including detailed presentations, video demonstrations, market insights, and cost analysis.

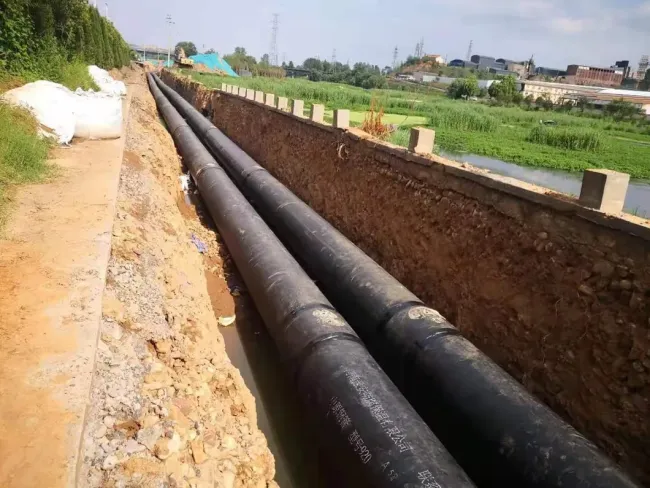

1.Heat Shrinkable Tape -- Production of anti-corrosion and thermal insulation protective layers for pipelines.

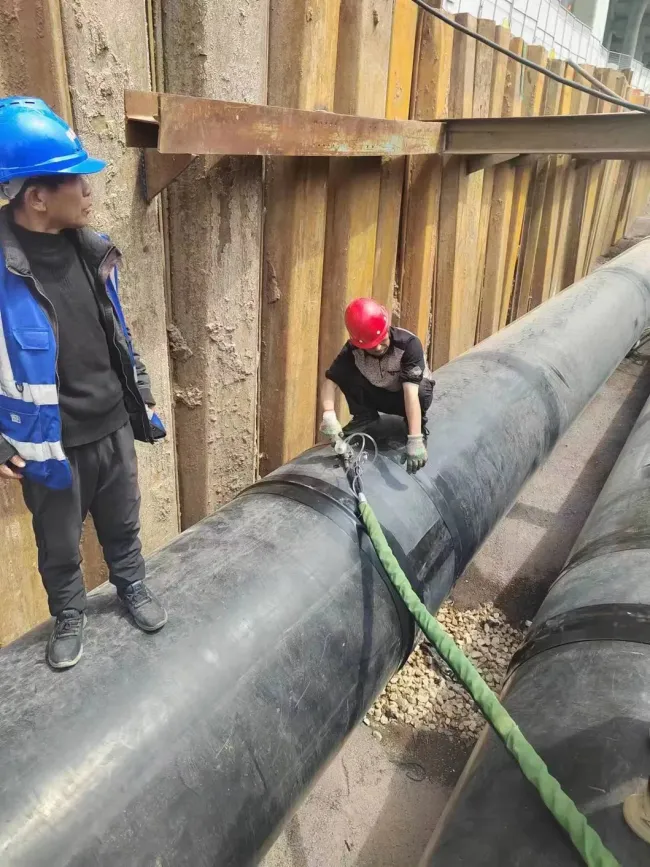

2.Heat Shrinkable Sleeve -- Anti-corrosion and waterproof encapsulation for pipeline joints.
3.Anti-Corrosion Wraps -- Production of external anti-corrosion coatings for steel pipes.
4.Insulation Outer Layer -- Outer protective layer for polyurethane insulated pipes.

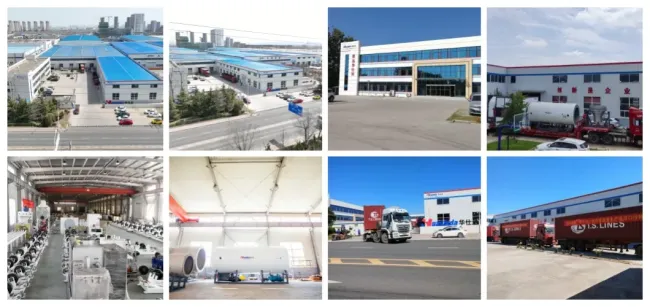

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
