Fully Automated Cold Applied HDPE Anti-Corrosion Wrap Tape with 1000mm Max Width and 0.1-0.5mm Adhesive Coating for Pipeline Protection

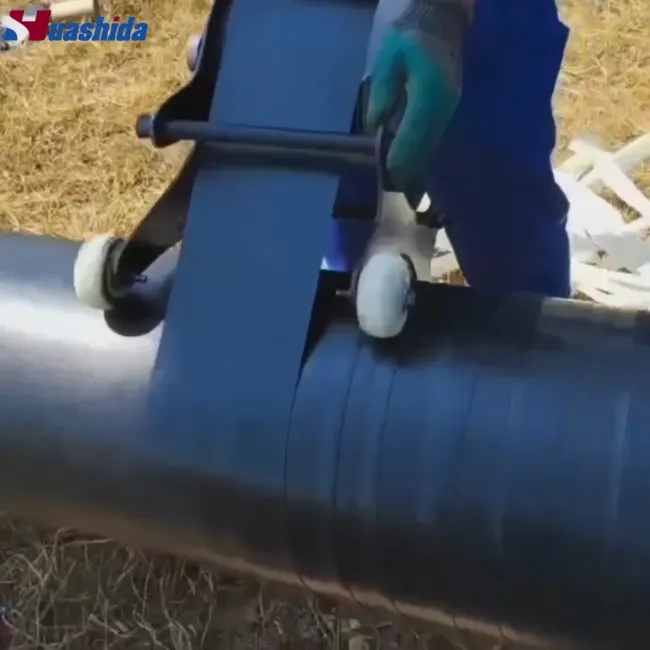

HUASHIDA Cold-applied anticorrosion tape making machine is designed for producing the PE tape for protection of underground or overhead pipelines in oil, gas, petrochemical, and wastewater industries.
Whether you need a cold-applied tape production line or cold-applied tape products, we can provide them for you.
The system is fully automated, reducing labor costs while maintaining a high standard of quality and consistency. The machine is ideal for use in high-demand industries where pipeline integrity is critical, and the risk of corrosion must be minimized.
This HUASHIDA tape-making machine is the ideal equipment for producing durable and reliable cold-applied tapes, essential for protecting pipelines in the oil, gas, and water industries against corrosion.

Features:

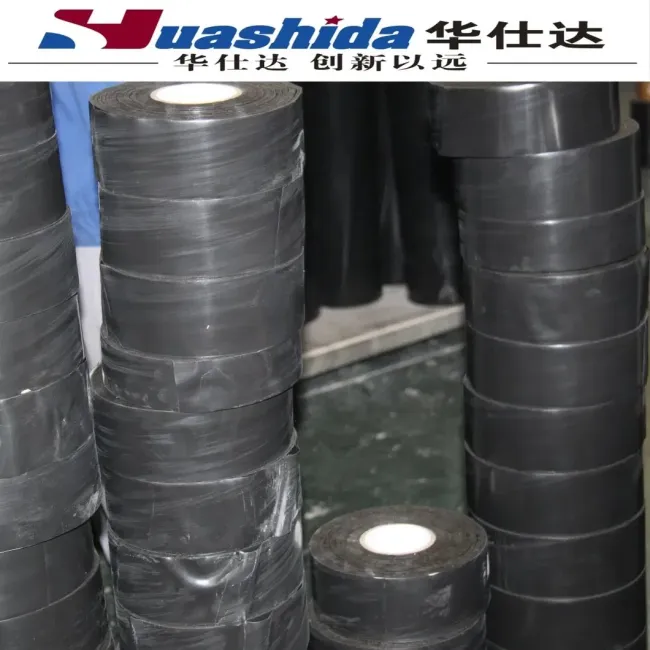

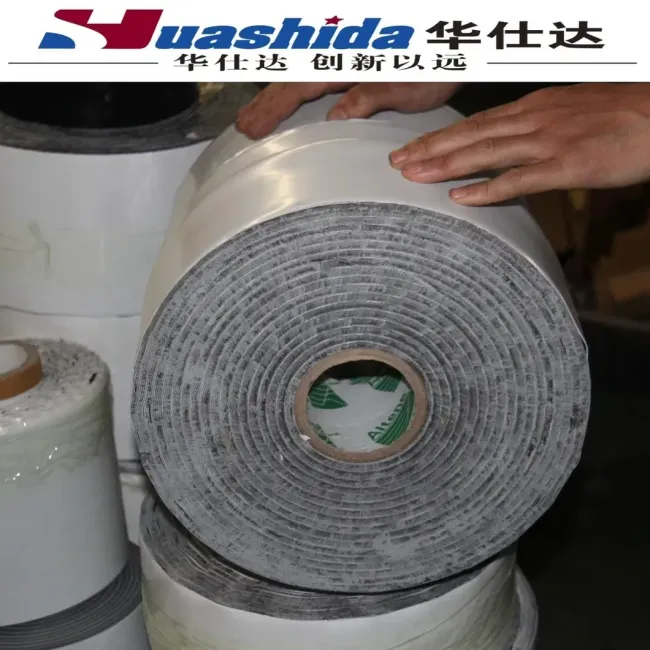

Product Type:   PE Cold Applied Anticorrosion Wrap Tape
Material:          High-Quality Polyethylene (PE)
Basing Tape Thickness:        0.2 - 1.0mm (adjustable)
Adhesive Coating Thickness:     0.1 - 0.5mm (adjustable)
Max. Basing Tape Width:           1000mm
Production Capacity:                 160 - 200 kg/H
Automation:             Fully Automatic & Computerized Control

The process of making cold-wrapped tape:

1.Base Film Extrusion
Raw Material Preparation: Polyethylene (PE) is prepared as the base film raw material.
Extrusion Molding: The raw material is heated and melted in an extruder, then molded through a die to form a continuous base film.
Cooling and Shaping: The extruded base film is cooled and shaped using cooling rollers to ensure uniform thickness and consistency.

2.Adhesive Coating
Adhesive Preparation: Butyl rubber are prepared to ensure proper viscosity and stability.
Coating Process: The adhesive is evenly applied to one or both sides of the base film using coating equipment to form an adhesive layer.

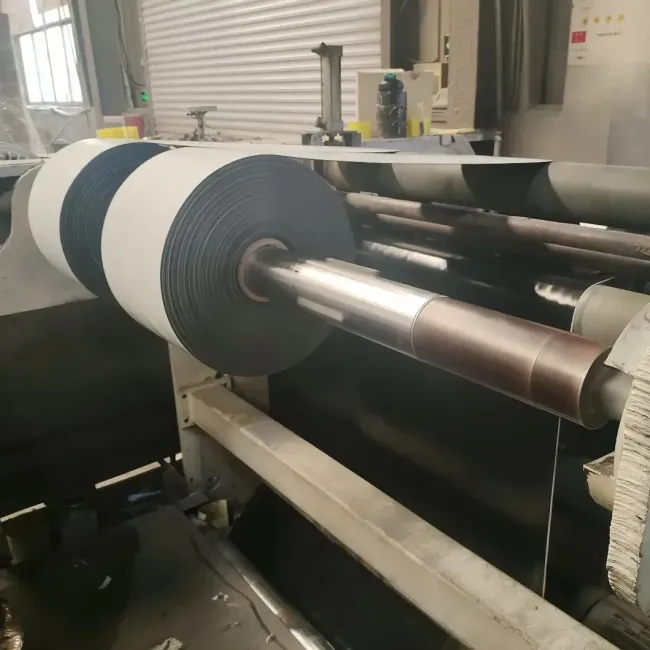

3.Slitting
Slitting Preparation: The coated base film roll is prepared, and the parameters of the slitting equipment are adjusted.
Slitting Operation: The wide roll is slit into cold-applied tapes of the required width using slitting equipment.
Winding and Packaging: The slit cold-applied tapes are wound into rolls, packaged, and prepared for shipment.

PE basing file extrusion line Equipment

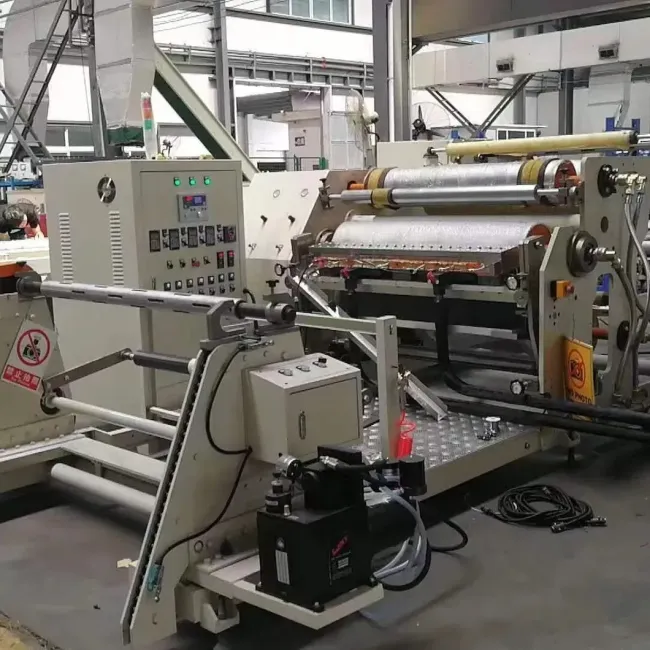

Adhesive coating machine Equipment

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!

Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
3LPE Steel Pipe Anti-Corrosion Coating Line
Hollow Wall Spiral Pipe Production Line
PE/PP Geo Membrane Production Line
PE/PP Sheet Board Extrusion Line
Rubber Foam Insulation Pipe Production Line
Radiation Cross-Linked PE Heat Shrinkable Sleeve
Electro Fusion Sleeve
Portable Hand Extrusion Welder
HDPE Welding Wire Welder Rods

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines;


International Trading show



Certifications



Clients case
