Complete Coating Solution: FBE, Internal/External 3LPE & PU Insulation Line for Steel Pipes
Product Description
Complete Coating Solution: FBE, Internal/External 3LPE & PU Insulation Line for Steel Pipes
Steel Pipe External Internal 2lpe 3lpe Fbe 3PE Epoxy Powder Liquid Spray Coating Line is used for anti-corrosion coating steel pipe, which is widely used in varieties of engineering construction, especially in gas and oil industries, and in water transportation.
The coating line can be applied to FBE coating(epoxy powder), Two-layer extruded polyethylene coating (2LPE), Two-layer polypropylene coating (2LPP) and Three-layer extruded polyethylene coating (3LPE).
The pipe coating line meets the requirements of producing the steel pipe with coating which meets international standards DIN30670-1991,CAN/ Z245.21-2010,ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009,GOST 9.602-2016, GOST R 51164-98, GOST31448, GOST31445
The coating line mainly consists of the following units:
-steel pipe conveyor system
-shot/sand blasting system
-dust collector system
-pipe induction heating system
-epoxy powder spraying system
-PE&Adhesive coating system
-water cooling system
-pipe end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system

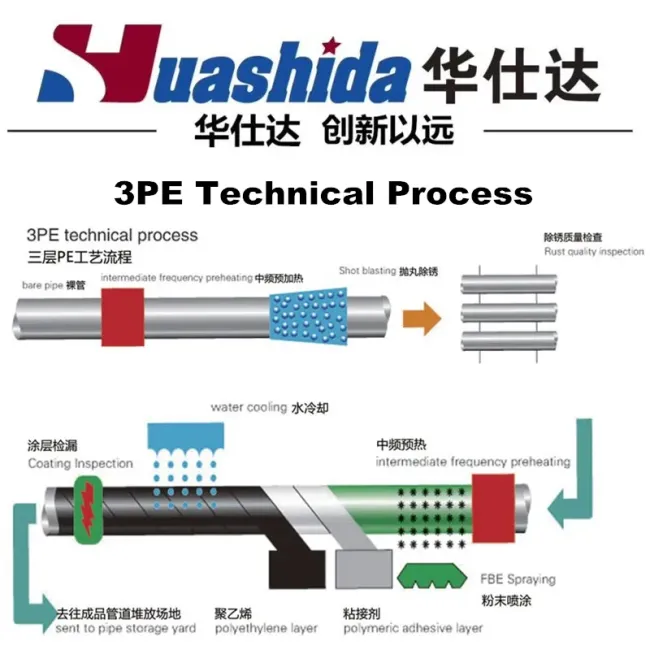

Technological process of 3LPE coating:
Pipe uploading→Shot blasting→Medium frequency induction heating→Epoxy powder spraying→Adhesive and polyethylene coating→Water cooling→Pipe end cutting back→Bevelling→Pipe unloading
The line can be customized to fit individual layout and application.
Main Equipment List and specification
| No. | Name | Specification |
| A. Surface Cleaning Equipment | ||
| 1 | Steel pipe conveyor | Adjustable speed and angle, pipe uploading and unloading controlled by PLC |
| 2 | Shot blasting machine | |
| 3 | Cyclone dust collector | High efficient downwind cyclone dust removal |
| 4 | Impulse cartridge dust collector | |
| 5 | Centrifugal fan | |
| 6 | PLC control system | Automatic control of the line |
| B. Coating Equipment | ||
| 1 | Spiral pipe conveyor | Adjustable speed and angle |
| 2 | Induction heating machine | |
| 3 | Powder spraying device | Spraying thickness 80-800μm |
| 4 | Automatic feeder&dryer | |
| 5 | SJ-65/30 Extruder | |
| 6 | SJ-180/30 Extruder | |
| 7 | Adhesive extruder die mould | High quality die steel |
| 8 | PE sheet extruder die mold | High quality die stee |
| 9 | Adhesive/PE sheet coating device | Pressing roller with silicon coating and internal cooling |
| 10 | Environmental Protection Ventilation equipment | |
| 11 | Cooling Spray equipment | |
| C.Platform Equipment | ||
| 1 | Steel pipe platform | High quality |
| D.Groove Equipment | ||
| 1 | PE Beveling Machine | Steel brush disk, |
| 2 | Hydraulic Lifting and Turning Machinery | For lifting and turning the pipe |
| 3 | Hydraulic Equipment | |

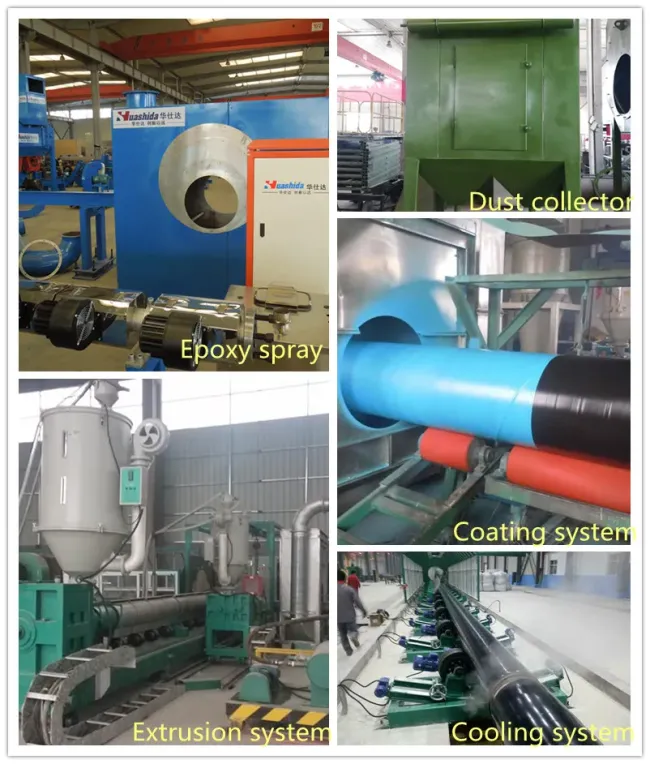

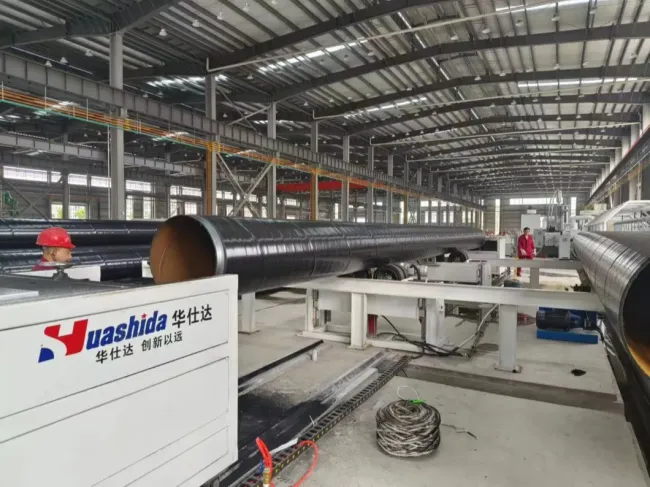

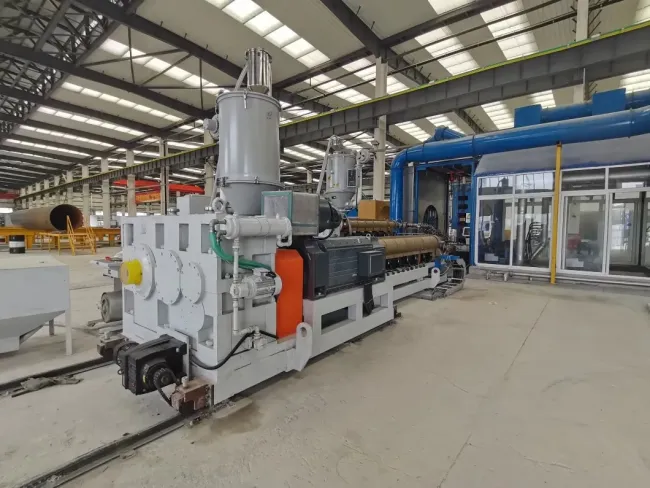

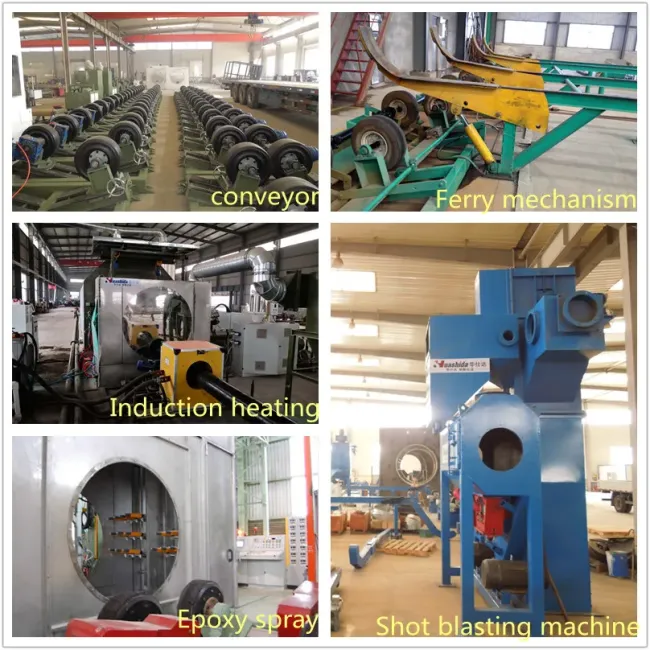

Equipment show
Pipe usage
3 layer PE anti-corrosion coating consist of first FBE coating, middle adhesive layer, and outer polyethylene layer.
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe, and other fluid transmission pipelines. 3 layer PE anti-corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.
Our factory

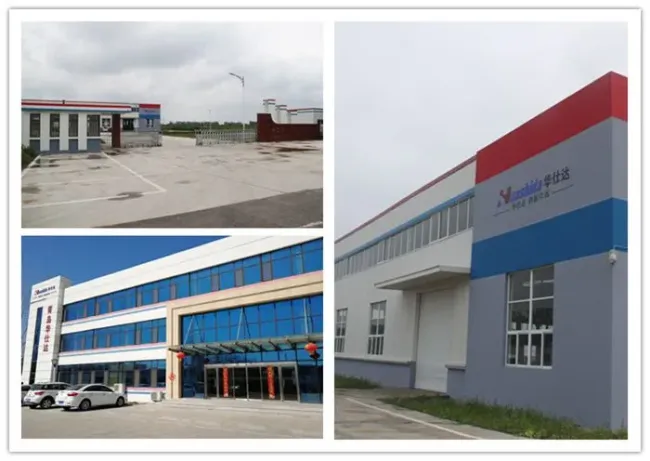

Built in 2010, with a construction area of more than 34,000 square meters.
Workshop

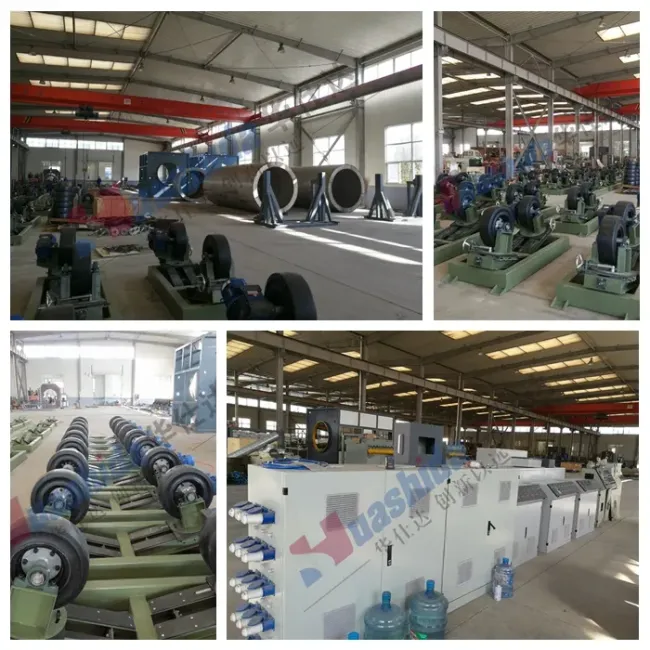

We have own workshops for machining, welding, spraying and assembly.

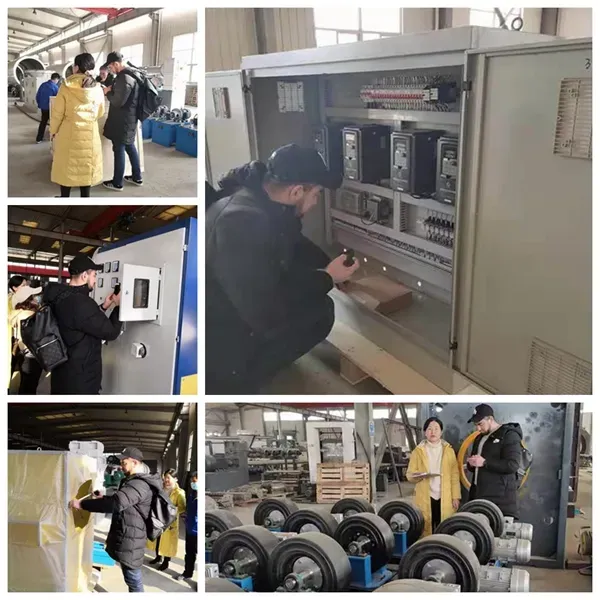

Customer visiting
We have received customers from Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Iran, India, Brazil, Egypt and other countries to visit the factory for inspection and ordering.
