Coating Line Description
Steel Pipe 3LPE Coating Line For Oil Gas Pipeline Using Epoxy Powder PE Adhesive is used for anti-corrosion coating steel pipe, which is widely used in varieties of engineering construction, especially in gas and oil industries, and in water transportation.
The coating line can be applied to FBE coating(epoxy powder), Two-layer extruded polyethylene coating (2LPE), Two-layer polypropylene coating (2LPP) and Three-layer extruded polyethylene coating (3LPE).

The pipe coating line meets the requirements of producing the steel pipe with coating which meets international standards DIN30670-1991,CAN/ Z245.21-2010,ISO21809-1-2009 SY/T 0413-2002, GB/T23257-2009,GOST 9.602-2016, GOST R 51164-98.


The coating line mainly consists of the following units:

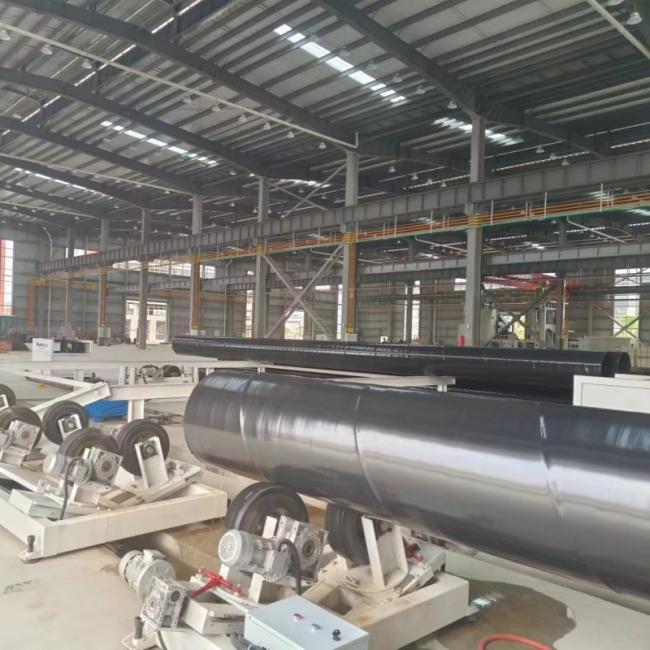

-steel pipe conveyor system

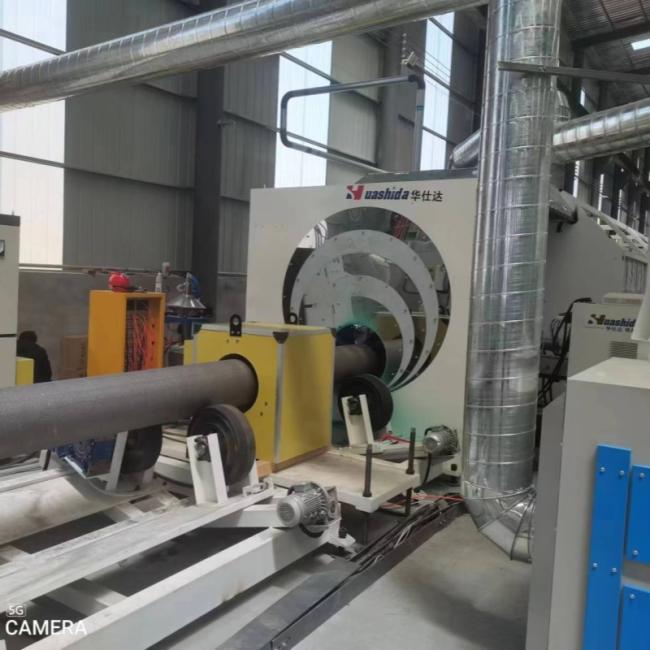

-shot/sand blasting system
-dust collector system
-pipe induction heating system

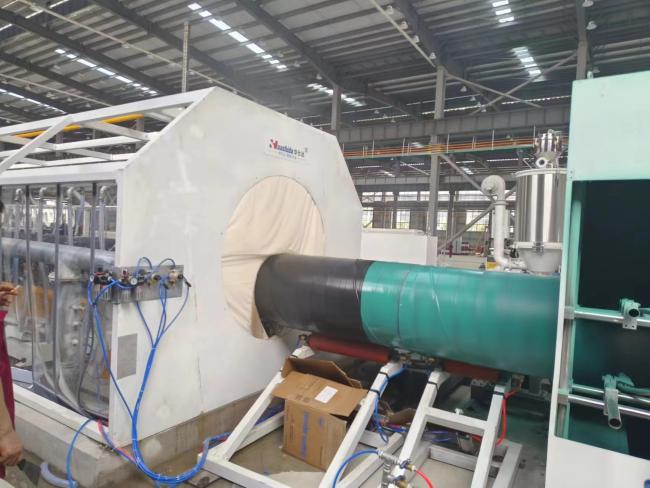

-epoxy powder spraying system
-PE&Adhesive coating system

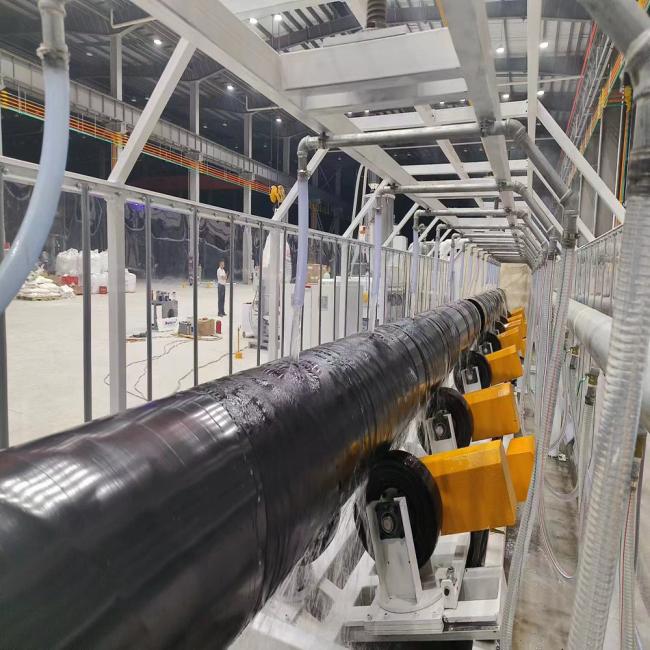

-water cooling system
-pipe end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system


Technological process of 3LPE coating:
Pipe uploading→Shot blasting→Medium frequency induction heating→Epoxy powder spraying→Adhesive and polyethylene coating→Water cooling→Pipe end cutting back→Bevelling→Pipe unloading

The line can be customized to fit individual layout and application.


Main Equipment List and specification

No.	Name	Specification
A. Surface Cleaning Equipment
1	Steel pipe conveyor	Adjustable speed and angle, pipe uploading and unloading controlled by PLC
2	Shot blasting machine
3	Cyclone dust collector	High efficient  downwind cyclone dust removal
4	Impulse cartridge dust collector
5	Centrifugal fan
6	PLC control system	Automatic control of the line
B. Coating Equipment
1	Spiral pipe conveyor	Adjustable speed and angle

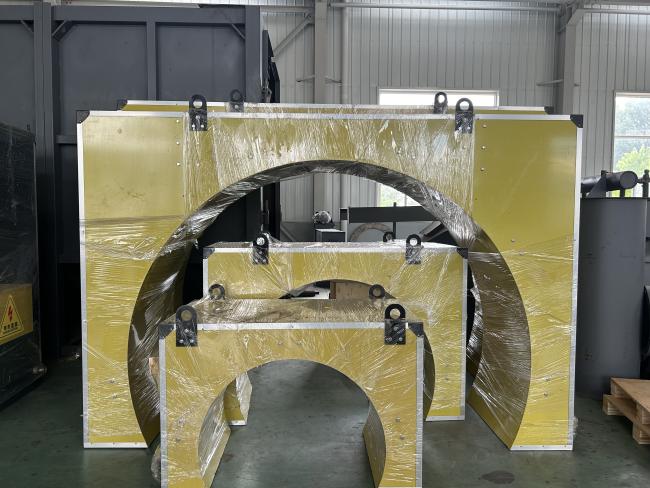

2	Induction heating machine
3	Powder spraying device	Spraying thickness 80-800μm

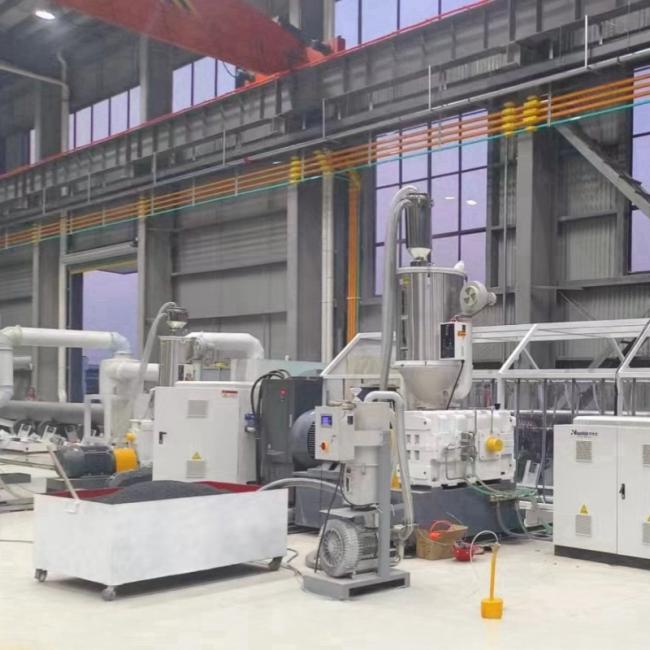

4	Automatic feeder&dryer
5	SJ-65/30 Extruder
6	SJ-180/30 Extruder
7	Adhesive extruder die mould	High quality die steel
8	PE sheet extruder die mold	High quality die stee
9	Adhesive/PE sheet coating device	Pressing roller with silicon coating and internal cooling
10	Environmental Protection Ventilation equipment
11	Cooling Spray equipment
C.Platform Equipment
1	Steel pipe platform	High quality
D.Groove Equipment
1	PE Beveling Machine	Steel brush disk,
2	Hydraulic Lifting and Turning Machinery	For lifting and turning the pipe
3	Hydraulic Equipment
