HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of  PU foam thermal Pre-insulated Pipe according to international standard.

The HDPE jacket pipe is produced by vacuum calibrating method with smooth internal and external wall, long service life, good anti-corrosion insulation and mechanical performance.The polyurethane sprayed polyethylene thermal winding preinsulation pipe production line independently developed by Huashida, consists of three parts: External shot blasting and derusting collector production line, polyurethane spraying production line, The line has a number of national patents, and the third-party standardized evaluation report has a technology advanced level of 5, reaching the domestic leading level. And won the first set of technical equipment in Shandong Province.
The line adopts continuous spraying production process. High automatic, fast production efficiency, saving raw materials, increased foaming and closed cell rate, lower water absorption rate, trinity molding, and more reliable performance. Products with low carbon environmental protection have higher economic and social benefits.

Production line composition:
-1set   Vacuum loader
-1set   Hopper dryer

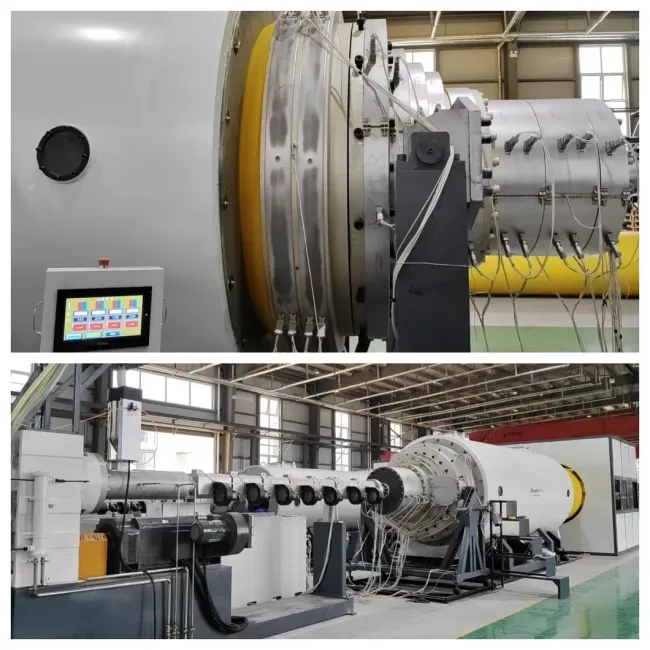

-1set   High-efficiency single screw extruder
-1set   Vacuum calibration table
-1set   Water spraying tank
-1set   Hauling machine
-1set   Cutting machine
-1set   Discharging Frame

Main line Composition of the polyurethane coating steel preinsulated pipe equipment:

Features of Production line of HDPE jacket pipe

-small dimension
-high degree of automation, can be operated by one person, saving labor costs
-a long service life.
-high-efficiency extruder gives larger output, stable performance
-pipe wall is average and smooth
-no waste of raw material
-once forming. No need trim edge.

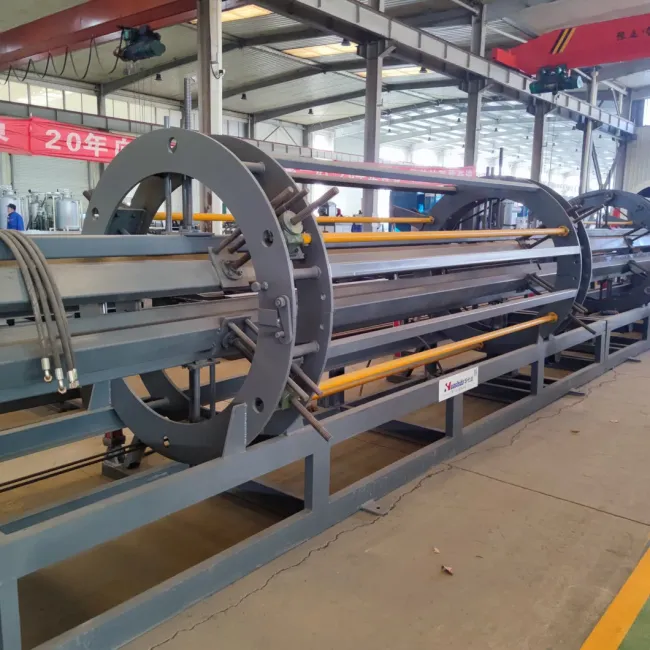

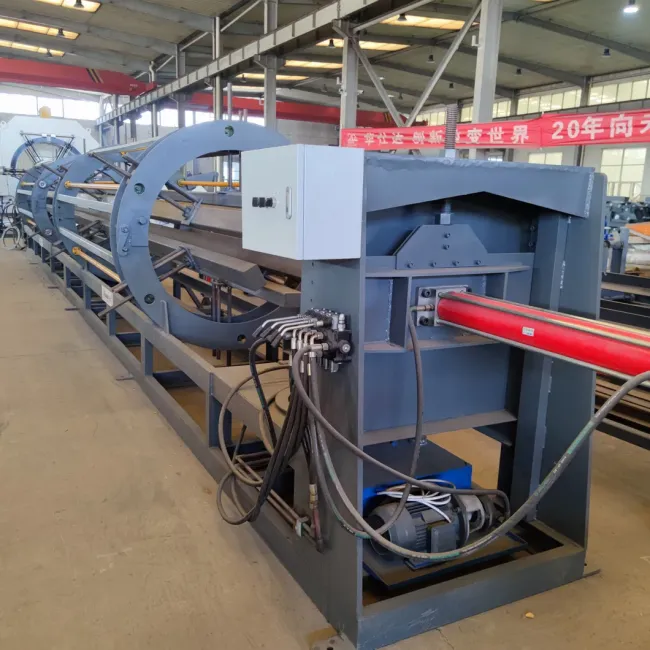

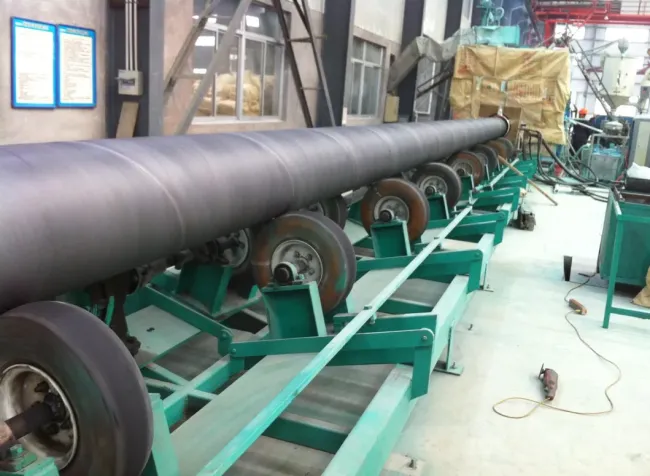

PU Foaming spray Pre Insulated Pipe Continuous Production Line


Producing technology flow of the polyurethane coating steel preinsulated pipe equipment:

1. Remove rust from steel pipe surface

2. preheat the steel pipe to get it ready for polyurethane spraying

3. Spray polyurethane evenly on steel pipe outer surface

4. Wrap melted HDPE strap around the PU foam

5. Trim the pipe ends

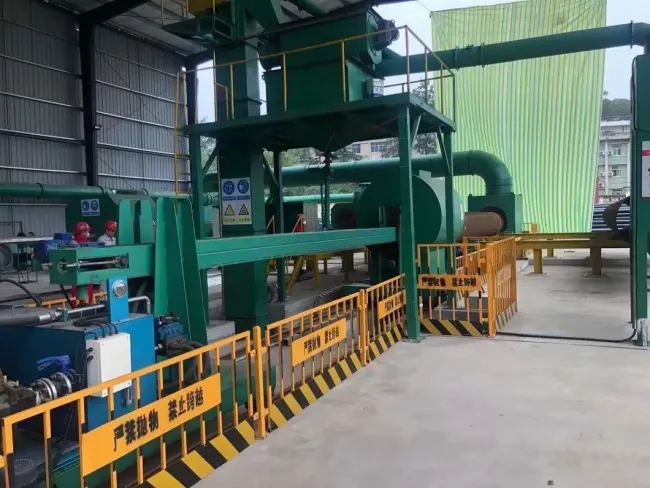

Steel pipe rust removal equipment

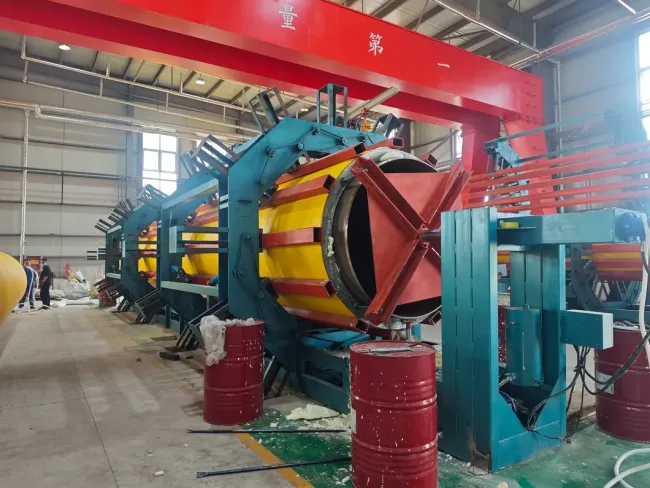

Polyurethane foam for jacket pipes

-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 23 years of production experience.

Huashida machines have been well received in Saudi Arabia, Kazakhstan, Uzbekistan, United Arab Emirates, Turkey, Russia, etc.
Shandong Province's first set of insulation pipe production line (awarded honor)



Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2200mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.

Exhibition

Abu Dhabi Oil and Gas Exhibition 2025

Thank you very much for you looking into Huashida equipment. For more details, please come back to us. We will respond immediatedly  and work out a customized plan for you according to your requirements and demands.
