Steel Pipe Coating Equipment with Anti-Corrosion 3PE/FBE Coating and Induction Heating for Industrial Applications

Multi-Technology Coating Equipment for Steel Pipes: Anti-Corrosion (3PE/FBE) & Insulation

Product Description

Steel pipe anti-corrosion coating line is used for anti-corrosion coating steel pipe in the factory with various diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.

3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.

Technological processes:

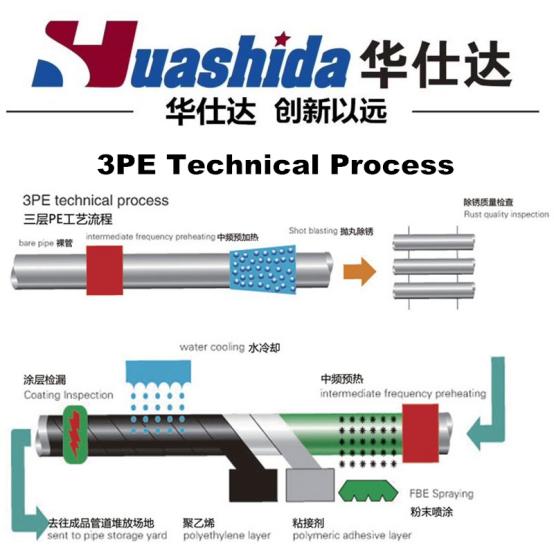

Upload pipes→pipes screw conveyor→rust removal→intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→unload pipes

Parameter of production line:

(1)Steel pipe range:50mm-426mm
(2)Processing capacity:≤250m2/h
(3)Cleaning level:Sa2.5
(4)Used material:Epoxy powder, adhesive, polyethylene
(5)Main equipment:Steel pipe external rust removal equipment,Medium frequency heating equipment,

Epoxy powder external spraying equipment,AD adhesive extrusion equipment,PE polyethylene extrusion equipment,

cooling device,PE beveling equipment,Spray mark equipment, etc

Advantages:
1. Good chemical resistance
2. It can resist the erosion of various chemical media, such as acids, alkalis, salts, oxidants, etc., and is suitable for the transportation of media in different environments,

thus extending the service life of steel pipes
3. Widely applied in many fields such as oil and gas transportation pipelines, water supply and drainage pipelines, etc

Main equipment list

Shipment

Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!


Our Main Products Include:
HDPE Jacket Pipe Extrusion Line
https://hsdextruder.en.made-in-china.com/product/nUGpodSAarVq/China-HDPE-Insulation-Pipe-Extrusion-Machine-for-Supplying-Hot-Water-Oil-Pipeline.html

3LPE Steel Pipe Anti-Corrosion Coating Line
https://hsdextruder.en.made-in-china.com/product/EAnUkIvojTYJ/China-3lpe-3PE-Fbe-Anti-Corrosion-Insulation-Coating-Line-for-Trunk-Petroleum-Transport-Pipelines.html

Hollow Wall Spiral Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/stZrvGPyCnYX/China-Durable-HDPE-Hollow-Wall-Corrugated-Pipe-Machine-Production-Line.html

Double Wall Corrugated Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/uaCYpfkvstre/China-High-Density-Polyethylene-Double-Wall-Corrugated-Pipe-Production-Line-for-Drainage-Water.html

PE/PP Geo Membrane Production Line
https://hsdextruder.en.made-in-china.com/product/SfypzaVGOnYF/China-HDPE-Plastic-Geo-Membrane-Film-Extrusion-Line.html

PE/PP Sheet Board Extrusion Line
https://hsdextruder.en.made-in-china.com/product/ITrUKBnEBtRa/China-PE-PP-Pet-Multi-Layer-Sheets-Boards-Co-Extrusion-Line.html

Rubber Foam Insulation Pipe Production Line
https://hsdextruder.en.made-in-china.com/product/WafrnuQwRERF/China-PVC-NBR-Nitrile-Rubber-Foam-Insulation-Sheet-Tube-Production-Line-with-Thickness-9mm-13mm-19mm.html

HDPE Welding Wire Welder Rods

https://hsdextruder.en.made-in-china.com/product/OfIpGDJSmEUQ/China-HDPE-Welding-Wire-Plastic-Welding-Rod-Colored-Welder-Rods.html

Besides manufacturing machines, we also make Heat shrinkable sleeves and electro fusion sleeves and plastic welders, which are widely used as pipe joints and sealings of plastic drainage water pipes, PU foam insulation pipelines, 2PE/3PE oil and gas pipelines.
