Fully Automatic PLC-Controlled Steel Pipe 3PE Anti-Corrosion Coating Line
The Steel Pipe 3PE Anti-Corrosion Coating Line with Epoxy Powder is designed for high-performance corrosion protection of steel pipelines used in oil, gas, water, and infrastructure projects. This production line applies a three-layer coating system consisting of epoxy powder, hot melt adhesive, and polyethylene outer layer, ensuring excellent adhesion, mechanical strength, and long-term corrosion resistance.
The epoxy powder layer provides strong bonding and chemical resistance, while the hot melt adhesive enhances interlayer adhesion. The polyethylene outer coating offers outstanding impact resistance, moisture protection, and durability. With a stable and efficient production process, the line delivers uniform coating thickness and reliable quality.
This 3PE coating line supports a wide range of pipe diameters and can be customized to meet specific project requirements. Featuring automated control, energy-efficient design, and easy operation, it helps manufacturers improve productivity, reduce operating costs, and achieve consistent coating performance.
3-layer PE anti-corrosion coating consists of the first FBE coating, middle adhesive layer, and outer polyethylene layer.
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipelines, urban gas supply, water supply pipes, and other fluid transmission pipelines. 3-layer PE anti corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable, and anti-aging performance.

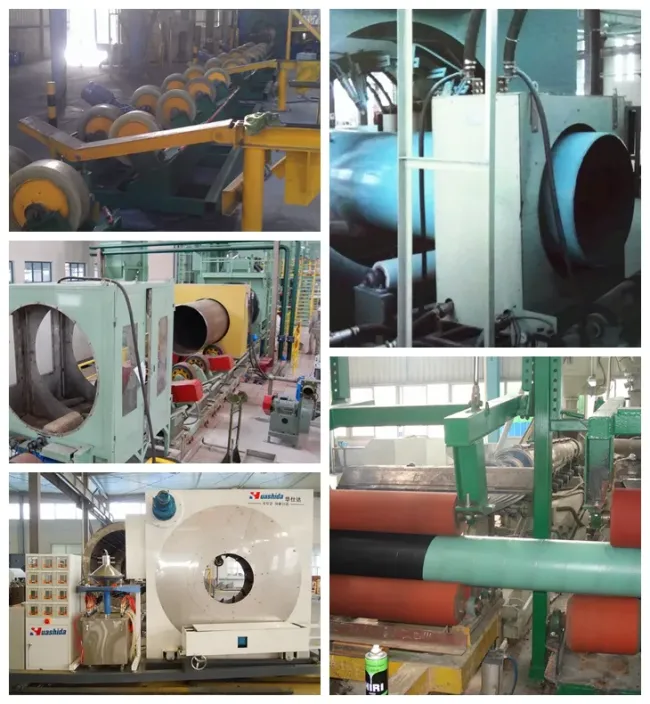

The anti-corrosion coating processing line includes:
-steel pipe transmission system
-surface treatment system
-pipe dust removal system
-pipe heating system
-electrostatic spraying system
-coating system
-water cooling system
-end cutting system
-hydraulic and pneumatic system
-testing system
-electronic control system.
Technological processes

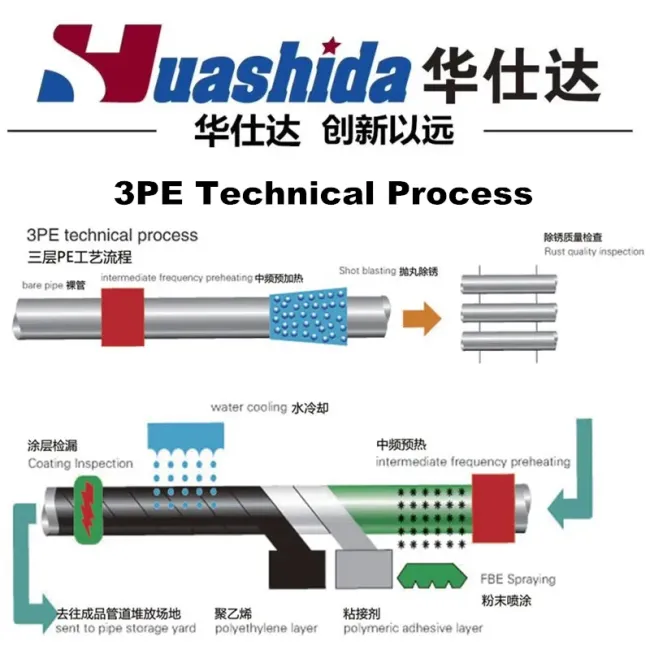

Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes

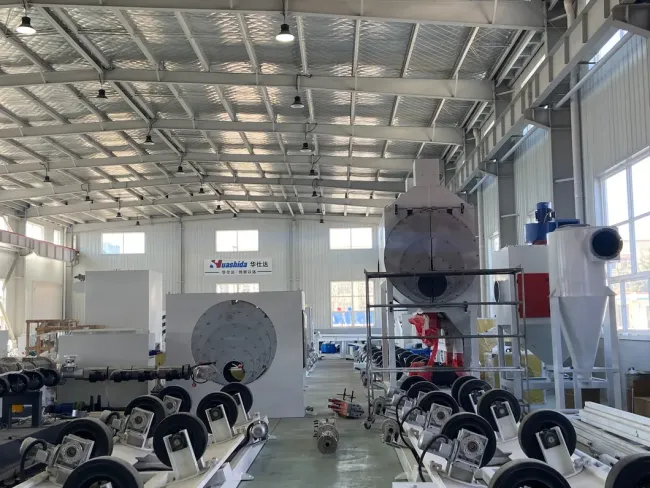

Main Equipment List
| No. | Name | Set |
| A. Derusting Equipment | ||
| 1 | Pipe-conveying Equipment | 1 |
| 2 | Shot Blast Cleaning Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| 5 | Centrifugal exhaust fan | 1 |
| 6 | Rust removal equipment PLC | 1 |
| B. Coating equipment | ||
| 1 | Coating transfer equipment | 1 |
| 2 | IF heating device | 1 |
| 3 | Powder spraying device | 1 |
| 4 | Automatic loading dryer | 2 |
| 5 | SJ-65/30 Extruder | 1 |
| 6 | SJ-180/30 Extruder | 1 |
| 7 | Hot melt adhesive extruder die | 1 |
| 8 | PE sheet extruder head mold | 1 |
| 9 | Hot melt adhesive/PE sheet coating device | 1 |
| 10 | Environmental Protection Ventilation equipment | 1 |
| 11 | Cooling Spray equipment | 1 |
| C.Platform Equipment | ||
| 1 | Steel pipe platform | 1 |
| 2 | Post-rust removal transition platform | 1 |
| 3 | Product tube storage platform | 1 |
| 4 | Hydraulic Equipment | 3 |
| D.Groove Equipment | ||
| 1 | PE Beveling Machine | 2 |
| 2 | Hydraulic Lifting and Turning Machinery | 1 |
| 3 | Hydraulic Equipment | 1 |
| 4 | PLC | 1 |
| E.Compressed air Equipment | ||
| 1 | Screw Air Compressor | 1 |
| 2 | Cold dry machine | 1 |
| 3 | Precision filters | 3 |
| 4 | Gas tanks | 1 |
