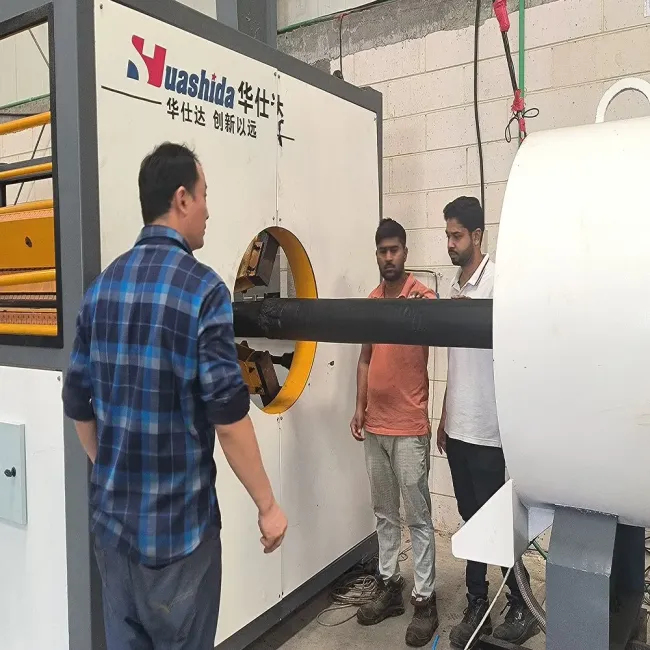

HDPE Outer Jacket Pipe Extrusion Line for PU Pre-Insulated Pipe with Vacuum Calibration and Dust-Free Planetary Cutting

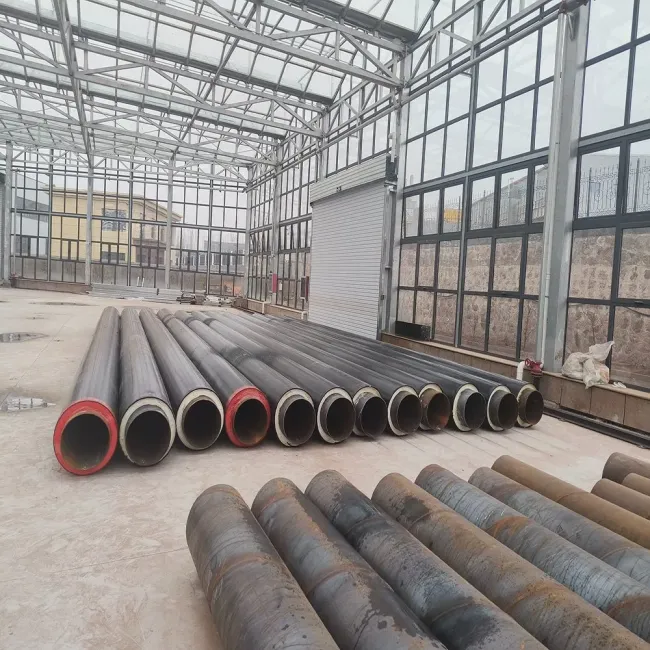

The HDPE jacket casing pipe extrusion line is used for producing outer protective pipes for PU foam pre-insulated systems. Vacuum calibration ensures accurate sizing and excellent surface quality. PLC control enables stable, efficient, and energy-saving production for medium and large-scale output.
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 45m |

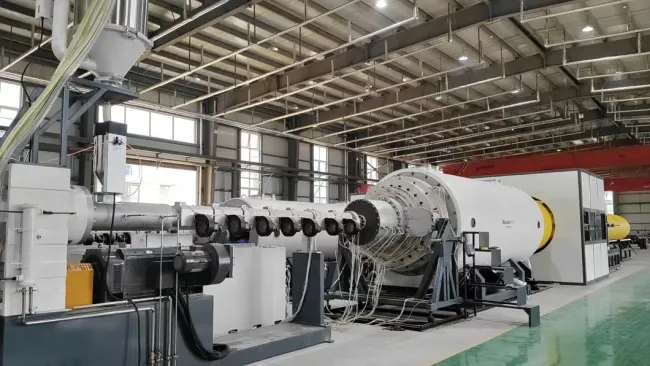

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder
-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC
Technical Highlights:

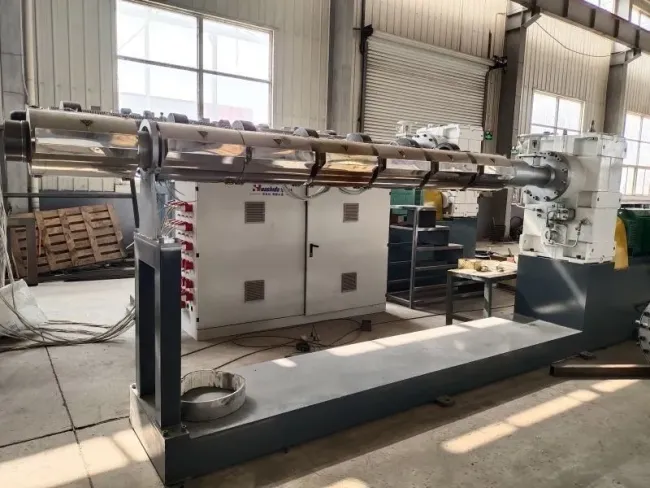

Proprietary single-screw extruder optimized for polyethylene (PE) materials
Precision temperature control system ensures consistent material fusion

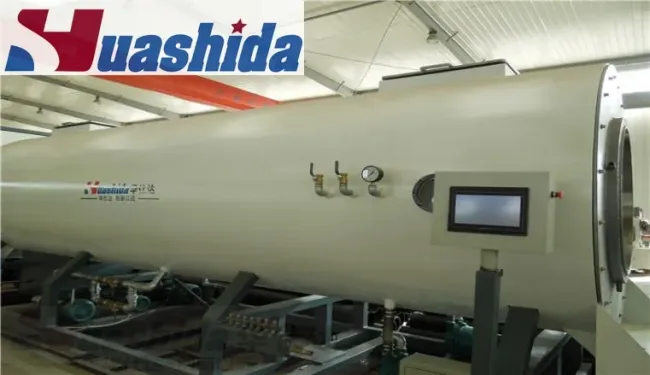

Vacuum calibration tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, position adjustment device. The vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to calibrate the outer diameter. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.
Fully integrated PLC control system
Real-time process monitoring

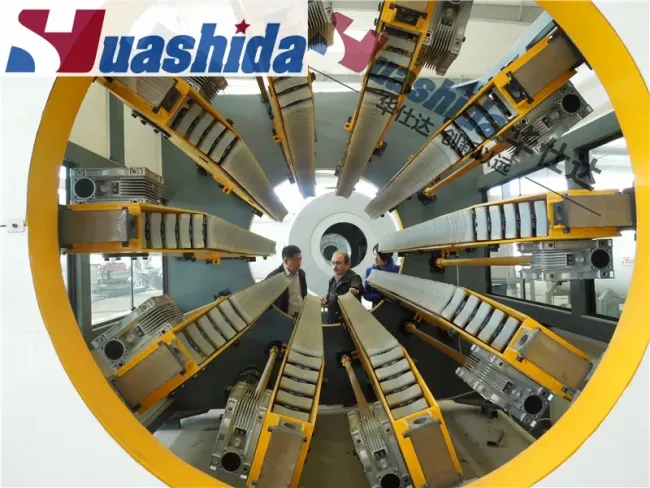

The haul-off machine is mainly composed of driving device, tracks, clamping structure, adjusting system, side plate and foundation bed. Haul-off tracks are driven by AC motor with frequency conversion control to adapt to different extrusion speeds.
An automatic length measuring device realizes cutting at a set length.

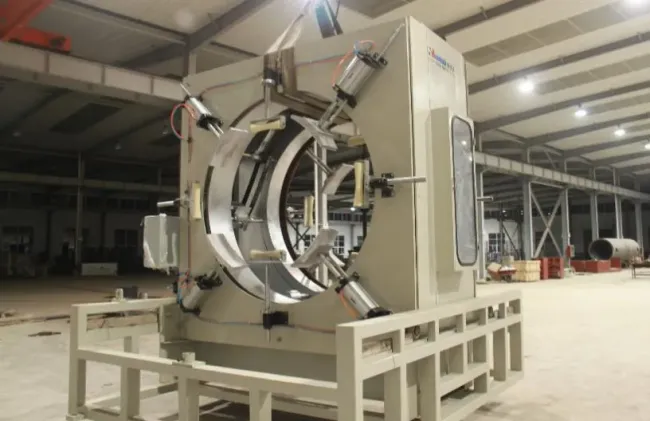

It adopts blade punching principle to realize no-dust cutting. It is mainly composed of cutting device, clamping device, structure synchronous movement device and frame.
Features of the HDPE sleeve production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
1.Provide a comprehensive and fully integrated production solution, including design, installation, commissioning, and training.
2.Share you 389 sets of production experience from all the world
3.Having 9 professional senior engineers
4.Having a high-end plastic machinery equipment expert workstation in China
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
