Automatic Large-Diameter Pre-Insulated Pipe Production Line with Vacuum Calibration and Single-Screw Extruder
Price:
US$200,000.00-1,000,000.00
MOQ:
1
Delivery Time:
60DAYS
Brand:
HUASHIDA
Product Description

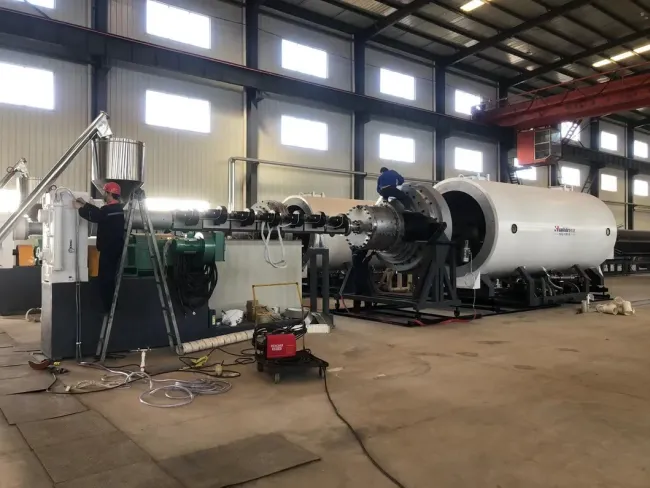

Automatic Production Line for Puf Pre-Insulated Pipe HDPE Plastic Jacket
( Large-Diameter )

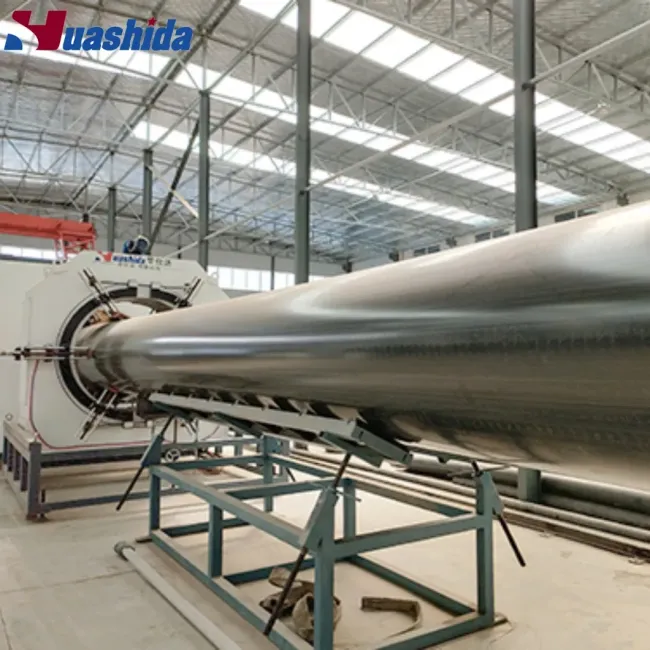

Vacuum-calibrated polyurethane pre-insulated pipes deliver superior thermal insulation and long service life. Featuring a steel carrier pipe, PU insulation layer, and HDPE protective jacket, the system ensures excellent strength, corrosion resistance, and energy efficiency. Produced using advanced vacuum calibration technology, the HDPE jacket pipes offer high dimensional accuracy and consistent quality, making them an ideal choice for district heating and cooling pipeline systems.
The vacuum calibrating and insulation pipe production line is currently the most advanced and popular series of anti-corrosion and insulation vacuum sizing pipe production lines internationally.The "Insulation Pipe Production Line" of Qingdao Huashida Machinery Co., Ltd. has been recognized as a First (Set) Technical Equipment in Shandong Province.
Advantages of the production line:
1. High-performance extruder: strong, wear- and corrosion-resistant with excellent plasticizing capability
2. Precise temperature control: ceramic heating rings + fan cooling with automatic regulation
3. Intelligent control system: PLC + DCL software with intuitive HMI for easy operation
4. Efficient cutting: planetary cutting unit with segmented head for clean, vertical cuts, no secondary processing
5. Clean production: integrated sawdust collection system keeps the workspace tidy
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 48m |

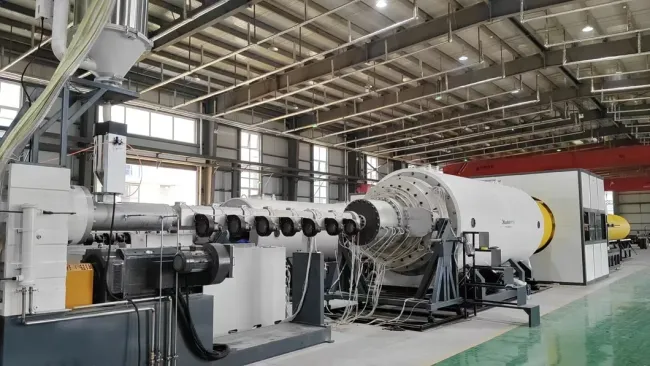

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder

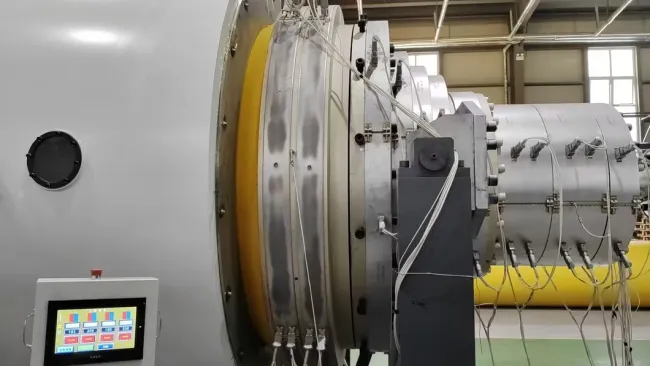

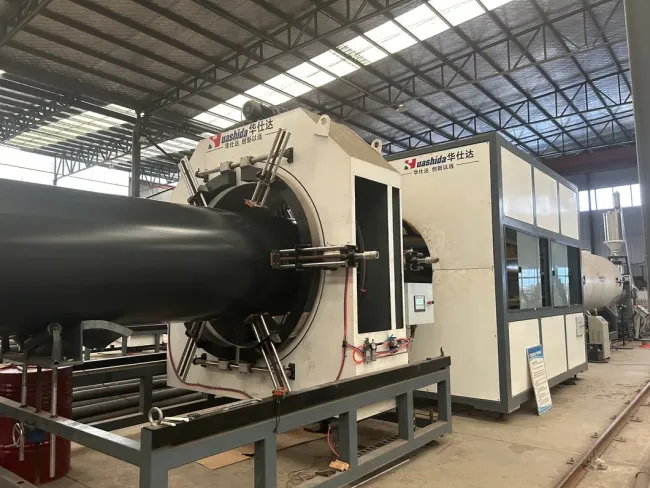

-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC
Technical Highlights:

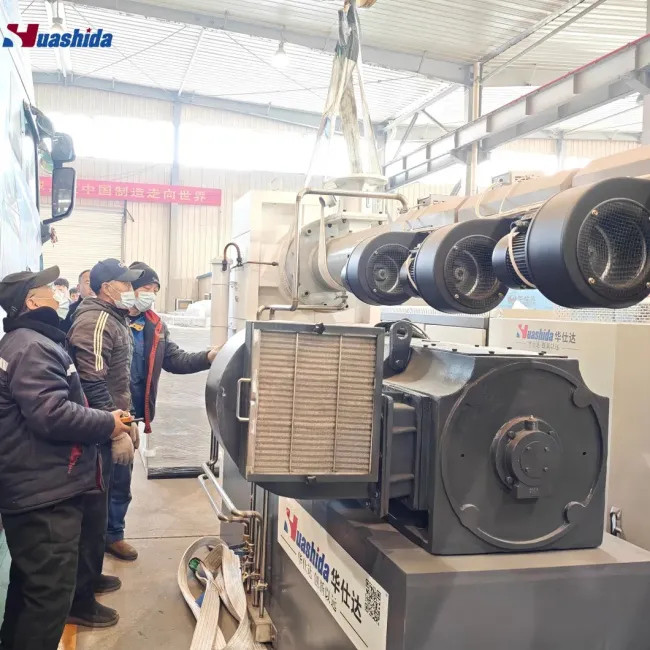

| Single-screw extruder | Precision temperature control system ensures consistent material fusion Proprietary single-screw extruder optimized for polyethylene (PE) materials |

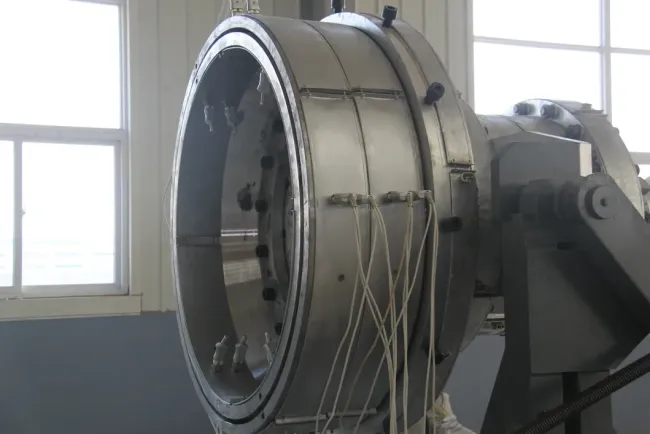

| Vacuum Calibration | Patented vacuum calibration system replaces traditional internal pressure methods |
| Smart Automation | Fully integrated PLC control system Real-time process monitoring |
| Production Capabilities | Diameter range: 110mm - 2200mm (customizable) Output capacity: 250-1600 kg/h (material-dependent) |
Features :
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.One-time molding
Qingdao Huashida Machinery Co., LTD., founded in 2003, is a global developer, manufacturer and solution provider of plastic extrusion equipment. 70% of its customers come from overseas countries such as Europe, America, the Middle East and Southeast Asia.
Welcome to our factory to discuss cooperation!
