Production Line for Cross-Linked Polyethylene (PE) Heat Shrink Sleeves and Tapes
Production Line for Cross-Linked Polyethylene (PE) Heat Shrink Sleeves and Tape
1, Overview of Production Line
This production line is a core manufacturing system designed specifically for cross-linked polyethylene (PE) heat shrink materials. It integrates the entire process from precision extrusion of LDPE substrate, efficient coating of functional tape to final molding, and is a modern solution that embodies efficient output, intelligent controllability, and energy-saving integration.
2, Core advantages
The entire line is designed with the principle of "double low and double high": low energy consumption and low noise; High efficiency and stability. Equipped with intelligent speed regulation and central control system, it not only meets high standard production, but also achieves long-term reliable operation and considerable energy-saving returns for you.
3, Terminal product application
The radiation cross-linked heat shrink tubing produced on this line is a key sealing component to ensure the long-term safe operation of pipelines. Mainly used for:
Anti corrosion and insulation pipeline: provides reliable "joint filling" anti-corrosion sealing for on-site circumferential welds.
Plastic piping system: provides durable waterproof protection for PE/PVC and other water supply and drainage pipe joints.
Cross-linked Heat Shrinkable Belt Production Line (model SRSG-800 )

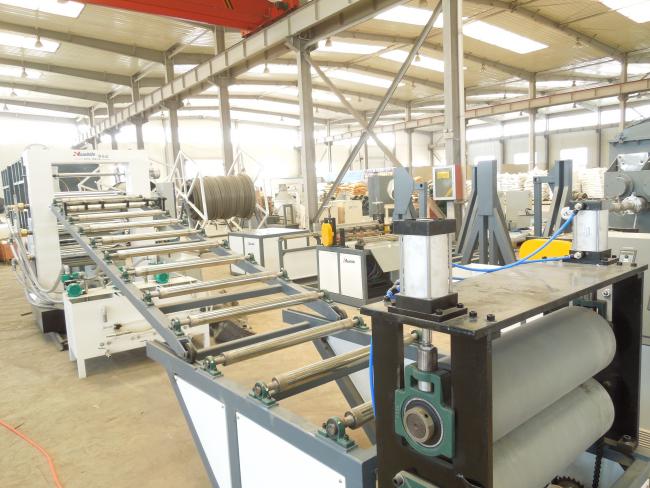

| RS-800 Basic film extrusion line (RS-800) | |||
| 1 | SJ-65×30 single screw Extruder | 1 Set | |
| 2 | T-Die mold | 1 Set | |
| 3 | 3-Calender Roller | 1 Set | |
| 4 | Roll temperature control system | 1 Set | |
| 5 | Cooling Bracket | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler | 1 Set | |
| TJ-700 adhesive mixing and coating line (TJ-700) | |||
| 1 | Unpowered uncoil device | 1 Set | |
| 2 | Basic film drawing mill | 1 Set | |
| 3 | reactor | 1 Set | |
| 4 | Adhesive coating mold group | 1 Set | |
| 5 | Cooling water tank | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler platform | 1 Set | |
Main Technical Parameters
| Item | Specification |
| Applicable Material | PP / PE / PS / HIPS / ABS / PVC |
| Layer Structure | Single / Double / Multi-layer |
| Sheet Thickness | 0.1 - 30 mm |
| Sheet Width | 800 - 1600 mm |
1.Intelligent Control: Advanced automation system enables synchronized operation, precise coordination, and user-friendly adjustments.
2.Energy Efficiency: Engineered for low power consumption and extended service life through optimized mechanical and electrical design.
3.Customized Solutions: Production lines can be fully tailored to meet specific customer requirements, with continuous technical support and maintenance.
4.Safety and Reliability: PLC-integrated control system ensures stable performance, enhanced safety, and reduced resource consumption.
5.Comprehensive Service: Provides complete project assistance, including detailed presentations, video demonstrations, market insights, and cost analysis.
1.Heat Shrinkable Tape -- Production of anti-corrosion and thermal insulation protective layers for pipelines.
2.Heat Shrinkable Sleeve -- Anti-corrosion and waterproof encapsulation for pipeline joints.
3.Anti-Corrosion Wraps -- Production of external anti-corrosion coatings for steel pipes.
4.Insulation Outer Layer -- Outer protective layer for polyurethane insulated pipes.
Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Qingdao Huashida Machinery Co., Ltd was established in 2003. Since its inception, Huashida has focused on plastic polyurethane insulation pipe production line, 3PE anti-corrosion pipe production line, large diameter underground pipe production line and plastic pipe joints for 20 years. We always attach great importance to research and development,
