HDPE Outer Protective Pipe Production Line with Vacuum Calibration Technology and Dust-Free Planetary Cutting for Pre-Insulated Pipes
Price:
US$100,000.00 - 2,000,000.00
MOQ:
1
Delivery Time:
90days
Brand:
huashida
Product Description
Prefabricated insulation pipe special HDPE outer protective pipe production line
The HDPE jacket pipe extrusion line is a high-efficiency, high-speed and energy-saving production line designed for manufacturing HDPE plastic jacket pipes,
which are widely used as protective casings for PU foam pre-insulated pipes, in accordance with international standards.
The HDPE jacket pipe is produced using vacuum calibration technology, ensuring smooth inner and outer surfaces, uniform wall thickness, long service life, excellent anti-corrosion performance,
thermal insulation protection, and superior mechanical strength.
Applications
1.District heating and cooling pipeline systems
2.PU foam pre-insulated steel pipes
3.Oil & gas thermal insulation pipelines
4.Industrial heat transmission pipelines
5.Municipal underground pipeline protection
Production Line Composition
1 set Vacuum loader
1 set Hopper dryer
1 set High-efficiency single screw extruder

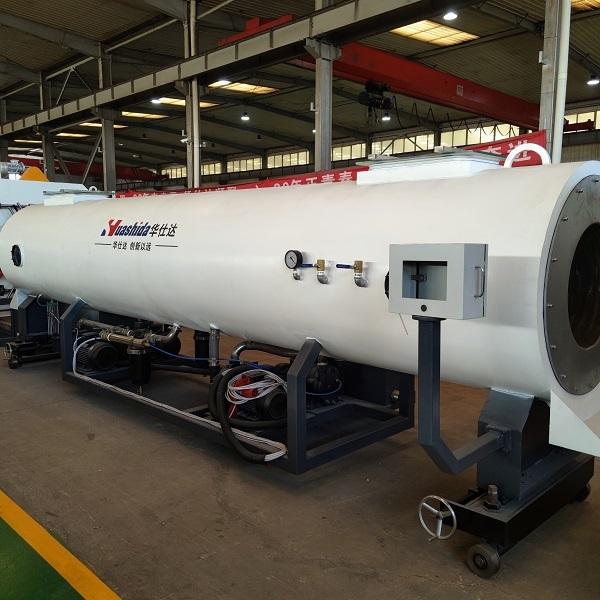

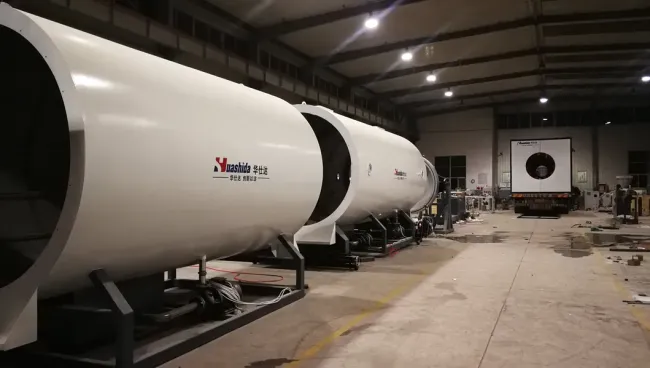

1 set Vacuum calibration table
1 set Water spraying cooling tank
1 set Haul-off machine
1 set No-dust cutting machine
1 set Discharging frame
1 set Hopper dryer
1 set High-efficiency single screw extruder
1 set Vacuum calibration table
1 set Water spraying cooling tank
1 set Haul-off machine
1 set No-dust cutting machine
1 set Discharging frame
Insulation Layer: Polyurethane rigid foam material
| Main Extruder | SJ-75/33 | SJ-90/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ365-760m | Φ655-1380mm | Φ960-1680mm | Φ1054-1860mm |
| Capacity | 250-350kg/h | 400-500kg/h | 700-900kg/h | 1000-1200kg/h | 1000-1250kg/h |
| Installed power | 160kw | 240kw | 480kw | 580kw | 580kw |
| Length | 30m | 32m | 36m | 40m | 45m |
