Product Description:

Technical specification

Model	Pipe diameter	Screw	KiloWatt	Output
SPEG-110	16-63mm	SJ75X33	180kw	350kg/h
SPEG-250	75-250mm	SJ90X33	280kw	500-1000kg/h
SPEG-250	110-250mm	SJ90X33	280kw	500-1000kg/h
SPEG-250	160-315mm	SJ90X33	280kw	500-1000kg/h
SPEG-250	160-355	SJ90X33	280kw	500-1000kg/h
SPEG-630	200-450mm	SJ120X33	522kw	1000-1200kg/h
SPEG-1200	710-1200mm	SJ150X33	680kw	1000-1600kg/h
SPEG-2200	1000-1600mm	SJ150X33	1200kw	2000-2500kg/h

 Production Line Details:

Technological processes
 [Feeding & Drying] → [Extrusion Molding] → [Mold Shaping] → [Cooling] → [Traction and Cutting]  → [Marking]

Main equipment list
-1set Vacuum loader
-1set Hopper dryer
-1 set High-efficiency single screw extruder
-1set 25/25 single screw extruder for mark line
-1set Vacuum calibration table
- 2/4  set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Stacker

Equipment detailed photos

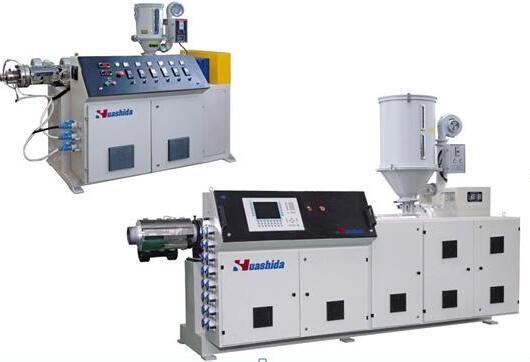

1. Single Screw Extruder

2. Die-Head

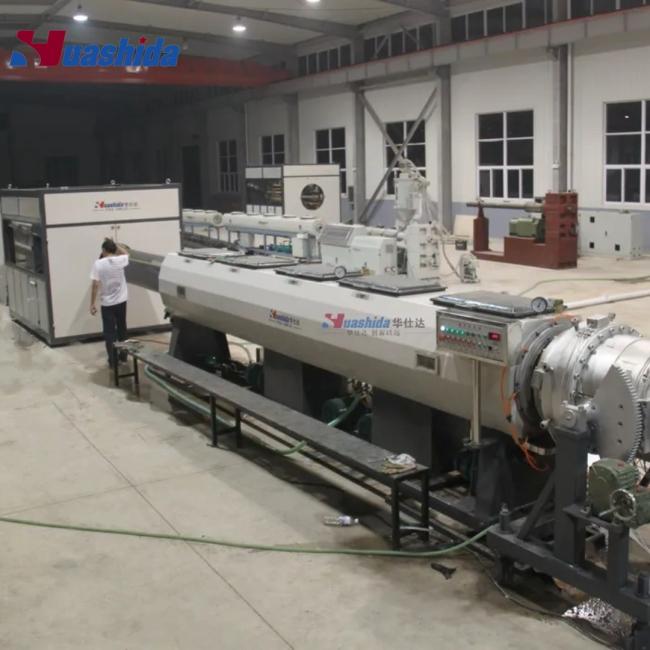

3. Vacuum forming tank

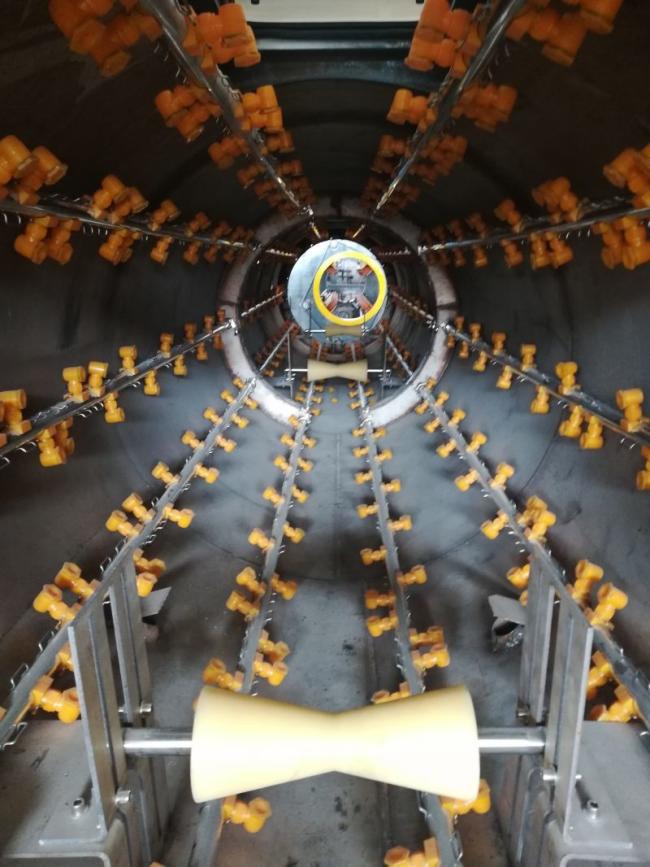

4. Water Cooling Tank

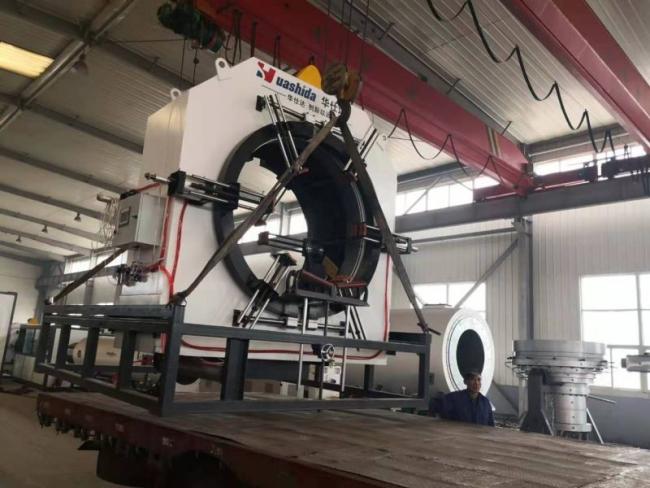

5. Haul-off Machine

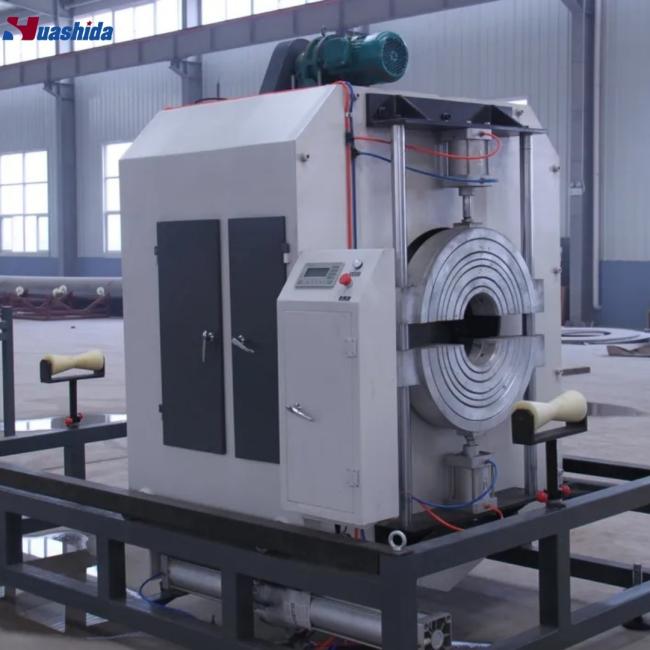

 6. No-Dust Planetary Cutter

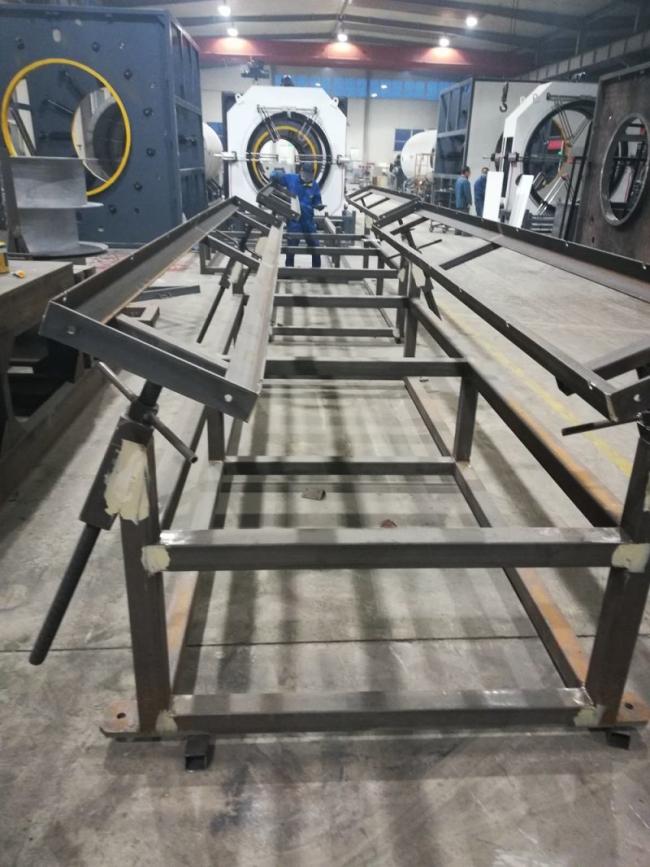

 7. Discharging Frame

Feature:

Complete system:
Extruder - mold - two-stage cooling - traction - cutting - stacking

Mechanical properties:
Combination of rigidity and flexibility + ultra-high mechanical strength

Anti-damage design:
Resistant to stress cracks/creep/thermal loads

Scene coverage:
urban gas/municipal water supply/foundation/environmental protection/geothermal pipelines

Extrusion characteristics:
Grooved barrel + barrier screw to achieve high-output stable extrusion

Company Profile:

Qingdao Huashida Machinery Co., LTD, is a manufacturer of a series of plastic pipe machines, municipal pipe machines, pipe insulation&anticorrosion machines, and pipe jointing&anticorrosion materials, with 21 years of production experience.
Our main products are:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8. Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria, and other countries.
