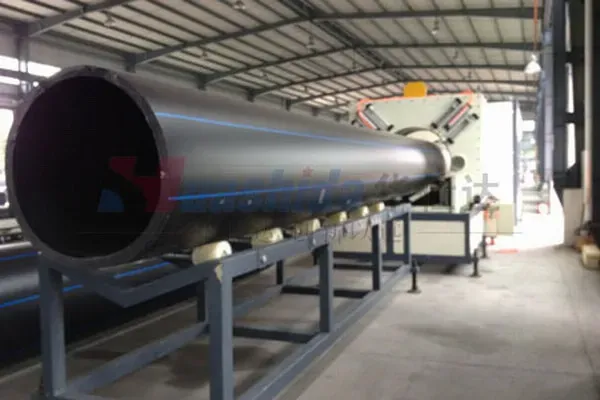

High Mechanical Strength HDPE Pipe Extrusion Equipment with Resistance to Environmental Stress Cracks and Vacuum Calibration System
HDPE pressure Pipe Extrusion Line is a pipe extrusion line developed by HSD company through assimilating the master technology from Europe.
Plastic pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for:
- City gas pipe
- Water supply pipe
- Foundation pipe
- Landfill collection pipe
- Watermain
- Geothermal heating
HDPE pipe extruding line composed of single screw extruder and corresponding auxiliaries, can produce all kinds of small diameter HDPE plastic pipes continuously. It also can be used to produce PS, PP, HDPE plastic pipes after replacing the screw. HDPE plastic pipe is widely used for liquid conveying in agricultural, chemical industry, construction industry, etc.
Single screw extruder is composed of AC motor, hard toothed surface reduction gear, extruding system, heating and cooling system, and electrical controlling part.
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting.
Vacuum Calibration tank is mainly used to form the pipe shape, and it composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device.
Water cooling tank is mainly composed of frame, stainless steel tank, and spray cooling system. Spray cooling system is used to cool down the pipe further and to realize cooling completely and forming.
Haul-off machine is mainly composed of driving device, haul-off chain of pillars, clamping structure, adjusting system, side plate, and foundation bed.
The table surface is made of stainless steel. It adopts pneumatic overturn and discharging automatically.
| No. | Item | PE |
|---|---|---|
| 1 | Main motor power | 400 |
| 2 | Coextruder | 3 |
| 3 | Cylinder heating power including coextruded heating (220V heating) | 64 |
| 4 | Die heating power (220V heating) | 200 |
| 5 | Sizing machine power | 72 |
| 6 | Spray tank power | 33 |
| 7 | Tractor power | 15 |
| 8 | Cutter power | 8.5 |
Total power: 800kW

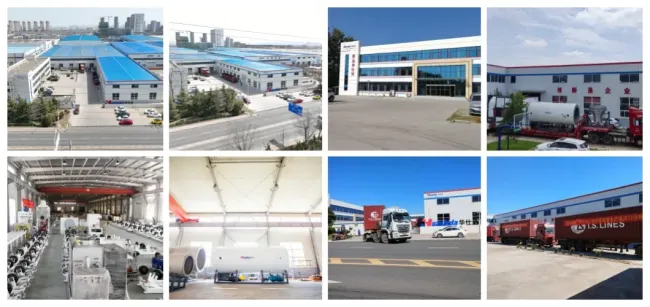

Qingdao Huashida Machinery Co., LTD, is a manufacturer of series of plastic pipe machines, municipal pipe machines, pipe insulation & anticorrosion machines, and pipe jointing & anticorrosion materials, with more than 20 years of production experience.
- HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
- Rigid pre-insulated pipe Production Line
- Flexible pre-insulated pipe (PERT) production line
- Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
- Steel pipe derusting line
- PE pressure pipe/Water Gas supply pipe production line
- PP/PE plastic board/sheet/geomembrane production line
- NBR PVC Thermal insulation tube/plate production line
- Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun (extruder), PE PP welding rod
We are always attach great importance to research and development, collaborating closely with Tsinghua University, Beijing University of chemical technology, South China university of technology and scientific research institutions. By absorbing advanced technology home and abroad, we now rank one of the top 3 manufacturers in the industry in China.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Middle East, Russia, Nigeria and other countries.
For further details, please feel free to contact us at any time. Our team will respond promptly and provide a fully customized solution tailored to your specific requirements and project needs.
