PLC Controlled 3LPE Coating Pipe Production Line with 50-4200 mm Diameter and Sa 2.5 Surface Cleaning
Product Overview
The 3LPE (Three-Layer Polyethylene) system is a multi-layered coating designed to provide industry-leading corrosion resistance and mechanical durability for buried steel pipelines.
The 3-Layer Structure
-
First Layer (Inner): Fusion-Bonded Epoxy (FBE). Provides a strong chemical bond to the steel and serves as the primary defense against corrosion.
-
Second Layer (Middle): Copolymer Adhesive. Acts as the "glue" that chemically bonds the epoxy layer to the outer polyethylene.
-
Third Layer (Outer): High-Density Polyethylene (HDPE). Provides rugged mechanical protection against impact, moisture, and environmental stress.
Key Advantages
-
Extended Service Life: Designed to last 30–50 years, even in harsh environments.
-
Superior Durability: High resistance to low-temperature impacts and mechanical damage.
-
Exceptional Adhesion: Combines the high strength of epoxy with the low water absorption of PE.
-
Efficiency: Minimizes energy loss and maintenance costs due to its excellent sealing performance.
Technical Specifications
| Parameter | Range/Requirement |
| Pipe Diameter Range | 50 – 4200 mm |
| Production Capacity | ≥ 250 m²/h |
| Surface Cleaning Level | ≥ Sa 2.5 (High-level grit blasting) |
| Primary Materials | Epoxy powder, Copolymer adhesive, Polyethylene |
Application Fields
The 3LPE coating line is essential for infrastructure projects, including:
-
Energy: Long-distance oil and gas transportation and urban gas networks.
-
Utilities: Municipal water supply systems.
-
Industrial: Specialized fluid pipelines for chemical and manufacturing sectors.
Production Line: Main Equipment List

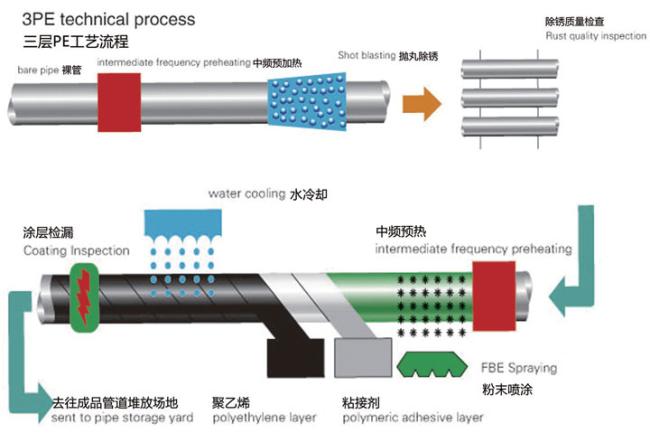

The manufacturing process is divided into four critical stages:
A. Derusting Equipment
Essential for preparing the steel surface to ensure maximum adhesion.
-
Pipe wheel conveyors and Shot Blasting Machines.
-
Environmental controls (Cyclone & Pulse dust collectors).
B. Coating Equipment
The core of the application process.
-
Induction heating devices for pipe preparation.
-
Powder spraying for the FBE layer.
-
SJ-Series Extruders and molds for the adhesive and PE sheet application.
C. Handling & Cooling
-
Loading, downloading, and storage platforms.
-
Cooling Spray equipment to set the coating.
D. Finishing & Control
-
PE Beveling Machines for pipe-end finishing.
-
Integrated PLC automatic control systems for the entire line.
