PLC Controlled Automatic 3LPE Coating Pipe Production Line with Shot Blasting Surface Preparation
Price:
150000-1000000
MOQ:
1 set
Delivery Time:
60work days
Brand:
Huashida
Product Description
Product Description
3 Layer Polyethylene (3LPE) Anti-Corrosion Steel Pipe Production Line for Oil & Gas
The 3-layer polyethylene (3LPE) anti-corrosion steel pipe production line is designed to apply a high-performance three-layer protective coating to steel pipes. By integrating advanced coating technology with high-quality materials, the system ensures reliable and long-lasting corrosion protection for pipelines used in demanding environments.
The coating structure produced by the line consists of three functional layers:
Base Layer: Fusion bonded epoxy (FBE) powder coating is applied to the surface of the steel pipe, forming a strong bond and providing excellent corrosion resistance.
Middle Layer: A copolymer adhesive layer with functional groups is applied to firmly bond the epoxy base layer with the outer polyethylene layer.
Outer Layer: High-density polyethylene (HDPE) is extruded as the outer protective layer, offering strong mechanical protection, low water absorption, and excellent environmental resistance.
Through this three-layer coating process, the production line ensures uniform coating quality, enhanced pipeline durability, and extended service life.
Our Advantages
High Sealing Performance: The coating system provides excellent sealing capability. During long-term operation, it helps reduce energy loss, lower operating costs, and minimize environmental impact.
Outstanding Corrosion Resistance: The 3LPE coating offers strong protection against corrosion. It features a simple and efficient application process and provides a long service life of 30–50 years.
Excellent Low-Temperature Performance: The coating maintains strong corrosion resistance and impact resistance even in low-temperature environments, ensuring reliable pipeline protection.
Optimized Material Structure: By combining the high bonding strength of epoxy powder, the low water absorption of polyethylene, and the flexibility of hot-melt adhesive, the coating system achieves excellent durability and reliability.
Cost-Effective Solution: The production process is efficient and stable, delivering superior anti-corrosion performance with high cost-effectiveness while meeting international standards.
Technological processes
Upload pipes→pipes screw conveyor→rust removal → intermediate frequency heating→Epoxy powder coating→outer layer adhesive polyethylene coating→cooling spray→pipes screw conveyor→grinding pipe ends→dowload pipes
Product Parameters
|
No.
|
Name
|
Specification
|
|
A. Surface Cleaning Equipment
|
||
|
1
|
Steel pipe conveyor
|
Adjustable speed and angle, pipe uploading and unloading controlled by PLC
|
|
2
|
Shot blasting machine
|
|
|
3
|
Cyclone dust collector
|
High efficient downwind cyclone dust removal
|
|
4
|
Impulse cartridge dust collector
|
|
|
5
|
Centrifugal fan
|
|
|
6
|
PLC control system
|
Automatic control of the line
|
|
B. Coating Equipment
|
||
|
1
|

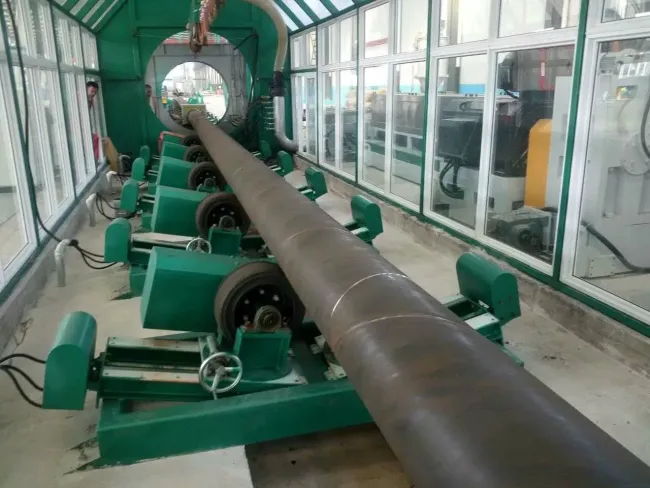

Spiral pipe conveyor
|
Adjustable speed and angle
|
|
2
|
Induction heating machine
|
|
|
3
|
Powder spraying device
|
Spraying thickness 80-800μm
|
|
4
|
Automatic feeder&dryer
|
|
|
5
|
SJ-65/30 Extruder
|
|
|
6
|
SJ-180/30 Extruder
|
|
|
7
|
Adhesive extruder die mould
|
High quality die steel
|
|
8
|
PE sheet extruder die mold
|
High quality die stee
|
|
9
|
Adhesive/PE sheet coating device
|
Pressing roller with silicon coating and internal cooling
|
|
10
|
Environmental Protection Ventilation equipment
|
|
|
11
|
Cooling Spray equipment
|
|
|
C.Platform Equipment
|
||
|
1
|
Steel pipe platform
|
High quality
|
|
D.Groove Equipment
|
||
|
1
|
PE Beveling Machine
|
Steel brush disk,
|
|
2
|
Hydraulic Lifting and Turning Machinery
|
For lifting and turning the pipe
|
|
3
|
Hydraulic Equipment
|
|
Application
3LPE anti-corrosion coating is an ideal outer protective layer for buried pipelines and is widely used in:
Oil and gas transportation: natural gas and oil long-distance pipelines.
Urban gas supply: urban gas pipeline network.
Water supply pipeline: urban and industrial water supply system.
Other fluid transportation: chemical, sewage treatment and other pipeline systems.
Performance improvement: high electrical insulation, waterproof, wear-resistant, anti-aging, and enhanced pipeline mechanical properties.
Urban gas supply: urban gas pipeline network.
Water supply pipeline: urban and industrial water supply system.
Other fluid transportation: chemical, sewage treatment and other pipeline systems.
Performance improvement: high electrical insulation, waterproof, wear-resistant, anti-aging, and enhanced pipeline mechanical properties.

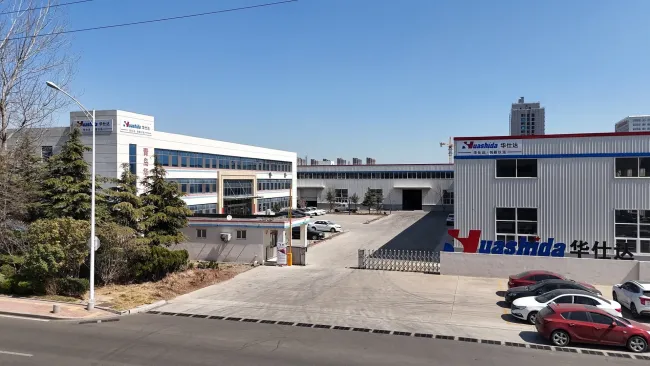

Company Profile
