Vacuum Calibrating HDPE Insulation Pipe Production Line with Single-Screw Extruder and Planetary Cutter
Price:
US$200,000.00-1,000,000.00
MOQ:
1
Delivery Time:
60days
Brand:
HUASHIDA
Product Description
Vacuum Calibrating HDPE insulation pipe production line

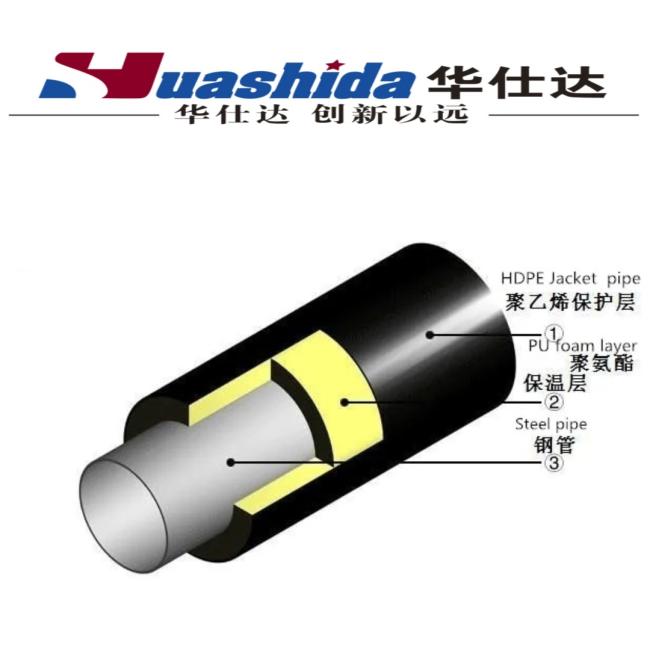

The vacuum calibration polyurethane insulation pipe is a kind of high efficiency pre insulated pipe. It is mainly composed of working steel pipe, PU insulation layer, plastic outer protective pipe and other parts.
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
HDPE jacket pipe are produced by vacuum calibration method, with smooth inner and outer walls, long service life, good Anticorrosion and heat preservation performance, and excellent mechanical properties.
HDPE jacket pipe extrusion line is high-efficiency equipment with high speed and energy saving for producing HDPE pipe used as protective cover of PU foam thermal Pre-insulated Pipe according to international standard.
HDPE jacket pipe are produced by vacuum calibration method, with smooth inner and outer walls, long service life, good Anticorrosion and heat preservation performance, and excellent mechanical properties.
| Style | PE-110/500 | PE-655/1380 | PE-960/1860 | PE-1155/2200 |
| Main Extruder | SJ-75/33 | SJ-120/33 | SJ-150/33 | SJ-150/33 |
| Pipe diameter | Φ110-600mm | Φ655-1380mm | Φ960-1860mm | Φ1155-2200mm |
| Capacity | 250-350kg/h | 700-900kg/h | 1000-1200kg/h | 1350kg/h |
| Installed power | 160kw | 480kw | 580kw | 650kw |
| Length | 26m | 36m | 45m | 45m |

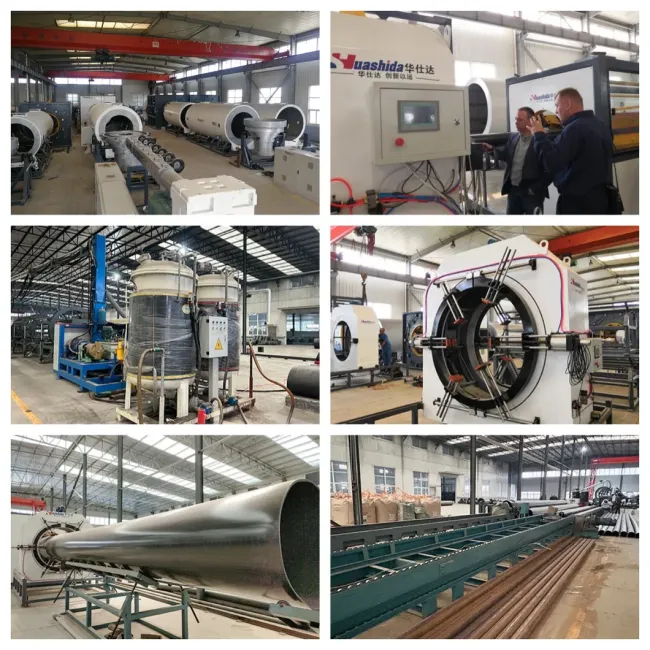

Production line composition:
-1set Vacuum loader
-1set Hopper dryer
-1set High-efficiency single screw extruder

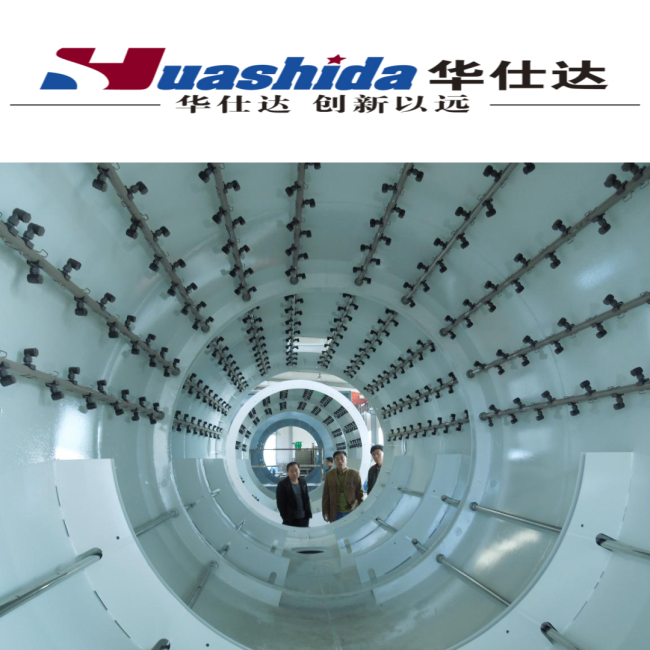

-1set Vacuum calibration table
-1set Water spraying tank
-1set Hauling machine
-1set Cutting machine
-1set Discharging Frame
-1set PLC (Computer control system)
Features of the HDPE pipe production line:
1.small dimension
2.high degree of automation, can be operated by one person, saving labor costs
3.long service life.
4.high-efficiency extruder gives larger output, stable performance
5.pipe wall is average and smooth
6.no waste of raw material
7.once forming. No need trim edge.
The advantages of our company:
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China
-Supply full completed production solution: design, installation, commissioning,training
-Share you 389 sets of production experience from all the world
-Having 9 professional senior engineers
-Having a high-end plastic machinery equipment expert workstation in China

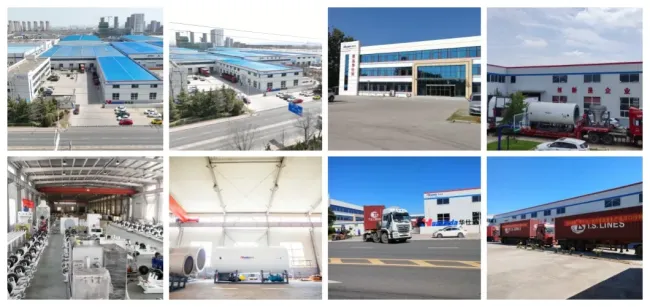

Factory overview
