Radiation Cross-Linked Heat Shrinkable Sleeve for Corrosion Resistant Automatic Production Pipeline Joint Protection
Price:
17000$ - 17500$
MOQ:
1
Delivery Time:
60-80 Days
Brand:
Huashida
Product Description
Automatic Radiation Cross-Linked HDPE Heat Shrink Tape Machinery for Steel Pipeline Welding Joints
The Radiation Cross-Linked HDPE Heat Shrink Tape Production Line is a modern, intelligent system integrating high efficiency, energy conservation and precise control. It consists of an LDPE base material extrusion line, a heat shrink tape gluing line, forming processing equipment and auxiliary devices. With low energy consumption and low noise as its core advantages, the complete unit supports precise speed regulation, is equipped with an intelligent operating system, and meets the production requirements of high-standard anti-corrosion materials.
Product process flow :
-
The PE back film extrusion line produces PE film according to customer requirements.
-
The PE back film is sent to a professional irradiation company for radiation crosslinking treatment with the appropriate radiation dose, ensuring the sleeve has excellent fire resistance and tensile strength.
-
The irradiated back film is put into the heat shrinkable sleeve adhesive coating line for coating. During this process, the heat shrinkable sleeve substrate is first stretched twice to ensure good shrinkage rate, then hot melt adhesive with a unique formula is extruded by a professional reaction vessel and bonded with the back film, resulting in high peel strength of the finished product.
Designed for pipeline joint protection, pipe rehabilitation, and wrapping applications, it is widely used in:
-
Oil & gas transmission pipelines
-
PU insulated pipes
-
3PE/2PE coated steel pipes
-
Thermo insulated pipes
-
Metal reinforced HDPE corrugated pipes (drainpipes)

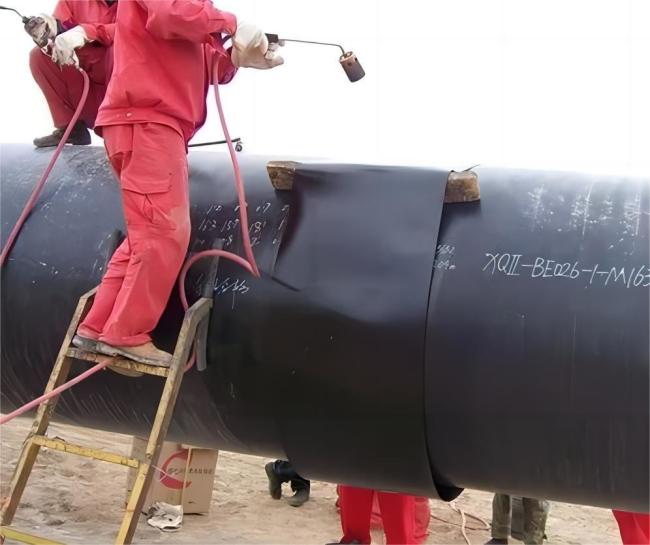

Heat shrinkable sleeve for Oil & Gas Pipe

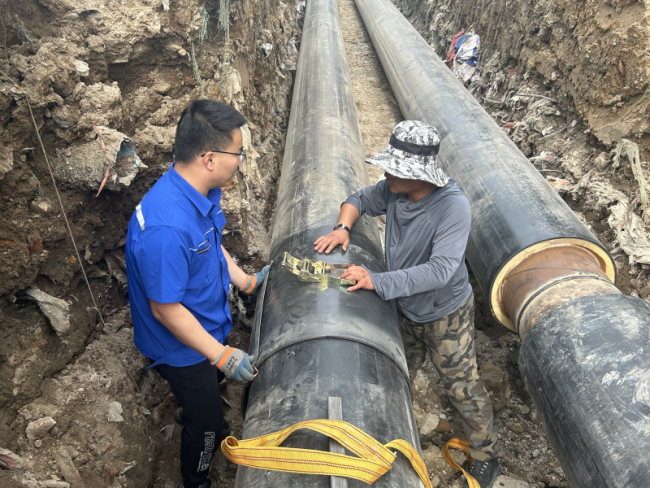

Heat shrinkable sleeve forThermo Insulated Pipe
For metal reinforced HDPE corrugated pipe (drainpipe)

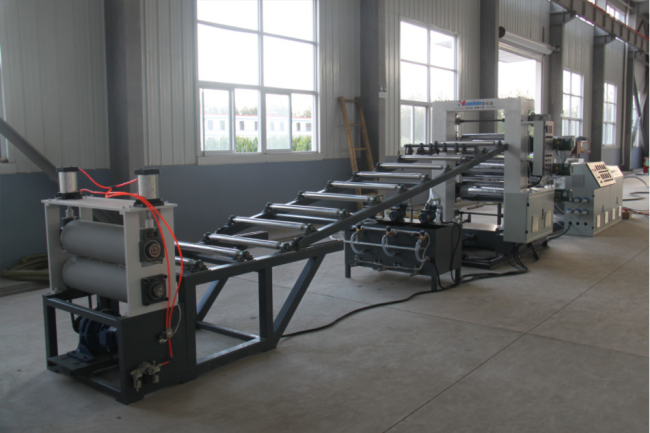

1. PE Back Film Extrusion Line
-
Single screw extruder
-
Die head
-
Three Calender
-
Roll temperature controlling system
-
Cooling rack
-
Hauling off
-
Rewinding machine
2. Adhesive Mixing and Coating Line
-
Unpowered uncoil device
-
Reactor
-
Adhesive coating system
-
Cooling water tank
-
Haul off
-
Coiler platform
3. Additional Equipment for Three-Layer Fiber Reinforced Heat Shrink Sleeve
-
Fiber uncoiling device
-
Fiber heating device
-
Fiber flattening device

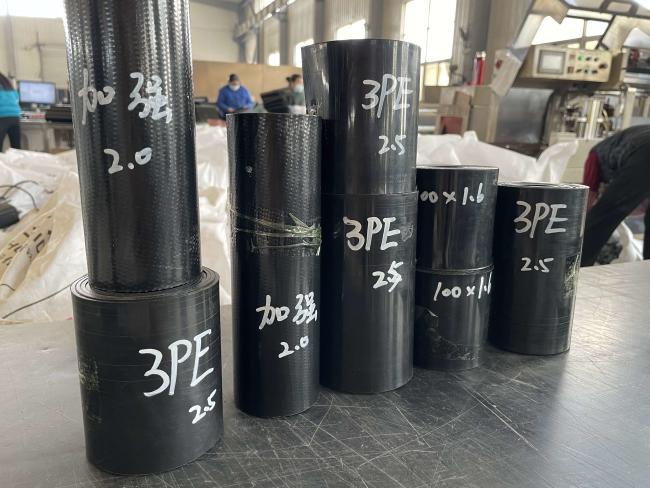

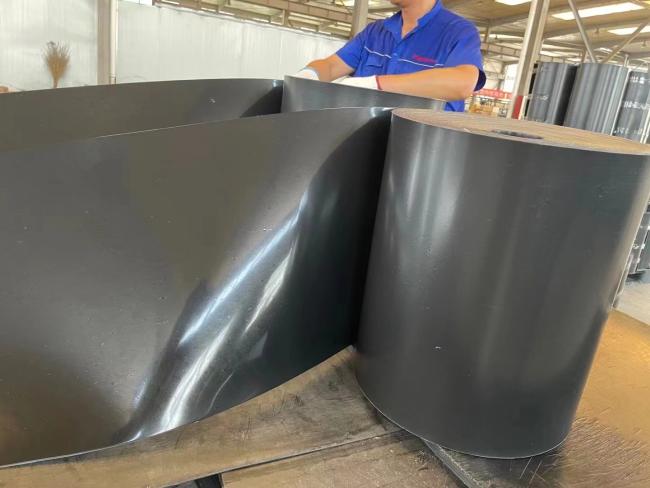

Finished Heat shrinkable sleeve show
Cross-linked Heat Shrinkable Belt Production Line (model SRSG-800 )
| RS-800 Basic film extrusion line (RS-800) | |||
| 1 | SJ-65×30 single screw Extruder | 1 Set | |
| 2 | T-Die mold | 1 Set | |
| 3 | 3-Calender Roller | 1 Set | |
| 4 | Roll temperature control system | 1 Set | |
| 5 | Cooling Bracket | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler | 1 Set | |
| TJ-700 adhesive mixing and coating line (TJ-700) | |||
| 1 | Unpowered uncoil device | 1 Set | |
| 2 | Basic film drawing mill | 1 Set | |
| 3 | reactor | 1 Set | |
| 4 | Adhesive coating mold group | 1 Set | |
| 5 | Cooling water tank | 1 Set | |
| 6 | Haul-Off Unit | 1 Set | |
| 7 | Coiler platform | 1 Set | |
-
Fast shrinkage speed and convenient construction
-
Excellent waterproof and anti-corrosive performance
-
Long service life and easy transportation
-
Adopts pure PE material and imported adhesive to ensure product quality
-
Provides one-stop solution: design, installation, commissioning and training
-
Shares 389 sets of global production experience
-
Has 9 professional senior engineers and a high-end plastic machinery expert workstation in China
