High-Speed Energy-Saving HDPE Jacket Pipe Extrusion Line with Vacuum Calibration for Pre-Insulated Pipes
Product Description
The HDPE jacket pipe extrusion line is a high-efficiency, high-speed, and energy-saving production system specially designed for manufacturing HDPE casing pipes used as protective outer jackets for PU foam thermal pre-insulated pipes according to international standards.
The HDPE jacket pipes are produced using advanced vacuum calibration technology, ensuring smooth inner and outer pipe surfaces, uniform wall thickness, excellent mechanical strength, long service life, reliable anti-corrosion performance, and superior heat preservation properties.
HDPE jacket pipes are widely used in district heating systems, oil transportation pipelines, natural gas pipelines, chemical industries, and other thermal insulation pipeline projects.
Machine Advantages
High-efficiency extruder with stable performance and large output
Energy-saving extrusion technology
Smooth and uniform pipe wall surface

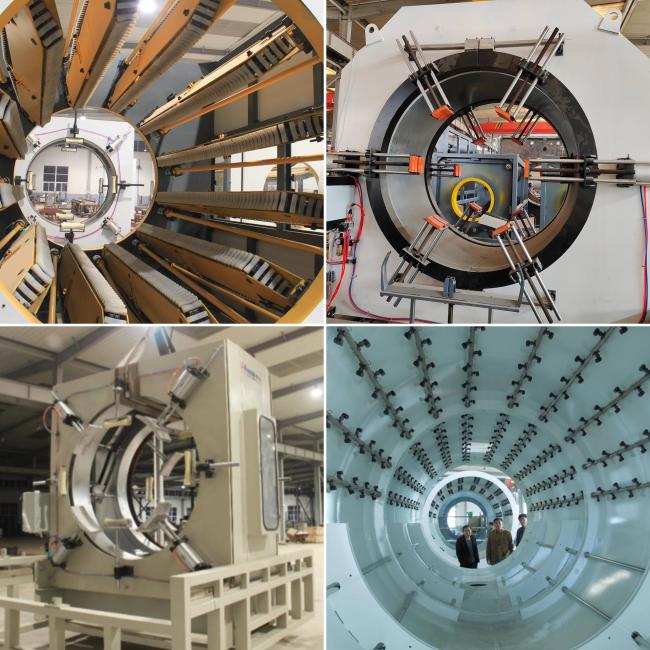

Vacuum calibration ensures precise pipe sizing

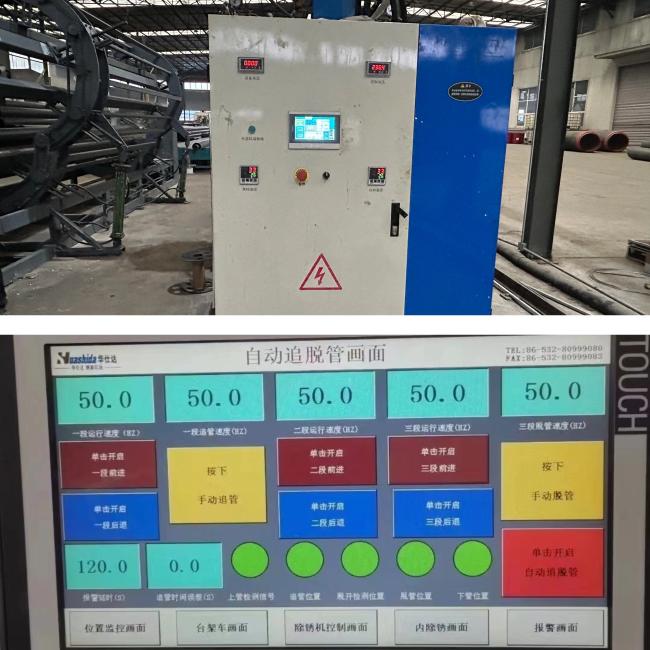

High degree of automation with PLC intelligent control
One-person operation saves labor costs
Compact machine structure and small footprint
Long service life and reliable operation
One-time molding process without material waste
|
Extruder |
Output Capacity |
|
SJ90/33 |
600-700kg/h |
|
SJ120/33 |
800-900kg/h |
|
SJ150/33 |
1000-1200kg/h |
Product Parameters
|
Model |
Main Extruder |
Pipe Diameter |
Capacity |
Installed Power |
Length |
|---|---|---|---|---|---|
|
PE-110/500 |
SJ-75/33 |
Φ110-600mm |
250-350kg/h |
160kw |
26m |
|
PE-655/1380 |
SJ-120/33 |
Φ655-1380mm |
700-900kg/h |
480kw |
36m |
|
PE-960/1860 |
SJ-150/33 |
Φ960-1860mm |
1000-1200kg/h |
580kw |
45m |
|
PE-1155/2200 |
SJ-150/33 |
Φ1155-2200mm |
1350kg/h |
650kw |
48m |

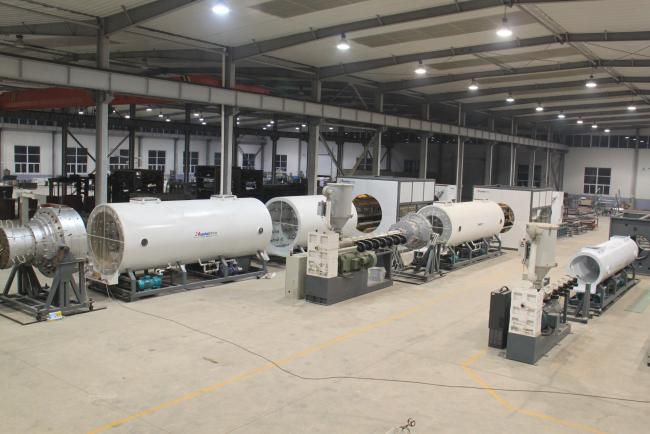

Production Line Composition
Technical Highlights
Production Capabilities
Features of HDPE Sleeve Pipe Production Line
Application Areas
Our main products:
1. HDPE jacket pipe for pre-insulated pipe Production Line (110-2000mm)
2. Rigid pre-insulated pipe Production Line
3. Flexible pre-insulated pipe(PERT) production line
4. Steel pipe FBE/2LPE/3LPE anti-corrosion coating line
5. Steel pipe derusting line
6. PE pressure pipe/Water Gas supply pipe production line
6. PP/PE plastic board/sheet/geomembrane production line
7. NBR PVC Thermal insulation tube/plate production line
8.Pipeline anti-corrosion materials and instruments: heat shrink joint coating sleeve, electro-fusion weldable joint sleeve, portable welding gun(extruder), PE PP welding rod.
We have been working with more than 400 overseas customers and exporting our products to Kazakhstan, Uzbekistan, Iran, Turkey, Russia, Nigeria and other countries.
Share extensive global production line experience
Supported by a team of senior professional engineers
Equipped with a national-level plastic machinery expert workstation in China
50+ Exporting Countries & Regions
70% Overseas Customer Share
