3LPE Anti-Corrosion Coating Line
The outer anti-corrosion layer of 3PE steel pipe is a anti-corrosion structure composed of a bottom layer of epoxy powder, an intermediate layer of adhesive, and an outer layer of polyethylene composite. It has the characteristics of high mechanical strength and excellent electrical insulation performance.
200mm-1420mm anti-corrosion coating production line is used for anti-corrosion coating steel pipe with a larger diameter, which is more widely used in varieties of engineering construction, especially in the heating, gas, oil field.
This line can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating.

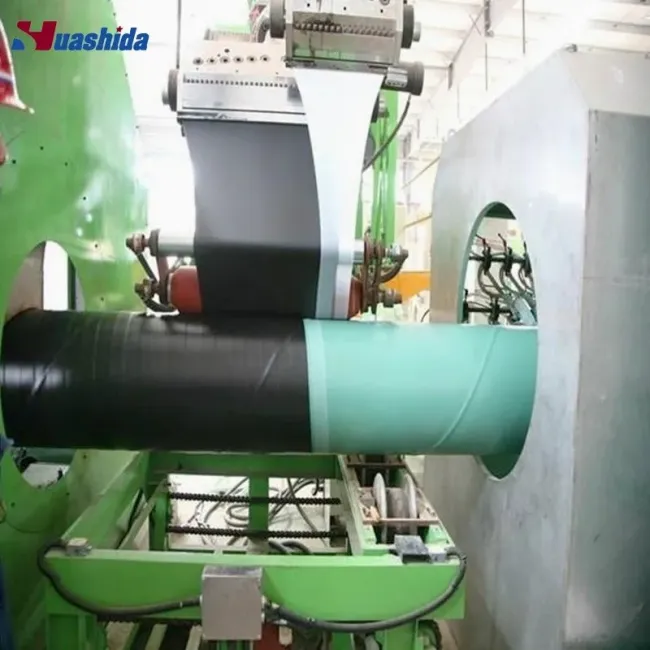

3 layer PE anti-corrosion coating consists of first FBE coating, middle adhesive layer and outer polyethylene layer.
The three-layer polyethylene anti-corrosion coating is advanced technology as the outer protective layer of buried pipe, widely used in the anti-corrosion of gas and oil transmission pipeline, urban gas supply, water supply pipe and other fluid transmission pipelines. 3 layer PE anti corrosion coating can strengthen the pipeline's mechanical properties with high electrical resistance, waterproof, wearable and anti-aging performance.
Technological processes

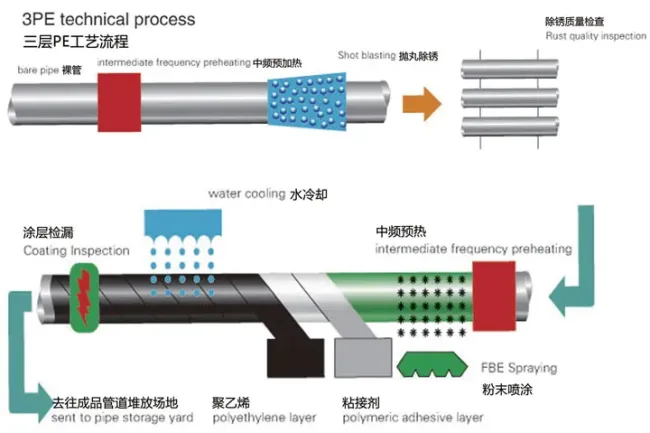

Upload pipes→pipes screw conveyor→rust removal of intermediate frequency heating→Epoxy powder coating→outer layer soli quid & polyethylene coating→cooling spray→pipes screw conveyor→grinding pipes, send→unload pipes
Main equipment

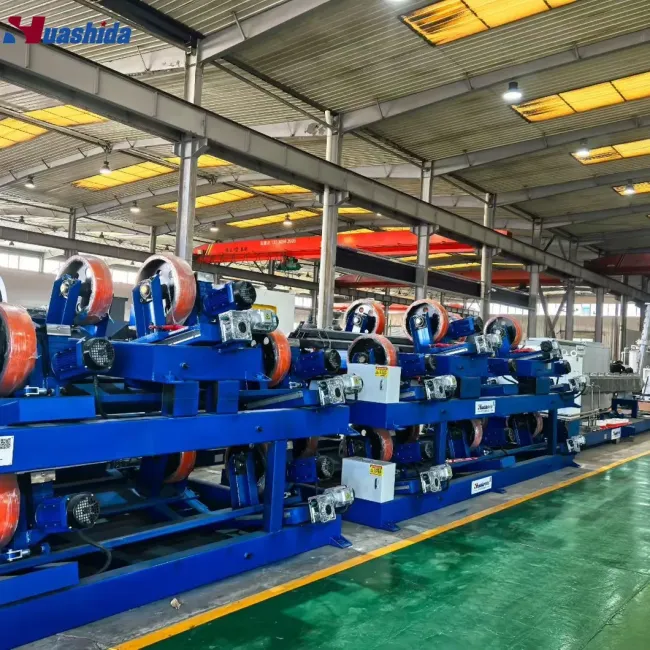

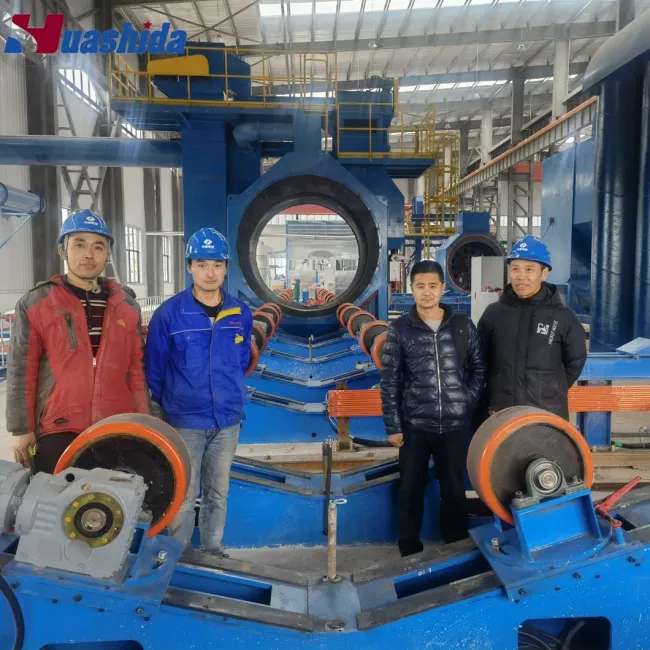

| Steel pipe outside shot blasting derusting operation line | |||
| No. | Description | Qty. | Remarks |
| 1 | Small diameter spiral transmission line | 12sets | |
| 2 | 426 External shot blasting derusting line | 1set | |

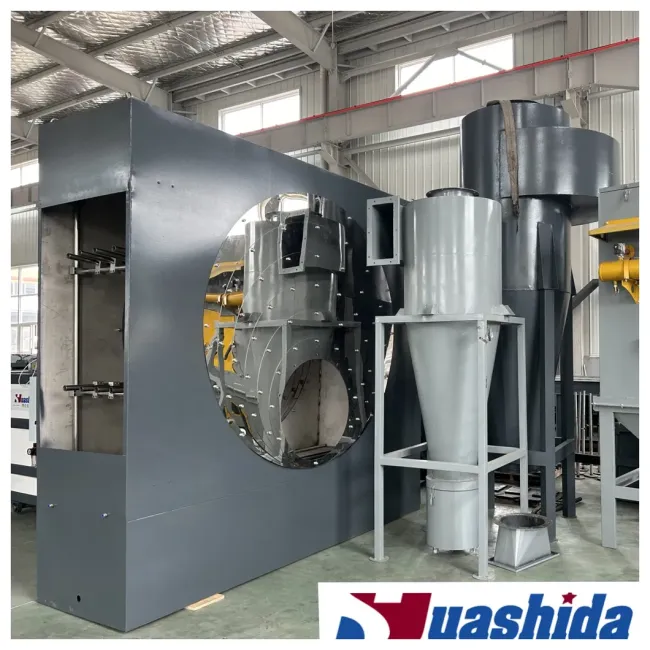

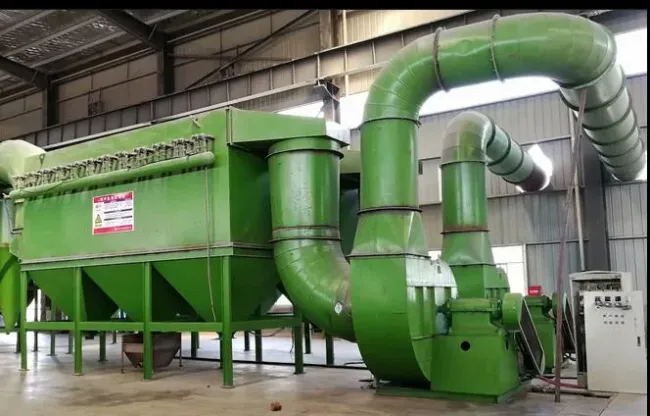

| 3 | Cyclone dust collector | 1set | |
| 4 | Bag dust collector | 1set | |
| 5 | Wind blower | 1set | |
| 6 | Elevator | 1set | |
| 7 | Shot-sand separator | 1set | |
| Internal blowing cleaning system | |||
| No. | Description | Qty. | Remarks |
| 1 | Inner blowing cleaning cart | 1set | |
| 2 | Inner blowing pipe towards cart | 1set | |
| 3 | Pneumatic elevator pipe turning device | 2sets | |
| 4 | Internal blowing dust collecting device | 1set | |
| 5 | Internal blowing dust catcher | 1set | |
| Coating & Wrapping 3PE production line | |||
| No. | Description | Qty. | Remarks |
| 1 | V type wheel conveyor | 21sets | |
| 2 | 2.5m haul-off machine | 1set | |

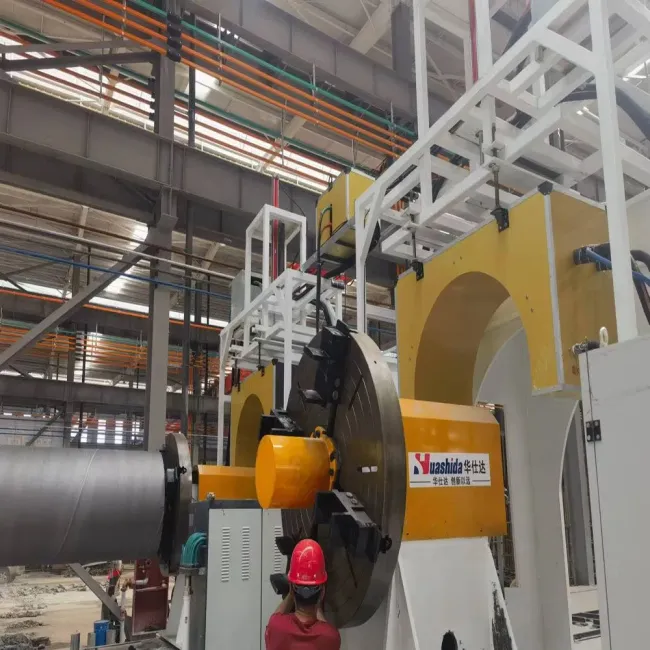

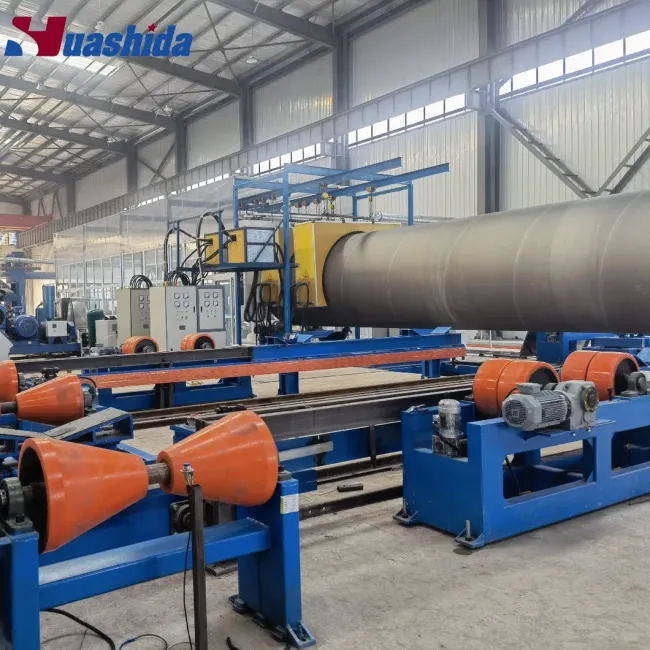

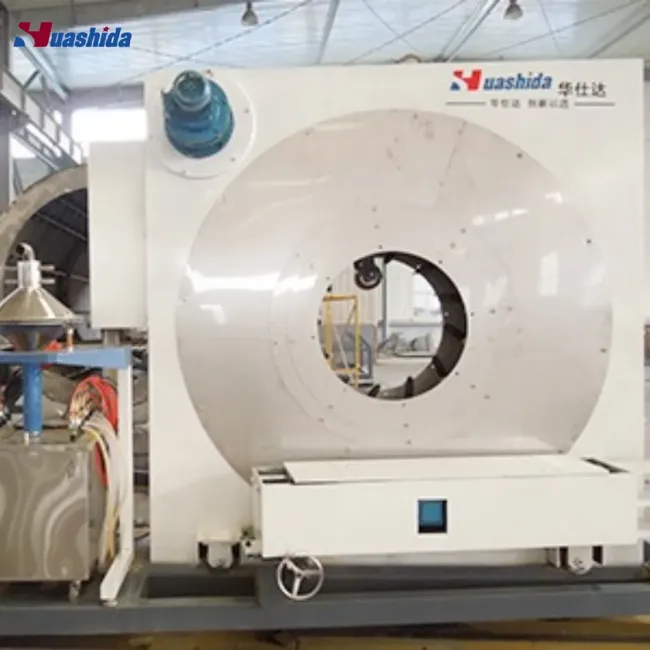

| 3 | Intermediate frequency heating system | 1set | |
| 4 | Epoxy spraying system | 1set | |
| 5 | AD glue extrusion system | 1set | |
| 6 | PE extrusion system | 1set | |
| 7 | Vacuum adsorption | 2sets | |

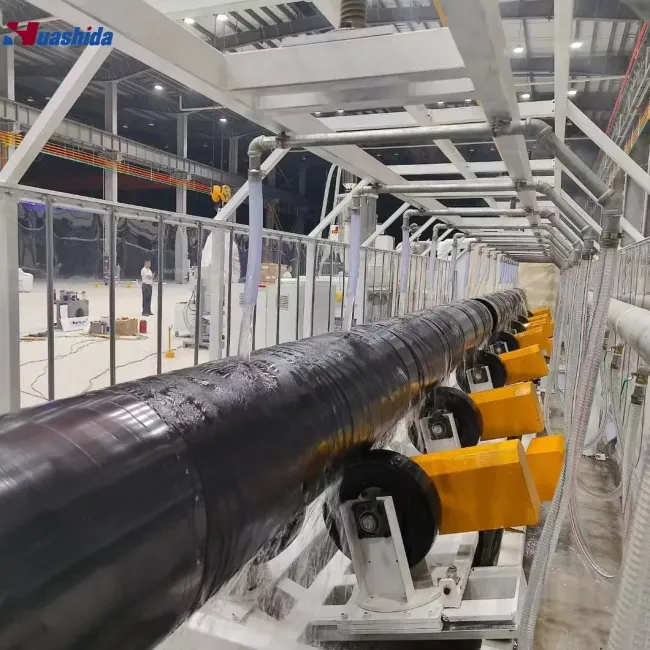

| 8 | Water cooling system | 1set | |
| 9 | Locating device | 2sets | |
| Platform system | |||
| No. | Description | No. | Remarks |
| 1 | Steel pipe up load platform | 1set | |
| 2 | Derusting transition platform | 1set | |
| 4 | Finished pipe storage system | 1set | |
| 5 | Air separating bag | 4sets | |
| 6 | Pulling pipe system | 8sets | |
| PE grooving system | |||
| No. | Description | Qty. | Remarks |
| 1 | Elevating pipe turner | 2sets | |
| 2 | PE grooving device | 2sets | |
Qingdao Huashida Machinery Co., Ltd. was established in 2003 and is a manufacturer specializing in thermal insulation and anti-corrosion equipment.We offer one-stop pipeline solutions.Focus on the global international market.The insulation pipe production lines and 3lpe Anti-Corrosion Coating line developed and manufactured by Huashida are widely used in the construction of municipal heating, sewage, water supply, natural gas and communication pipe networks, crude oil pipeline transportation, communication and agricultural irrigation and other fields.
