Medical Cooler Box Vaccine Blood Transport Box With Ice Brick

Price Negotiable
Price: Negotiable
MOQ: 10 Units
Delivery Time: 5-7 Working Days
Brand: Phefon
Product Description

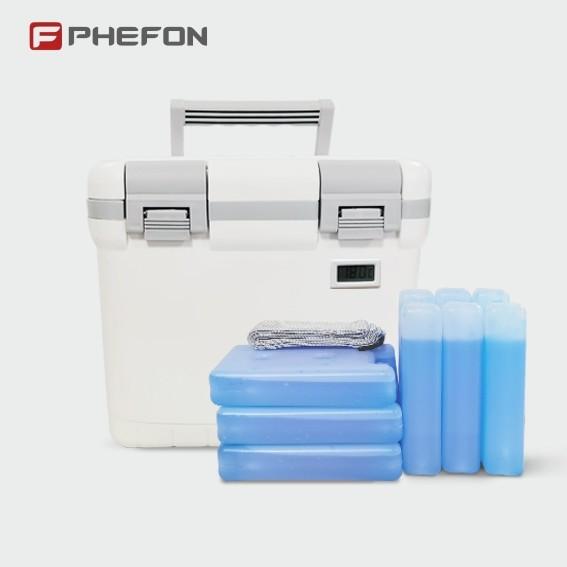

► Medical Cooler Box Vaccine Blood Transport Box With Ice Brick

(Model:FS-6L/10L/12L/18L/35L)



Medical Cooler Box, with good insulation material,specially designed to keep cold chain temperature with ice packs during transportation.

Used for: Vaccines,Insulin,Bio-pharmaceutical, Life Science and other Medical Products,IVD products and biological specimens,Selected fresh dairy products cold chain transportation.





► Features of the Medical Cooer Box:

1. Temperature Control: Medical cooler boxes are equipped with temperature control systems to maintain a specific temperature range, typically between +2°C to +8°C for vaccines and +15°C to +25°C,-10℃ to -25℃ for certain medications

2. Insulation: Cooler boxes are designed with high-quality insulation materials polyurethane foam to minimize heat exchange with the external environment. This insulation helps maintain a stable internal temperature and prevents sudden temperature fluctuations.

3.Cooling Mechanism: Medical cooler boxes utilize various cooling mechanisms, including ice packs, gel packs, or advanced refrigeration systems, to keep the internal temperature within the desired range.



► Specifications:

Items

FS-6L

FS-10L

FS-12L

FS-18L

FS-35L

Cold chain type

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Standard Cooler box

Capacity

6L

10L

12L

18L

35L

Weight Empity

1.95kg ±10%

2.4kg ±10%

2.93kg ±10%

2.8kg ±10%

4.5kg ±10%

External Surface material

PP

Internal lining

material

PP

Insulation material

PU(Polyurethane) CFC FREE FOAM

Insulation Thickness

≥40mm

≥45mm

≥40mm

≥25mm

≥25mm

External Diemnsion(mm)

325*235*250

370x280x298

425x262x305

425x262x305

570x305x365

Internal Dimension(mm)

240*140*165

270x173x203

325x170x225

363x203x244

475x245x270

Lid Type & Fixings

Unremovable

Unremovable

Unremovable

Unremovable

Unremovable

No.of Ice Packs Required

fixed ice packs / One set 0.4L ice packs

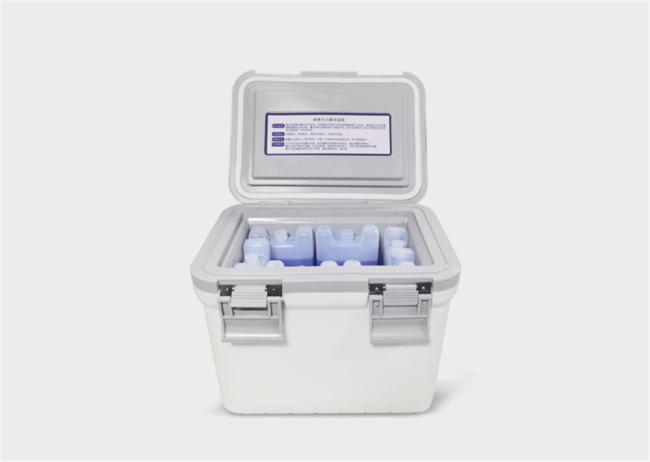

► Detailed Pictures:



How to use the medical cooler box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).

* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.

* Place the frozen ice packs into the cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.

* Close the lid.
Notes:
When not using the cooler box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.



FAQs:


1.Q: How can I get the cooler box sample?
    A: For those free samples, the freight are bill to the buyer, FEDEX,UPS,TNT or DHL are for your option. Let us have your corrispondent ID, we can launch the pick up for you. For bulk order or FCL order, we have experienced agency to support the complicated problem during the delivery, you just need to wait for the arrival of the goods at ease.


2.Q: What’s your advantage?
   A:1)Direct manufacture with our own high quality patent products with competitive price.
       2)We have professional R&D team, launch new designs each year and offer cold life performance validation for our clients.
       3)Our company is qualified by ISO9001, ISO13485,ISO45001,ISO 14001 and many of our products passed CE mark, SGS qualification.



3.Q: Is OEM available?

   A: Yes, customized sizes and logos are welcomed.
