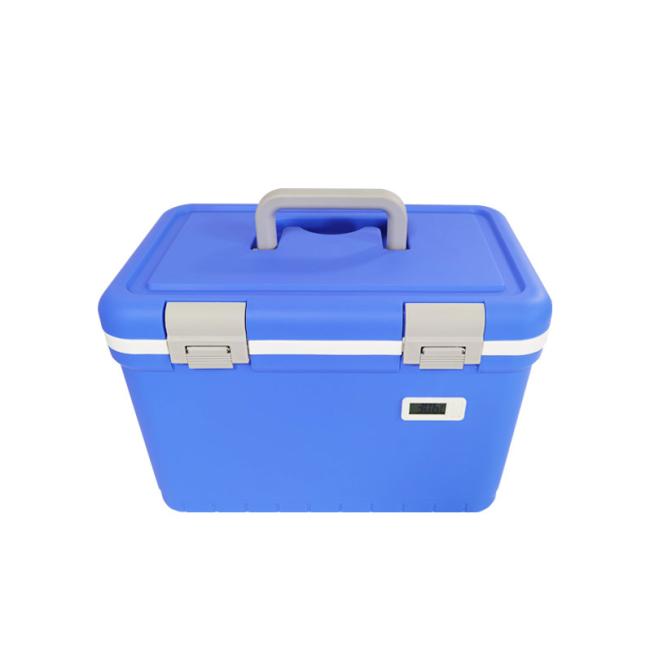

Phefon 12L Medical Cool Box With Thermometer Medicine Lab Cooling Storage
► Phefon 12L Medical Cool Box With Thermometer Medicine Lab Cooling Storage
(Model:FS-6L/10L/12L/18L/35L)
► Ice Cooler Box Application:
Portable medicine ice cooler boxes, are used to transport blood products, organs and that require stable temperatures to maintain their life saving and life giving properties.
Ideal For Transporting Medicines such as :
--Vaccines
--Insulin
--Breeding Programs
--Biopharmaceutical, Life Science and other Medical Products
--IVD products and biological specimens
--Selected fresh food, drink and dairy products
► Specifications:
Items |
FS-6L |
FS-10L |
FS-12L |
FS-18L |
FS-35L |
Cold chain type |
Standard Cooler box |
Standard Cooler box |
Standard Cooler box |
Standard Cooler box |
Standard Cooler box |
Capacity |
6L |
10L |
12L |
18L |
35L |
Weight Empity |
1.95kg ±10% |
2.4kg ±10% |
2.93kg ±10% |
2.8kg ±10% |
4.5kg ±10% |
External Surface material |
PP |
||||
Internal liningmaterial |
PP |
||||
Insulation material |
PU(Polyurethane) CFC FREE FOAM |
||||
Insulation Thickness |
≥40mm |
≥45mm |
≥40mm |
≥25mm |
≥25mm |
External Diemnsion(mm) |
325*235*250 |
370x280x298 |
425x262x305 |
425x262x305 |
570x305x365 |
Internal Dimension(mm) |
240*140*165 |
270x173x203 |
325x170x225 |
363x203x244 |
475x245x270 |
Lid Type & Fixings |
Unremovable |
Unremovable |
Unremovable |
Unremovable |
Unremovable |
No.of Ice Packs Required |
fixed ice packs / One set 0.4L ice packs |
||||
► Detailed Pictures:
► Features of the Cooler Box:
Multifunctional keep cold or warm cooler box
Humanized portable handle
Fixed ice bricks design
High density PU foam
Good sealing performance
Color/logo can be customized
► How to use the cooler box:
* Before using, place the ice packs into the freezer until they are fully frozen (about 24 hours).
* If the configuration you choose is empty Ice packs, fill clean water in the ice pack first,then well sealed, then follow No.1 step to frozen.
* Place the frozen ice packs into the cooler box in the positions indicated, and close the lid.
* When the temperature inside of the box reached the ideal temperature, open the lid and place the contents to be kept cold in the cold transport container.
* Close the lid.
Notes:
When not using the cold box, store the Ice Packs in the freezer please - then they will be ready for using just when you want them next time.
► Reliability:
The manufacturer has passed ISO13485, ISO9001,ISO14001,ISO45001 system certifications.
The vaccine cooler box have CE certification.
The coolant material have got MSDS.
The coolant material have got RoSH report by SGS,
The coolant material have certified by CNAS,DGM,suitable for any transportation way.
Certificates and Patents:
1.The manufacturer has passed ISO9001,ISO14001,ISO45001,ISO13485 system certifications.
2.The coolant material have got MSDS. The coolant material have got RoSH report by SGS,
3.The coolant material have certified by CNAS,DGM,suitable for any transportation way.
4.The cold box have CE certification.
FAQs:
What’s your advantage?
1)Direct manufacture with our own high quality patent products with competitive price.
2)We have professional R&D team, launch new designs each year and offer cold life performance validation for our clients.
3)Our company is qualified by ISO9001, ISO13485,ISO45001,ISO 14001 and many of our products passed CE mark, SGS qualification.
How can I get a sample and how long?
A: We welcome you order with trial quantity. If you want to buy 1 piece, will ship by DHL, Fedex or UPS.
